| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.9mm |
| Length | 1.3mm |
| Model | BZX584C36-HG3-08 |
| Mount Type | Surface |
| Series | BZX584C |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 200mW |
| Diode Configuration | Single |
| Test Current It | 2mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 36V |
| Zener Type | Small Signal |

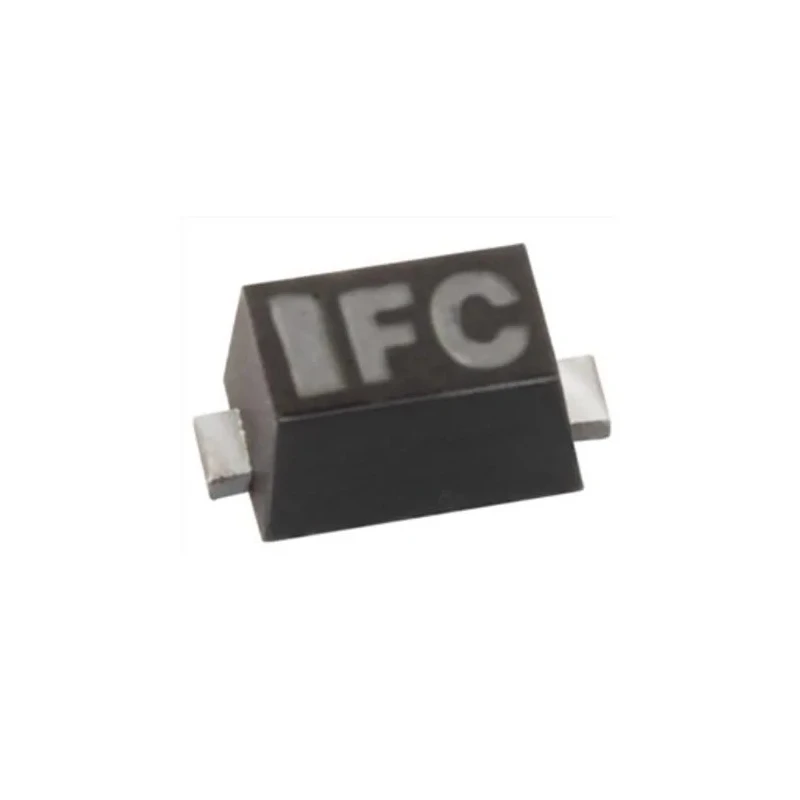

Vishay BZX584C36-HG3-08 small signal Zener diode is engineered for electronic applications requiring reliable voltage regulation at nominal 36 V. Encased in the compact SOD-523 surface mount package, it is ideal for space-constrained designs such as communication equipment, automotive electronics, and industrial control systems.
The diode supports a maximum power dissipation of 200 mW and possesses a 5% voltage tolerance, ensuring consistency in circuit operation. Its robust thermal performance allows operation up to 175°C, with a broad storage temperature range from -65°C to 150°C, suitable for harsh operating environments.
Designed to meet RoHS standards and the automotive AEC-Q101 qualification, this diode assures high quality and reliability for automotive and industrial uses. Additionally, the low maximum reverse leakage current of 50 nA minimizes power losses in sensitive circuits.
The compact 2-pin configuration with dimensions 1.3 mm length and 0.9 mm height facilitates easy placement on printed circuit boards (PCBs). Typical applications include voltage clamping, voltage reference, and regulation in power supplies and signal conditioning.
Designed for surface mount applications requiring precise voltage regulation. Features a 5% voltage tolerance for stable performance. Package dimensions are 1.3 mm length and 0.9 mm height. Maximum operating temperature of 175°C and storage range from -65°C to 150°C.
Constructed to meet RoHS compliance and automotive AEC-Q101 standards. Low reverse leakage current of 50 nA enhances efficiency. Test current rating is 2 mA for reliable operation. Small signal Zener type suitable for sensitive electronic circuits.
This Zener diode is essential for industrial, automotive, laboratory, and consumer electronic applications requiring dependable voltage stabilization and protection. Discover more products in the Vishay Zener diode range at EnvMart for your electronic component needs.
