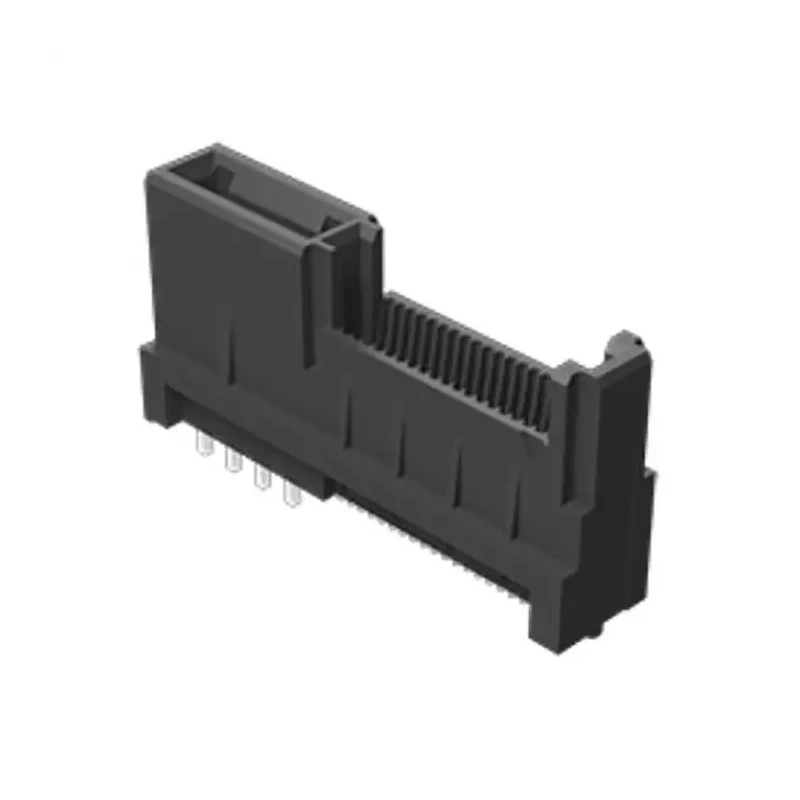

Samtec Right Angle Edge Connector Female, Surface Mount, 26-Contacts, 0.8 mm Pitch, 2 Row, Solder HSEC8-113-01-L-RA-L2

Free Delivery in India | Lowest Global Shipping Charges

Samtec Right Angle Edge Connector Female, Surface Mount, 26-Contacts, 0.8 mm Pitch, 2 Row, Solder HSEC8-113-01-L-RA-L2

Name: Samtec Right Angle Edge Connector Female, Surface Mount, 26-Contacts, 0.8 mm Pitch, 2 Row, Solder HSEC8-113-01-L-RA-L2
Brand: Samtec
SKU: 167272
Price: 7.36 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	240V
Brand	Samtec
Orientation	Right Angle
Current	2.6A
Model	HSEC8-113-01-L-RA-L2
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	HSEC8-113-01-L-RA-L2
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Card Slot	.062" (1.60 mm)
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Female
Connector Gender	Female
Card Type	PCIe
Card Thickness	1.6mm

Key Features

The connector supports a current rating of 2.6 A.
It has 2 rows of contacts to accommodate PCIe card thickness of 1.6 mm.
Contact plating is gold over beryllium copper alloy material for reliable conductivity.
Designed for operating temperatures ranging from -55°C to 125°C.
The termination type is solder, providing secure mechanical and electrical connection.
Mount type is surface mount suitable for PCB assembly.
Housing is made of durable liquid crystal polymer to withstand mechanical stress.

Product Description

Samtec HSEC8-113-01-L-RA-L2 is a high-performance right angle edge connector female designed for robust electronic and industrial applications. Featuring 26 gold-plated contacts arranged in 2 rows with a pitch of 0.8 mm, this surface mount connector supports PCIe card slot thickness of 1.6 mm. It is engineered to handle a current of 2.6 A and a voltage rating of up to 240 V, ensuring compatibility with standard electronic circuit requirements.

The connector's contact material is a beryllium copper alloy plated with gold to offer excellent conductivity and corrosion resistance. Its housing is constructed from liquid crystal polymer, providing durability and stability in demanding temperature ranges from -55°C to 125°C. The solder termination ensures secure attachment to printed circuit boards.

This edge connector features the Optional weld tab for enhanced mechanical strength and includes Samtec's Rugged Edge Rate® contact technology, supporting data rates of 28+ Gbps. It is suitable for industrial, electronic assembly, telecommunications, and computing environments requiring reliable high-speed connections.

Additional design options include a pass-through version, board locks, and cable latching features to enhance retention and mechanical stability during operation. This product is part of the HSEC8-113-01-L-RA-L2 series, designed to meet rigorous performance criteria for PCIe card interfacing.

Set contains 1 Pc Samtec HSEC8-113-01-L-RA-L2 Right Angle Edge Connector Female, Surface Mount, 26 Contacts, 0.8 mm Pitch, 2 Row, Solder Termination. The connector supports a current rating of 2.6 A. It has 2 rows of contacts to accommodate PCIe card thickness of 1.6 mm.

Contact plating is gold over beryllium copper alloy material for reliable conductivity. Designed for operating temperatures ranging from -55°C to 125°C. The termination type is solder, providing secure mechanical and electrical connection.

Mount type is surface mount suitable for PCB assembly. Voltage rating of the connector is 240 V, suitable for typical electronics applications. Housing is made of durable liquid crystal polymer to withstand mechanical stress.

Explore more high-quality connectors and electronic components on EnvMart.
