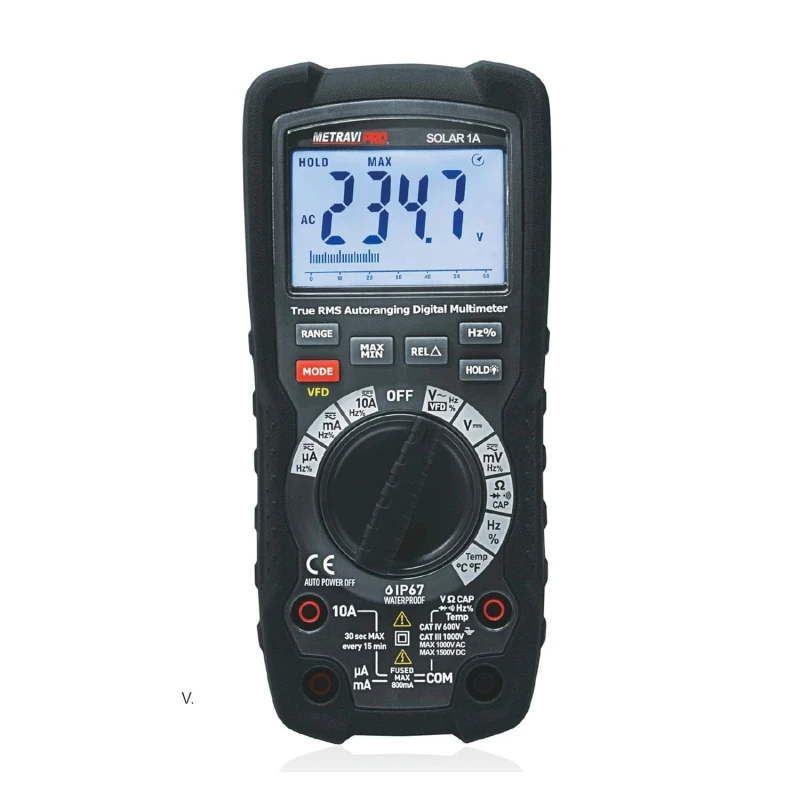

Metravi Industrial Multimeter for up to 1500 VDC with TRMS PRO Solar-1A
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi Pro Solar-1A Industrial Multimeter |
| Fuses | mA/μA |
| Operating Humidity | Max80%@31°C |
| Display | 6000-count backlit LCD |
| Diode Test | 0.9mA max test current |
| Brand | Metravi |
| Operating Temperature | 5–40°C(41–104°F) |
| Storage Temperature | -20–60°C(-4–140°F) |
| Battery | One 9V(NEDA1604)battery |
| Model | Pro Solar-1A |
| Enclosure | Double-moulded |
| Measurement Rate | 3 readings/sec |
| Auto Power Off | After ≈15 min (disable feature available) |
| Input Impedance | Greater than 10MΩ VDC & Greater than 10MΩ VAC |
| Storage Humidity | Less than 80% |
| Low Battery Indication | Battery symbol shown below operating voltage |
| Polarity | Automatic (– sign for negative) |
| Crest factor | ≤3 at full scale up to 500V |
| Shock Resistance | 2m(6.5ft)drop-tested |
| Overrange Indication | “OL” displayed |
| Continuity Check | Audible signal below≈50Ω |
| Operating Altitude | ≤2000m(7000ft) |
| AC Response | True RMS |
| AC Voltage Bandwidth | 45Hz–1kHz |
| A range | 10A/1000V ceramic fast blow |
Key Features
- T-RMS Auto-Ranging Multimeter
- IP67 Standard : Water and Dust Proof
- VFD Function
- MAX / MIN Records
- Relative Measurements
- Data Hold
- 6000 Counts Back-lit LCD Display
- Auto Power-off
- Confirms to CAT IV 600V, CAT III 1000V
- 1500V DC Measurement for PV Applications
- Fast Blow Fuse Protection
- No need to open-up the instrument for fuse replacements
Product Description
The Metravi PRO Solar-1A is a heavy-duty digital multimeter capable of measuring up to 1500 VDC, making it ideal for solar PV, battery banks, and high-voltage industrial applications. It offers True RMS measurement, resistance, frequency, continuity, and temperature functions with exceptional accuracy. Built for safety and performance, it is CAT IV 1000V and CAT III 1500V rated, ensuring maximum protection in high-voltage environments. Its large backlit LCD, data hold, and low battery indicator enhance user experience. The Solar-1A is an essential tool for solar engineers and field service professionals dealing with high-voltage DC systems.
Available on EnvMart, these Multimeters are built for precision and reliability, ideal for both hobbyists and professionals working with electrical measurements. Metravi Multimeters are recognized for their accuracy, rugged design, and feature-rich options—trusted by engineers and technicians across various industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Metravi Pro Solar-1A can measure up to 1500 VDC, making it suitable for high-voltage applications.
It is rated CAT IV 1000V and CAT III 1500V, providing maximum protection in high-voltage environments.
It has a 6000-count backlit LCD display, enhancing visibility in various lighting conditions.
The operating temperature range is from 5 to 40°C (41 to 104°F).
Yes, this model features a data hold function that allows users to retain measurement readings on the display.
The measurement rate is 3 readings per second, which allows for quick data acquisition.
It operates on one 9V battery (NEDA1604), which is included in the package contents.
The input impedance is greater than 10MΩ for both VDC and VAC measurements.
The maximum operating humidity is 80% at 31°C, ensuring reliable performance in various environments.
It includes an audible signal for continuity checks below approximately 50Ω, aiding in quick diagnostics.
The storage temperature range is from -20 to 60°C (-4 to 140°F), allowing for safe storage in diverse conditions.
The True RMS feature allows for accurate AC voltage measurements, even in non-sinusoidal waveforms, enhancing measurement reliability.
