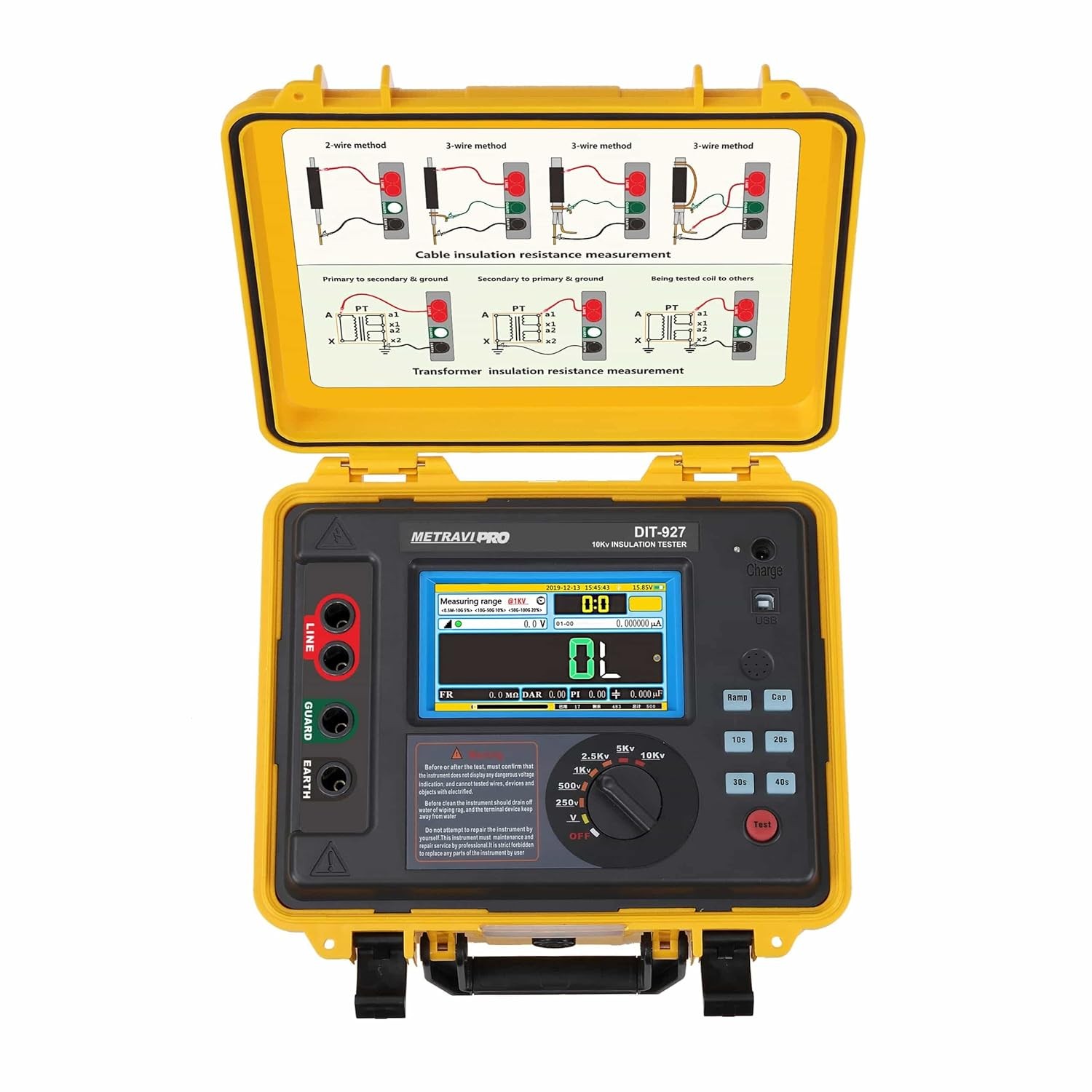

Metravi 10kV High Voltage Insulation Resistance Tester PRO DIT-927

Name: Metravi 10kV High Voltage Insulation Resistance Tester PRO DIT-927
Brand: Metravi
SKU: ADSJM
Price: 657.68 USD
Availability: InStock



SKU ADSJM Category Insulation Testers Brand Metravi

Specifications

Country of Origin	India
Package Contents	Metravi PRO DIT-927 10kV High Voltage Insulation Resistance Tester / Host / High Voltage Test Lead / Test Lead (green) / Test Lead (black) / Alligator Clip / Hook / USB Communication Cable / Software CD / Carrying Case
Brand	Metravi
Power Supply	Rechargeable lithium battery pack 5.2Ah
Working Environment	-20°C~50°C 80%RH
Model	DIT-927
Protection level	Closed case IP65/Open case IP40
Insulation resistance	50MΩ(1000V between test circuit and shell)
Meter Weight	4400g(including battery)
Voltage Test Accuracy	±5%rdg±3V
Output short circuit current	≥5mA
Output Voltage Accuracy	(5%~10%)±10V
Rated Voltage	250V/500V/1000V/2500V/5000V/10kV
Insulation Resistance Range	0.50MΩ~10.00TΩ
Meter Dimension	280mm×260mm×160mm
Withstand Voltage	AC3kV 50Hz 1min(between test circuit and shell)
Suitable Safety Standard	IEC61010-1/IEC61326-1
Polarization Index Test	Yes
Dielectric Absorption Ratio Test	Yes
Filtered Resistance Test Mode	10s/20s/30s/40s(4 selections)
Voltage Test Range	AC10V~700V/DC10V~1000V
Current Test Range	0.01nA~5mA
Current Test Accuracy	±5%rdg±0.5mA
Test Timer	Automatic record 0s~9999s

Key Features

Max Output Voltage 10KV
Max Test Resistance 5T Ω
Max Short Circuit Current 5mA
Polarisation Index Test (PI)
Dielectric Absorption Ratio Test (DAR)
Ramp Test Mode (RAMP)
Voltage monitor function – automatically monitor live voltage of the test object.
Test timer function – automatically record test time.
Automatic discharge function – after the test automatically releases the charge of the test object.
Store function – automatically stores 1000 groups of real-time test data with test date, time and timing.
Upload function – the recorded data can be uploaded to the computer using USB communication cable for data and statistical analysis.

Product Description

Metravi PRO DIT-927 is a 10kV insulation resistance tester built for high-voltage applications. It delivers reliable testing on transformers, generators, switchgear, and cables. With advanced filtering, real-time graphical results, and large data storage, it supports industrial-grade diagnostics. The backlit display and intuitive controls simplify field operation. It meets IEC standards for high-voltage insulation testing and includes multiple test modes, timer functions, and protective circuits. The DIT-927 is essential for utility engineers, electrical contractors, and preventive maintenance teams handling critical power systems.

Available on EnvMart, these Insulation Testers are essential tools for verifying the integrity of electrical insulation in wiring, motors, and equipment—critical for ensuring operational safety and efficiency. Metravi Insulation Testers are respected for their high voltage testing capability, accuracy, and rugged design, making them a top pick for electrical professionals and maintenance engineers.
