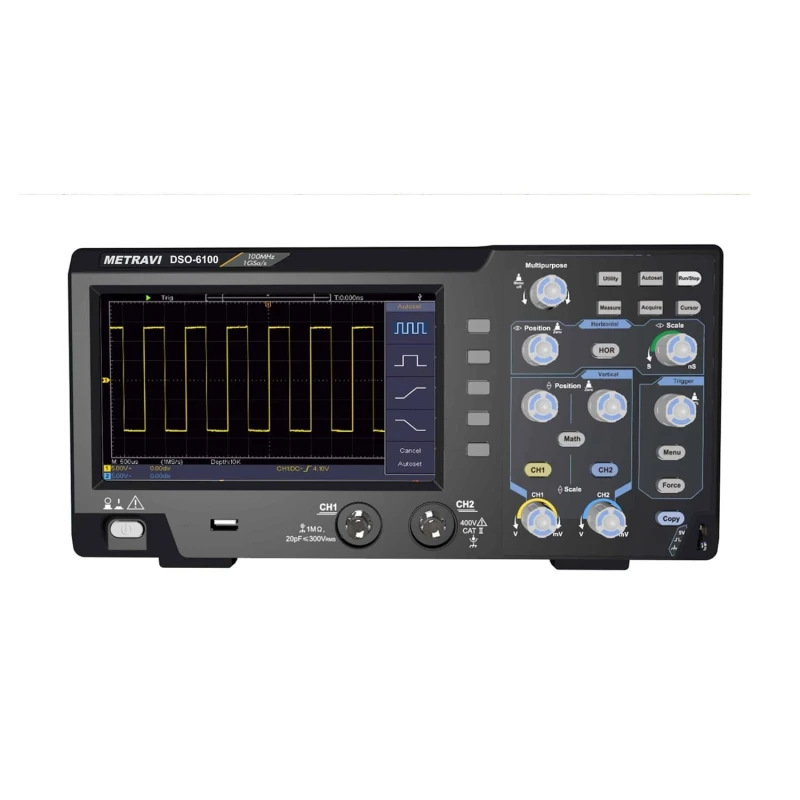

Metravi 100 MHz, Colour Display Digital Storage Oscilloscope DSO-6100
Specifications
| Country of Origin | India |
|---|---|
| Channel Isolation | 50Hz |
| Package Contents | Metravi DSO-6050 Digital Storage Oscilloscope |
| Max Input Voltage | 400V(PK-PK DC+AC) |
| Power Consumption | Less than 15W |
| Display | 7" Colour LCD(800×480px) |
| Brand | Metravi |
| Power Supply | 100–240V AC 50/60Hz CAT II |
| Dimensions | 301×152×70mm |
| Model | DSO-6100 |
| Weight | 1.1Kg |
| Bandwidth | 100MHz |
| Communication | USB Host/Device |
| Input Impedance | 1MΩ±2%//20pF±5pF |
| Sample Rate | 1GS/s |
| Channels | 2 |
| Record Length | 10K |
| Fuse | 2A T-class 250V |
| Trigger Mode | Auto/Normal/Single |
| Input Coupling | DC/AC/GND |
| Vertical Resolution | 8 bits |
| DC Gain Accuracy | ±3% |
| Trigger Type | Edge/Video |
| Rise Time | ≤7ns |
| Frequency Counter | Yes |
| Trigger Level | ±5div |
| Horizontal Scale | 2ns/div–1000s/div(step1–2–5) |
| Vertical Sensitivity | 5mV/div–5V/div |
| Cursor Measurement | ΔV/ΔT |
| Probe Attenuation | 1X/10X/100X/1000X |
| Lf Response(Ac-3Db) | ≥10Hz |
| Sample Rate Accuracy | ±100ppm |
| Interpolation | sin(x)/x |
| Video Standards | NTSC/PAL/SECAM |
| Math Functions | +/−/×/÷/Invert/FFT |
| Waveform Storage | 16 waveforms |
Key Features
- Electronic circuits debugging
- Circuit testing
- Designing & Manufacturing
- Education & Training
- Automobile maintenance & designing
- Bandwidth : 50MHz - 200MHz
- 2-Channel
- Sample rate : 1GS/s
- Ultra-thin body
- 7 inch high resolution LCD
- SCPI and LabVIEW supported
Product Description
Metravi DSO-6100 Digital Storage Oscilloscope is a powerful and versatile testing instrument designed for accurate signal analysis in electronics, research, and industrial applications. Featuring a 100MHz bandwidth and a high-speed 1GS/s sampling rate, this dual-channel oscilloscope delivers precise waveform capture and real-time signal monitoring. The large 7-inch high-resolution color LCD ensures clear visualization, while advanced functions such as FFT analysis, waveform math operations, and automatic measurements enhance diagnostic capabilities. With multiple trigger modes, edge and video triggering, and a wide time base range, it is ideal for analyzing complex signals. The device supports waveform storage, USB connectivity, and a built-in frequency counter for added convenience. Designed for reliability and ease of use, the Metravi DSO-6100 is perfect for laboratories, education, service centers, and electronic troubleshooting, offering high performance, accuracy, and efficiency in one compact solution. Available on EnvMart, these Oscilloscopes provide detailed visualization of electrical signals, essential for diagnostics, troubleshooting, and design in electronics and engineering. Metravi Oscilloscopes stand out for their accuracy, intuitive interface, and robust performance—ideal for labs, R&D, and field applications alike.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Metravi DSO-6100 has a bandwidth of 100 MHz.
The maximum input voltage for the DSO-6100 is 400V (PK-PK DC+AC).
This model features a sample rate of 1 GS/s.
The oscilloscope is equipped with 2 channels.
It has a 7-inch color LCD with a resolution of 800×480 pixels.
The dimensions of this unit are 301×152×70 mm.
This oscilloscope weighs 1.1 kg.
It requires a power supply of 100–240V AC at 50/60Hz, CAT II.
The oscilloscope supports edge and video triggering modes.
Yes, it can store up to 16 waveforms.
The vertical sensitivity of the DSO-6100 ranges from 5 mV/div to 5 V/div.
It features USB host/device communication capabilities.
