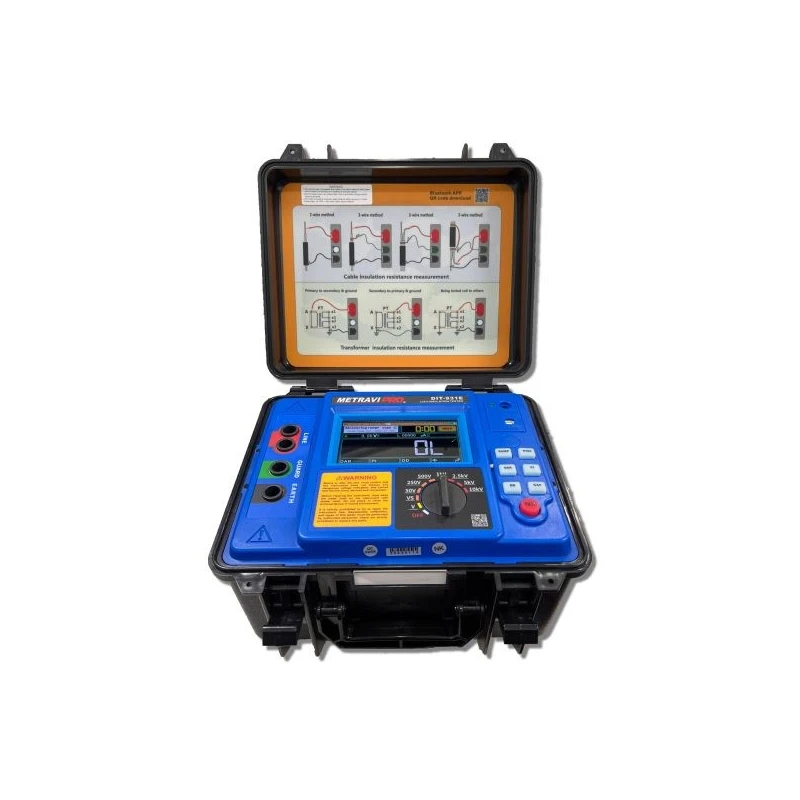

Metravi 10kV High Voltage Digital Insulation Tester PRO DIT-930E
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PRO DIT-931E Digital Insulation Tester |
| Resolution | 0.01MΩ |
| Accuracy | ±3%rdg±5dgt |
| Power Consumption | Standby30mA |
| Resistance Range | 0.01MΩ–35TΩ |
| Display | 4-digit large LCD with controllable gray backlight |
| Brand | Metravi |
| Power | 12V Rechargeable Battery |
| Dimensions | 240×188×85mm |
| Model | DIT-930E |
| Storage | -15°C–55°C Less than 90%RH |
| Weight | 2.72kg(including battery) |
| Category | CAT III 1000V |
| Safety Standards | IEC61010-1 |
| Insulation resistance | ≥50MΩ(between test line & housing) |
| Functions | Insulation Resistance/Voltage/Current/Capacitance Test |
| Operating Conditions | -10°C–50°C Less than 85%RH |
| Data Storage | 500 groups(“FULL” indicator) |
| Low Battery | Indicator display |
| USB interface | Data upload & monitoring via software |
| Alarm Function | Audible/visual when exceeding preset limit |
| Pressure Resistance | AC3kV/50Hz/1min |
| Auto Shutdown | After 15 minutes of inactivity |
| Overflow Display | “OL” symbol indication |
| Data Review | “READ” symbol function |
| Test Leads | 3m red rod |
| Short-Circuit Current | ≥6mA |
| Absorption Ratio & Polarization Index | Available |
| Rated Applied Voltage | 250V/500V/1000V/2500V/5kV/10kV |
Key Features
- Insulation resistance range: 0.50MΩ ~ 20.0TΩ
- Rated Voltage: 50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV
- Short Circuit Current: ≥7mA
- Output Voltage Accuracy: (5% ~ 10%) ±10V.
- Max short circuit current: 7mA
- Insulation Resistance Range and Accuracy:
Product Description
Metravi PRO DIT-930E is a 10kV digital insulation resistance tester that measures up to 2TΩ with advanced diagnostic functions like PI, DAR, and step voltage. It features automatic discharge, user-defined voltage steps, and real-time test monitoring. The tester includes USB output, internal storage, and a rugged IP-rated housing, making it suitable for outdoor and industrial use. Designed for professionals in power generation, substations, and electrical asset maintenance.
Available on EnvMart, these Insulation Testers are essential tools for verifying the integrity of electrical insulation in wiring, motors, and equipment—critical for ensuring operational safety and efficiency. Metravi Insulation Testers are respected for their high voltage testing capability, accuracy, and rugged design, making them a top pick for electrical professionals and maintenance engineers.
