Infineon IGBT Module 450 A 1200 V 11-Pin AG-ECONOD Surface Mount FF450R12ME7B11BPSA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon IGBT Module 450 A 1200 V 11-Pin AG-ECONOD Surface Mount FF450R12ME7B11BPSA1

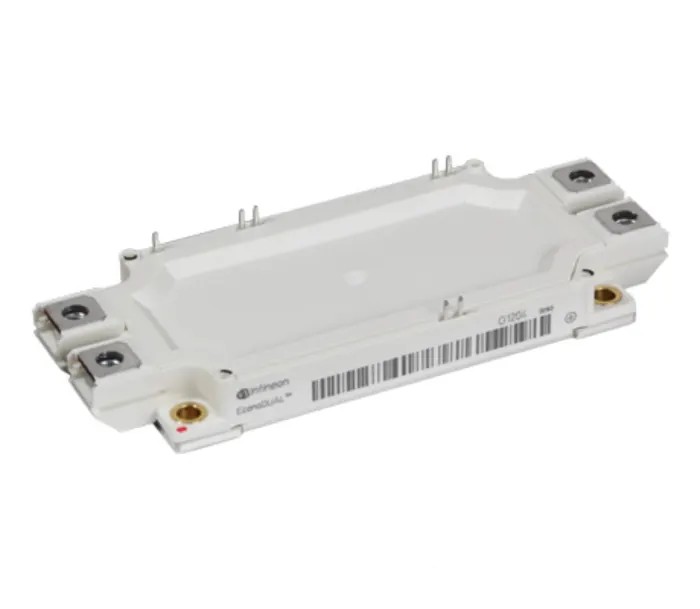

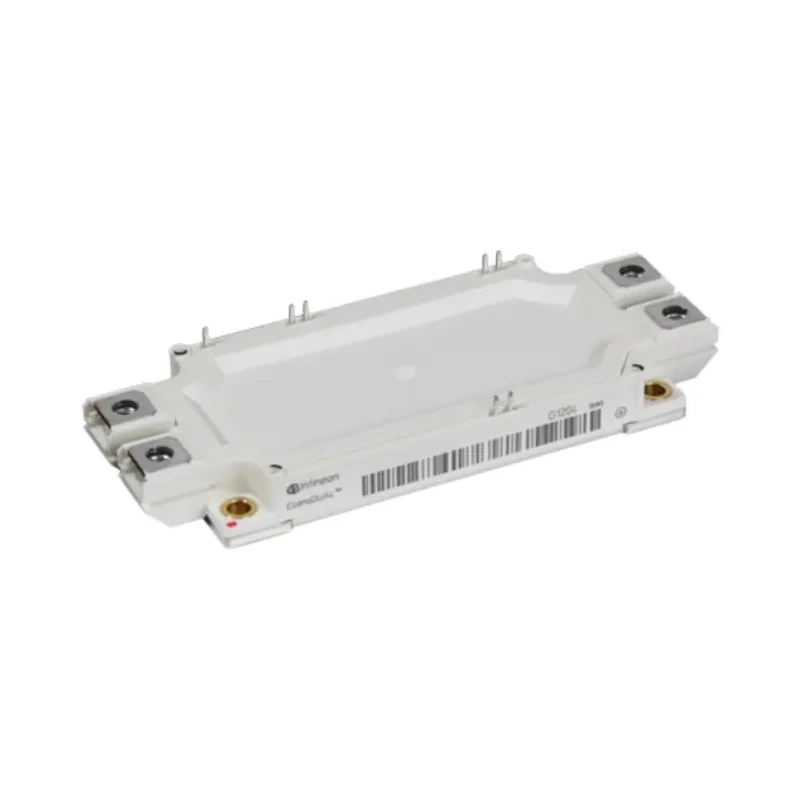

Name: Infineon IGBT Module 450 A 1200 V 11-Pin AG-ECONOD Surface Mount FF450R12ME7B11BPSA1
Brand: Infineon
SKU: 166734
Price: 195.17 USD
Availability: InStock



Category IGBT Module Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	20.5mm
Length	152mm
Model	FF450R12ME7B11BPSA1
Width	62.5mm
Mount Type	Surface
Series	FF450R12ME7_B11
Maximum Operating Temperature	175°C
Package Type	AG-ECONOD
Minimum Operating Temperature	-40°C
Standards/Approvals	IEC 60747, 60068, 60749
Pin Count	11
Maximum Continuous Collector Current Ic	450A
Maximum Collector Emitter Voltage Vceo	1200V
Maximum Collector Emitter Saturation Voltage VceSAT	1.75V
Maximum Power Dissipation Pd	20mW
Maximum Gate Emitter Voltage VGEO	20 V
Number of Transistors	2

Key Features

Features dual TRENCHSTOP IGBT7 transistors allowing high power density operation.
Includes emitter controlled 7 diode, NTC, and PressFIT contact technology for reliable connections.
Supports a maximum continuous collector current of 450 A and collector-emitter voltage of 1200 V.
Operates efficiently with a maximum power dissipation of 20 mW and saturation voltage of 1.75 V.
Designed for robust performance within -40°C to 175°C operating temperature range.
Standard housing with isolated base plate ensures safety and ease of integration.
Compliant with IEC 60747, 60068, and 60749 industry standards for quality and reliability.

Product Description

Infineon FF450R12ME7B11BPSA1 is a high-performance IGBT module designed for demanding power applications. It features dual TRENCHSTOP IGBT7 transistors with emitter controlled 7 diode, NTC sensor, and advanced PressFIT contact technology, offering enhanced interconnection reliability suitable for press-in and soldering processes.

This module supports a maximum continuous collector current of 450 A and a maximum collector-emitter voltage of 1200 V, making it ideal for industrial, automotive, and power electronics use cases. With a maximum power dissipation of 20 mW and a collector-emitter saturation voltage of 1.75 V, it provides efficient switching performance within a wide operating temperature range from -40°C to 175°C.

The device comes in an 11-Pin AG-ECONOD package with a surface mount design, featuring a standard housing and an isolated base plate for enhanced safety and ease of installation. Its dimensions are 152 mm in length, 62.5 mm in width, and 20.5 mm in height, accommodating compact system designs.

Compliant with IEC 60747, 60068, and 60749 standards, this IGBT module ensures reliability and robustness under industrial conditions. Though not automotive certified, it meets stringent semiconductor quality criteria for general power module applications.

Dual TRENCHSTOP IGBT7 transistors enable high power density and switching efficiency. Incorporates emitter controlled 7 diode, NTC, and PressFIT technology for enhanced connection reliability. Max continuous collector current of 450 A at 1200 V max collector-emitter voltage.

Surface mount, 11-pin AG-ECONOD package with isolated base plate and standard housing. Operational temperature range from -40°C to 175°C supports harsh environments. Complies with IEC 60747, 60068, 60749 standards ensuring industrial-grade quality.

This Infineon IGBT Module is suited for applications in industrial automation, power conversion, motor drives, and other high power electronic systems. Explore our wide range of semiconductor components to find compatible modules and design tools for your projects at EnvMart.
