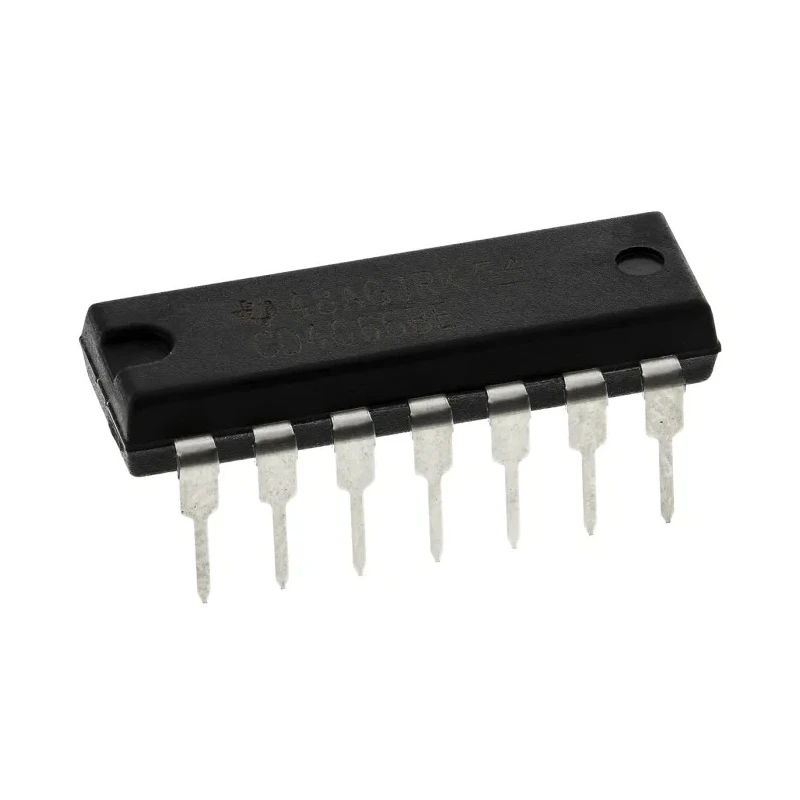

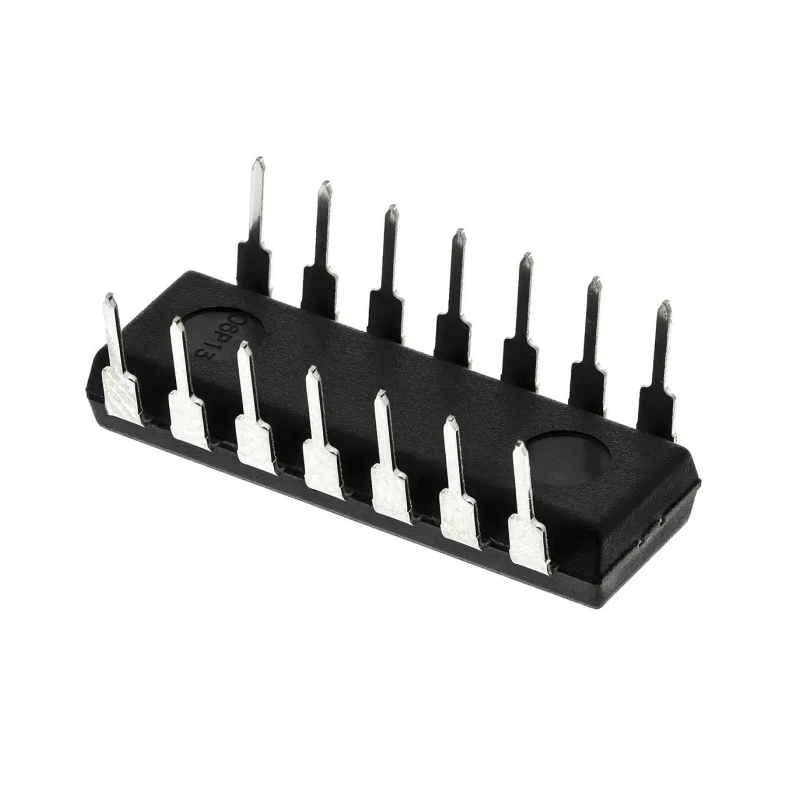

Texas Instruments Analogue Switch 4 CMOS Quad SPST 14-Pin PDIP CD4066BE

Texas Instruments CD4066BE is a high-performance analogue switch featuring 4 CMOS-based single-pole single-throw (SPST) switches within a 14-pin PDIP package. The device belongs to the 4000 series CMOS logic family, widely used in diverse electronic applications requiring reliable and low-power analogue signal switching.

This analogue switch operates efficiently across a broad voltage supply range from 3 volts up to 18 volts, making it suitable for various power conditions encountered in industrial and consumer electronics. The maximum on-state resistance of 1.3 kilo-ohms ensures minimal signal loss during switching operations, enhancing signal integrity.

The device supports a wide operating temperature range from -55°C to 125°C, providing robustness required for harsh environments including industrial automation, instrumentation, and control systems. Its through-hole 14-pin PDIP package facilitates easy PCB mounting and prototyping.

As a member of the CMOS logic family, the CD4066BE delivers low power consumption and high noise immunity. It is RoHS compliant, meeting regulatory requirements for environmental safety.

Operates on supply voltage from 3V to 18V. Contains 4 independent analogue switches per chip. Low on-state resistance (max 1.3kΩ) ensures high signal quality. Wide temperature rating (-55°C to 125°C) supports industrial applications.

14-pin PDIP package suitable for through-hole mounting. Complies with RoHS environmental standards. Compact dimensions: length 19.3 mm, width 6.35 mm, height 4.57 mm. Compatible with multiplexers, demultiplexers, and signal routing circuits.

This analogue switch is ideal for applications in industrial automation, laboratory equipment, control systems, and electronic instrumentation where precise and reliable analogue signal control is critical. It supports multiplexing and demultiplexing tasks as well as signal gating in complex electronic assemblies.

The CD4066BE enhances electronic designs by providing CMOS-based switch functionality with low power consumption and wide voltage compatibility. Its robust parameters enable integration in a broad scope of electrical and electronic systems.

Choose Texas Instruments CD4066BE for dependable analogue switching solutions in commercial, industrial, and laboratory environments. Explore additional semiconductor products and components at EnvMart for comprehensive electronic design support.
