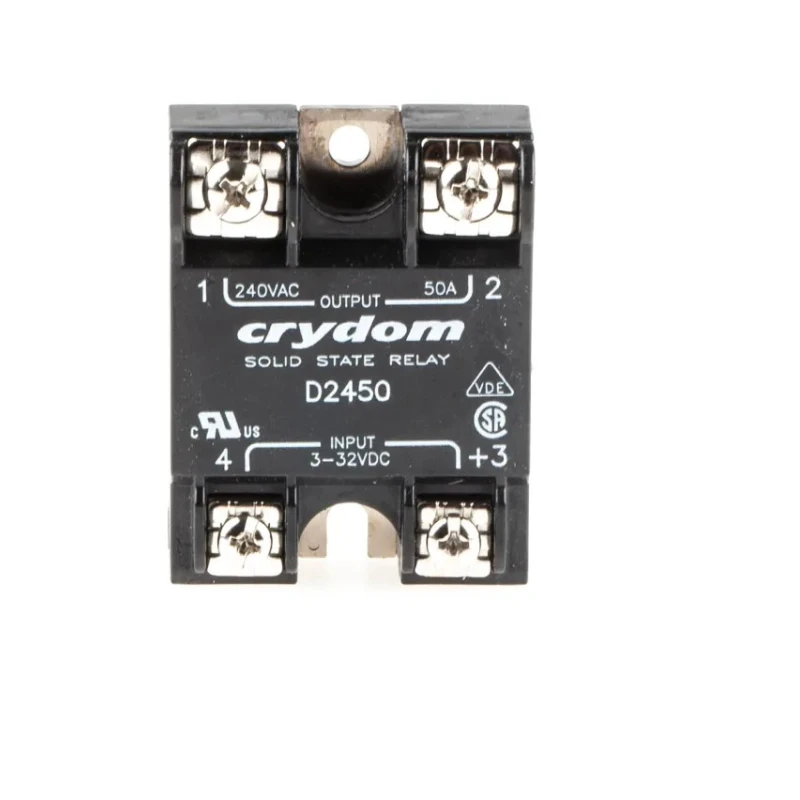

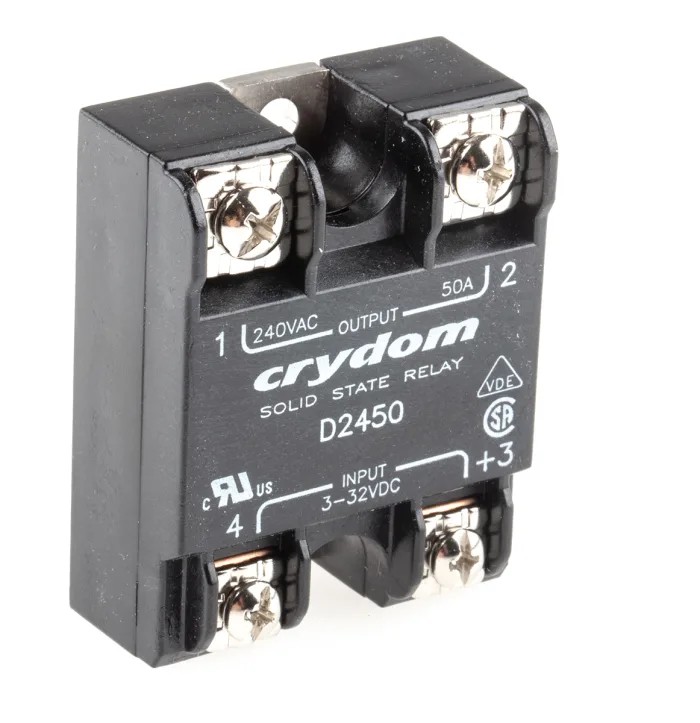

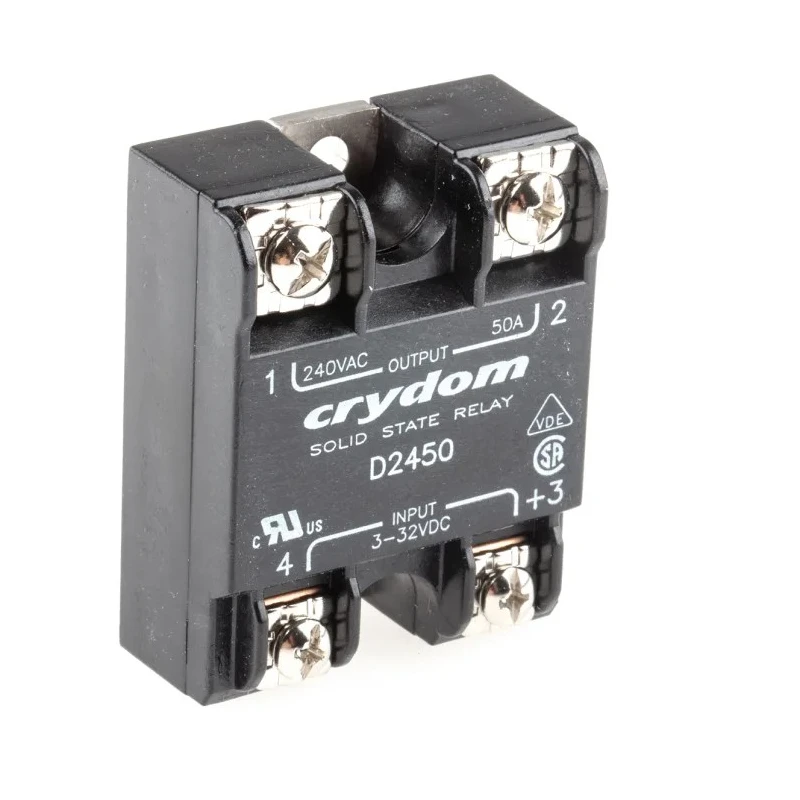

Crydom D2 Series Solid State Relay, 50 A Load, Panel Mount, 280 V AC Load, 32 V DC Control D2450

Crydom D2450 Solid State Relay is engineered to provide efficient and durable circuit switching solutions in industrial, laboratory, HVAC, and manufacturing settings. This panel mount relay supports a maximum load current of 50 A and a wide AC load voltage range from 24 V to 280 V, making it suitable for controlling motors, heating elements, and other high-power devices.

Featuring an input control voltage spanning from 3 V to 32 V DC, this SSR offers flexible compatibility with diverse control systems. Its zero cross switching capability minimizes electrical noise and reduces stress on connected loads, thereby enhancing system longevity.

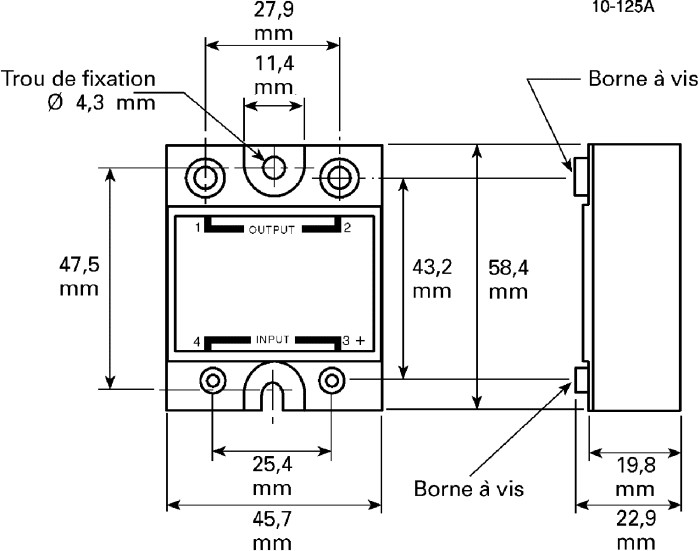

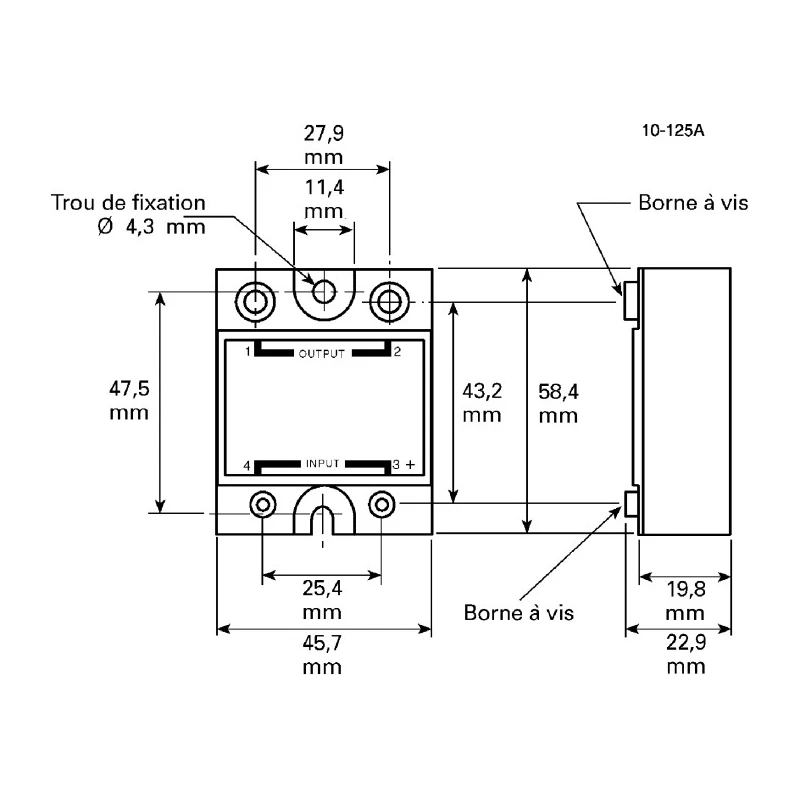

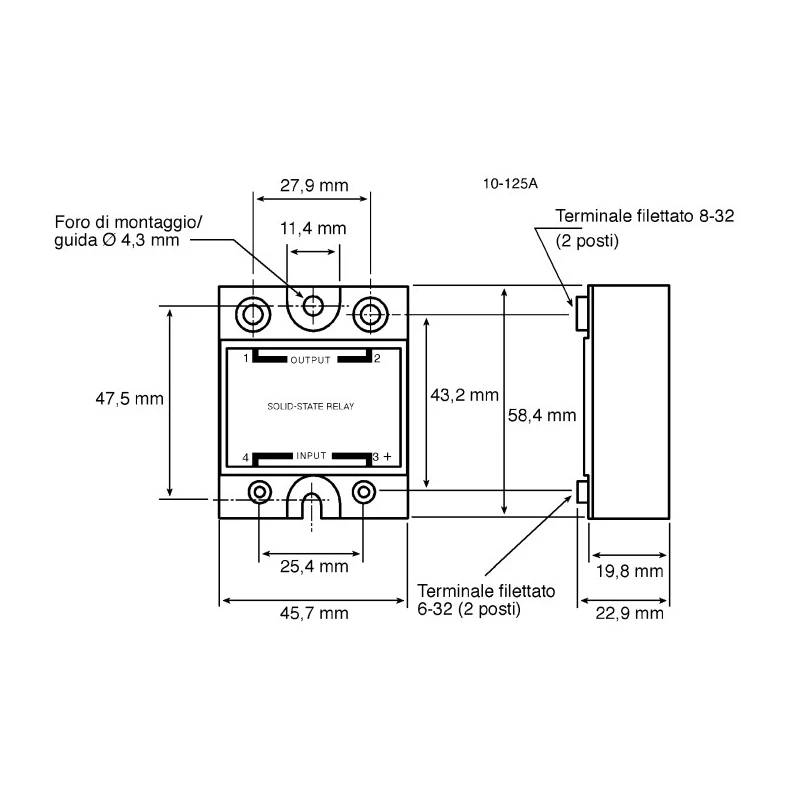

The relay is designed with a flame-retardant housing and an SCR output type, delivering robust performance and safety. Compact in size, it measures 58.4 mm in length, 22.6 mm in width, and 23 mm in height, enabling easy panel mounting and integration into existing control panels or machinery.

Operating reliably within temperature extremes from -40°C to 80°C, the D2450 relay is well-suited for demanding industrial environments. Its construction includes pre-assembled SEMS screws and washers along with anti-rotation barriers, ensuring secure mechanical installation.

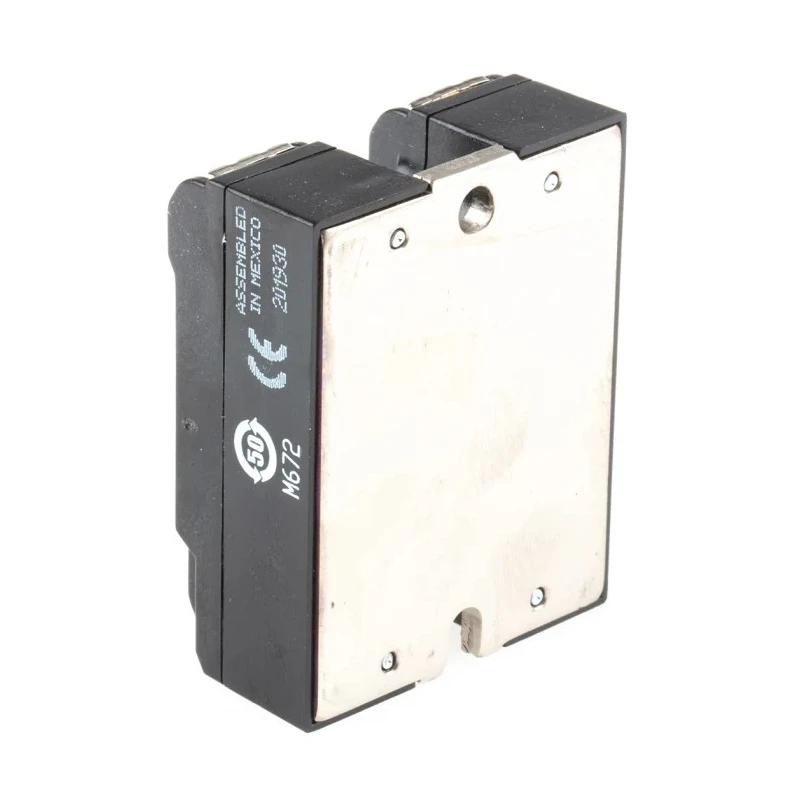

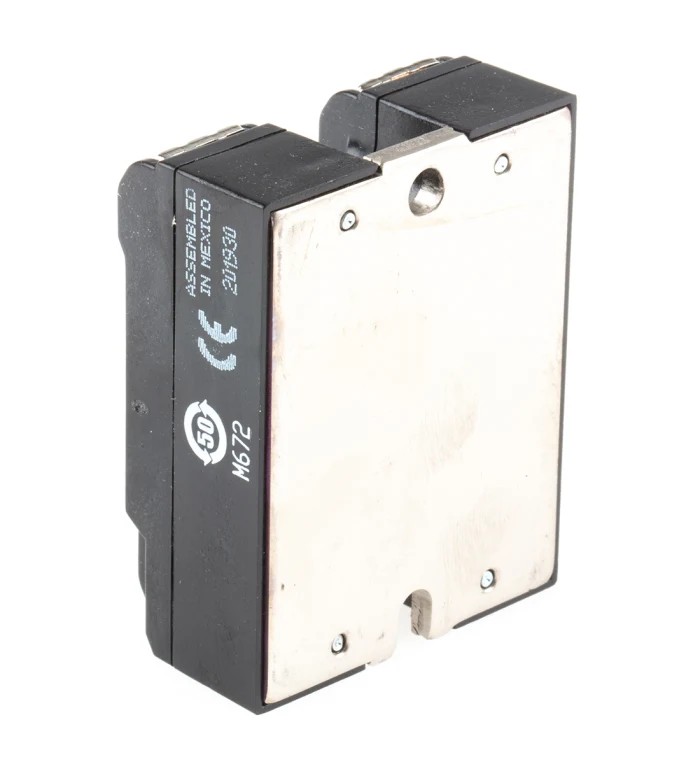

The Solid State Relay meets international standards such as CSA, RoHS, and UL recognition, affirming its compliance with safety and environmental regulations. Manufactured in Mexico by Sensata | Crydom, it delivers consistent quality and performance reliability.

Maximum load current of 50 A supports varied industrial equipment. Wide load voltage range of 24 to 280 V AC for flexible application. Control voltage from 3 to 32 V DC for broad control signal compatibility. Zero cross switching enhances operational safety and reduces noise.

Compact panel mount form factor with screw terminal connection. High dielectric strength of 4000 Vrms offers surge protection. Flame-retardant housing and SCR output ensure durability and safety. Operating temperature range from -40°C to 80°C suitable for harsh conditions.

Pre-assembled hardware and anti-rotation barriers simplify installation. Certified with CSA, RoHS, and UR standards. Explore EnvMart's extensive selection of industrial-grade relays and contactors to complement the Crydom D2 Series SSR D2450 for your control panel and automation needs.
