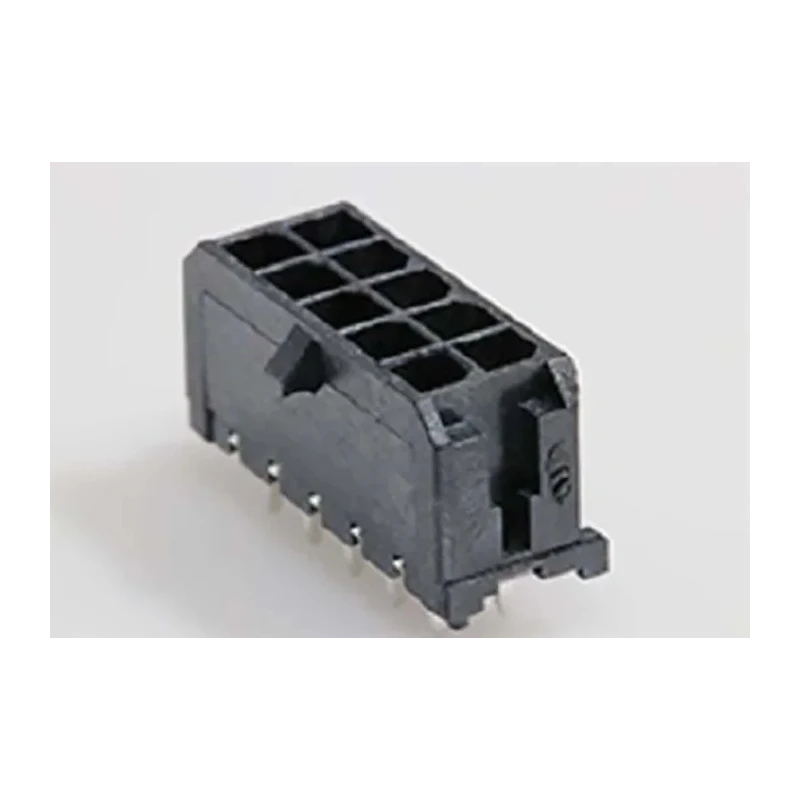

Molex Micro-Fit 3.0 Series Vertical Through Hole PCB Header, 10 Contacts, 3 mm Pitch, 2 Row, Shrouded 430451028
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 8.5A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Standards/Approvals | CSA LR19980, UL E29179 |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Micro Fit Connector System |
| Tail Pin Length | 3.18mm |
Key Features
- Features a 3 mm pitch and two-row configuration for secure mounting.
- Constructed with a high temperature thermoplastic housing ensuring durability.
- Gold-plated brass contacts deliver excellent conductivity and corrosion resistance.
- Designed with a shrouded male connector for protection and proper polarization.
- Supports a maximum voltage rating of 600V and current up to 8.5A.
- Operating temperature range from -40°C to 105°C for versatile environment use.
- Termination via solder with tail pin length of 3.18 mm for firm PCB attachment.
- Certified to standards CSA LR19980 and UL E29179 for safety compliance.
Product Description
The Molex 430451028 is a Micro-Fit 3.0 Series vertical through hole PCB Header, engineered for reliable board-to-board and wire-to-board connections in electronic circuits.
This connector features 10 gold-plated brass contacts arranged in two rows with a 3 mm pitch, ensuring robust signal integrity and durability under high current load of 8.5A and up to 600 volts. The housing is made from high temperature thermoplastic, offering resilience to thermal stress with operation capable between -40°C and 105°C, making it suitable for a wide range of industrial and commercial applications.
Its shrouded male design provides reliable polarization to prevent mis-mating and ensures secure connections. The solder termination and 3.18 mm tail pin length facilitate strong mechanical and electrical connection to PCB assemblies.
The Molex Micro-Fit 3.0 Header complies with CSA LR19980 and UL E29179 standards, attesting to its quality and safety for electronics manufacturing environments.
Commonly used in industrial electronics, power supplies, communication equipment, and control systems, this component is ideal for high-density interconnection needs requiring compact size with high current capabilities.
Features a 3 mm pitch and two-row configuration for secure mounting. Constructed with a high temperature thermoplastic housing ensuring durability. Gold-plated brass contacts deliver excellent conductivity and corrosion resistance.
Designed with a shrouded male connector for protection and proper polarization. Supports a maximum voltage rating of 600V and current up to 8.5A. Operating temperature range from -40°C to 105°C for versatile environment use.
Termination via solder with tail pin length of 3.18 mm for firm PCB attachment. Certified to standards CSA LR19980 and UL E29179 for safety compliance. Choose Molex Micro-Fit 3.0 vertical headers for your PCB connector needs within industrial electronics manufacturing and design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum voltage rating of 600V and a current rating of up to 8.5A.
It features a 3 mm pitch and a two-row configuration with a total of 10 contacts.
The housing is made from high temperature thermoplastic, and the contacts are gold-plated brass, providing excellent conductivity and corrosion resistance.
The operating temperature range is from -40°C to 105°C, making it suitable for various environmental conditions.
Termination is via solder, and it has a tail pin length of 3.18 mm for secure attachment to PCB assemblies.
It is part of the Micro Fit connector system, designed for reliable board-to-board and wire-to-board connections.
This unit is certified to the CSA LR19980 and UL E29179 standards for safety compliance.
The orientation of this model is vertical, suitable for through hole mounting.
It is commonly used in industrial electronics, power supplies, communication equipment, and control systems.
The contacts in this header are male, designed for secure connections with compatible female connectors.
The connector is designed with a shrouded male connector, which provides protection and proper polarization to prevent mis-mating.
The country of origin for this PCB header is China.
