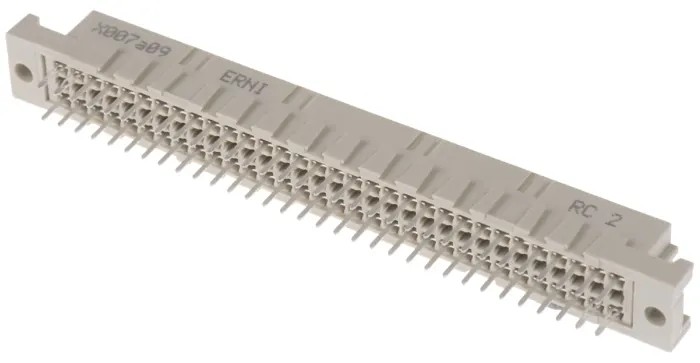

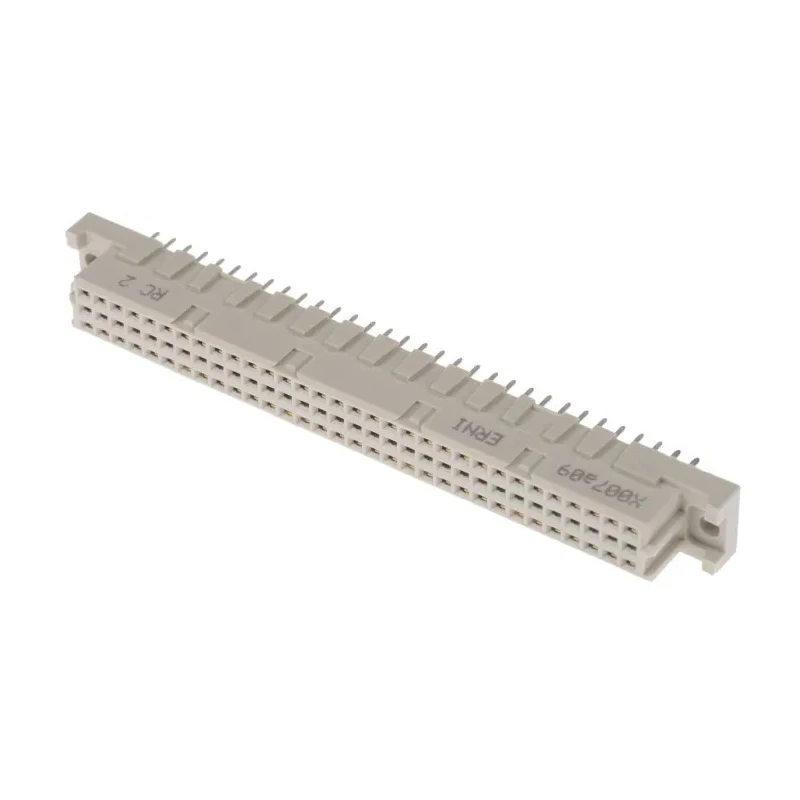

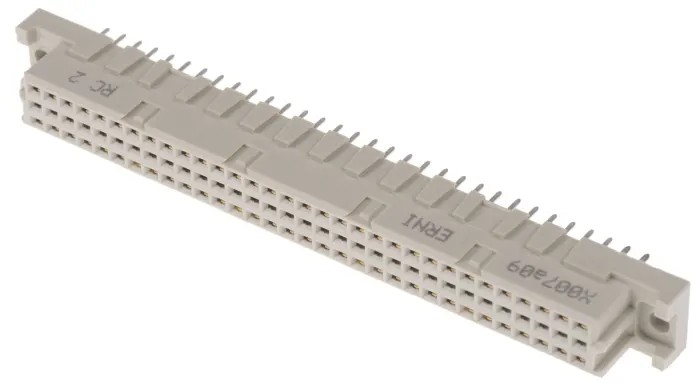

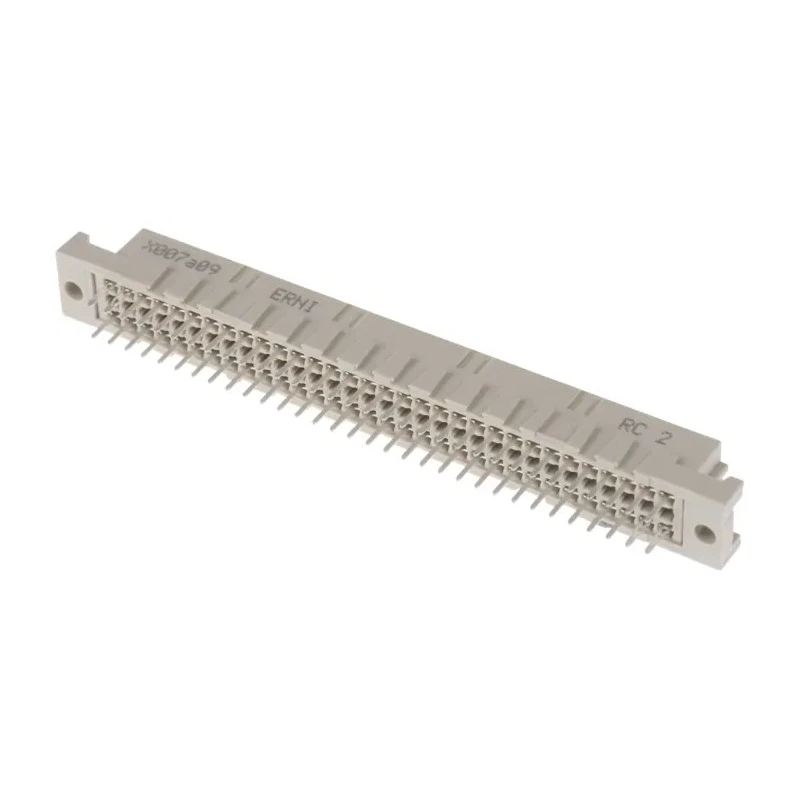

ERNI DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Connector Type C/2 Solder Class C2 2 Row Female 223839 / 223839-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Connector Type C/2 Solder Class C2 2 Row Female 223839 / 223839-E

Name: ERNI DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Connector Type C/2 Solder Class C2 2 Row Female 223839 / 223839-E
Brand: ERNI
SKU: 165419
Price: 6.06 USD
Availability: InStock



Category DIN 41612 Connectors Brand ERNI Condition New

Specifications

Country of Origin	Germany
Brand	ERNI
Orientation	Straight
Current	2A
Model	223839 / 223839-E
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	64
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/C
ERNI 64 Way 2.54mm Pitch, 2 Row, Straight DIN 41612 Connector, SocketBrand	ERNI

Key Features

64 contact points ensure extensive connectivity for complex electronic systems.
2.54 mm pitch provides standard spacing for DIN 41612 backplane applications.
Made with copper alloy contacts plated in gold for durability and low resistance.
Designed for through hole mounting providing robust mechanical stability.
Operates reliably in temperatures ranging from -55°C to 125°C for industrial environments.
Connector housing constructed from polybutylene terephthalate for chemical resistance and mechanical strength.
Current rating of 2A suits general electronics and communication hardware.
Mount type and contact gender tailored for female straight connectors with solder termination.

Product Description

The ERNI 223839 / 223839-E is a DIN 41612 Connector type C/2 designed for industrial and electronic applications requiring reliable and high-density backplane connections. Featuring 64 contacts arranged in 2 rows with a 2.54 mm pitch, this female straight connector offers excellent performance for PCB connections through solder termination and through hole mounting.

Constructed with copper alloy contacts plated in gold, the connector ensures low contact resistance up to a maximum of 20 milliohms, while supporting a current of 2 amperes. The use of polybutylene terephthalate for the housing provides mechanical robustness and chemical resistance, maintaining functionality even in demanding environments.

The product is rated for operation in temperatures from -55°C up to 125°C meeting the requirements of applications in harsh industrial settings. Designed to the DIN 41612 and IEC 60603-2 standards, it supports indirect connection systems with basic 2.54 mm grids commonly used in DIN 41494 construction systems for stacked PCB arrangements.

The connector features a retaining loop clip for improved mechanical retention and is ideal for backplane and rack connector assemblies in telecommunications, industrial automation, computing, and control equipment.

64 contacts for extensive connectivity on complex boards. Standardized 2.54 mm pitch suitable for a wide range of DIN applications. Gold plating enhances electrical conductivity and corrosion resistance. Solder termination provides reliable and durable electrical and mechanical connection.

Operates in extreme temperature ranges from -55°C to 125°C. Housing material chosen to endure chemical and mechanical stress. Applicable for industrial, laboratory, construction, and communication equipment. Designed and manufactured in Germany ensuring high quality standards.

Choose the ERNI 223839-E to meet demanding electrical connector requirements in power distribution, signal transmission, and electronic assembly. Suitable for integration into DIN 41612 based backplane systems, this connector delivers proven durability, reliability, and operational performance.
