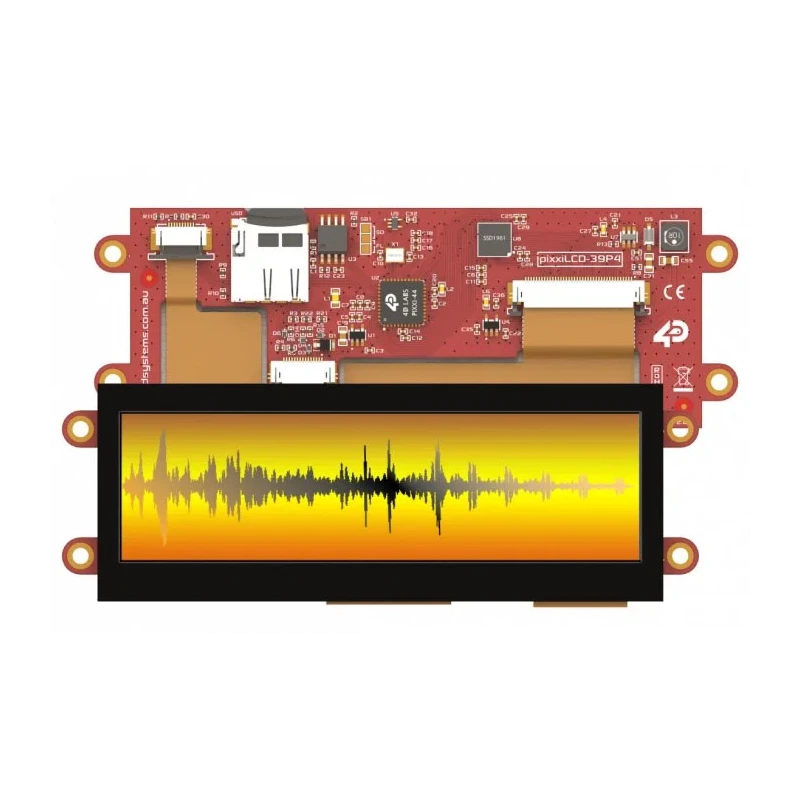

4D Systems LCD Colour Display Touch Screen 99.06 mm 480 x 128 pixel SPI Interface pixxiLCD-39P4-CTP
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | LCD |
| Brand | 4D Systems |
| Current | 265mA |
| Height | 118.8mm |
| Model | pixxiLCD-39P4-CTP |
| Depth | 6mm |
| Width | 40.64mm |
| Series | pixxiLCD |
| Maximum Operating Temperature | 70°C |
| Brightness | 475cd/m² |
| Minimum Operating Temperature | -13°C |
| Interface Type | SPI |
| Screen Resolution | 480 x 128 pixel |
| Standards/Approvals | CE, REACH, RoHS |
| Touch Screen Type | Capacitive |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4V |
| Viewing Area Dimensions | 119 x 41 mm |
| Backlight Type | LED |
| 500 | 1 |
| Diagonal Display Size | 99.06mm |
| Contrast Ratio | 500:1 |
| Contrast Ratio500 | 1 |
Key Features
- Features a bright LED backlight with 475 cd/m² brightness for clear visibility.
- Operates on a single 4 to 5.5 V supply with a current of 265 mA.
- Compact size with viewing area of 119 x 41 mm and physical dimensions of 118.8 x 40.64 x 6 mm (H x W x D).
- Supports SPI interface and all available Windows fonts for flexible graphical display.
- Designed to operate reliably between -13°C and 70°C ambient temperatures.
- Capacitive touch screen provides responsive user input and control.
- Includes power supply in the package for immediate use.
- Meets CE, REACH, and RoHS standards for safety and environmental compliance.
Product Description
4D Systems pixxiLCD-39P4-CTP is a high-performance 3.9 inch capacitive touch embedded graphic LCD colour display with a 99.06 mm diagonal size and 480 x 128 pixel IPS TFT module technology.
It features a bright LED backlight with 475 cd/m² luminance and a high contrast ratio of 500:1, delivering sharp and vibrant full-colour images, animations, icons, and video clips.
The display supports SPI interface communications and all Windows fonts, making it versatile for various industrial, embedded electronics and control panel applications. Operating within a voltage range of 4 to 5.5 V and drawing 265 mA current, it is powered by a single supply and includes the power supply unit with the product.
The compact viewing area of 119 x 41 mm and physical dimensions of 118.8 mm height, 40.64 mm width, and 6 mm depth make it suitable for integration into embedded and portable devices.
Its capacitive touch screen technology provides responsive and precise touch input, enhancing user interaction with embedded systems. This display module is rated to operate reliably from -13°C up to 70°C ambient temperatures, suitable for diverse environments.
The product complies with CE, REACH, and RoHS standards, confirming its quality and environmental safety.It is manufactured in Australia, assuring manufacturing quality and durability.
Bright LED backlight with 475 cd/m² luminance. High contrast ratio of 500:1 for clear image display. Capacitive touchscreen for responsive user input. SPI interface supporting versatile connectivity. Supports all standard Windows fonts.
Compact size with 99.06 mm diagonal and 119 x 41 mm viewing area. Wide operating temperature from -13°C to 70°C. Single 4 to 5.5 V supply with included power unit. Compliance with CE, REACH, and RoHS standards. Ideal for embedded industrial electronic applications.
This product is suitable for use in embedded systems, industrial controllers, instrumentation panels, and other electronic devices requiring high-quality graphical display with capacitive touch input.
Explore more 4D Systems products and LCD Colour Displays on EnvMart to find the best solution for your application needs.
