RS PRO 3-Pole Panel Mount Isolator Switch IP65 25A 11kW, Red Handle, Screw Terminal, Model IP65

The RS PRO IP65 3-Pole Panel Mount Isolator Switch is engineered to deliver dependable electrical isolation and safety in demanding industrial, commercial, and power distribution environments. This non-fused isolator switch is designed to disconnect or isolate an electrical circuit, ensuring protection during maintenance and safe operation of connected loads such as circuit breakers, transmission lines, and transformers. It is particularly suitable for low voltage switchgear, motor control centers, and automation systems where reliable disconnection and visibility of switch status are essential.

With an IP65 enclosure rating, this isolator switch offers superior protection against dust ingress and water jets, making it viable for indoor and sheltered outdoor installations. The robust housing encases a 3-pole switch capable of handling a maximum switching current of 25A at up to 750V AC, supporting equipment with power requirements up to 11kW. It can reliably operate across a wide temperature range, from -25°C to 40°C, meeting the needs of various industrial operational conditions.

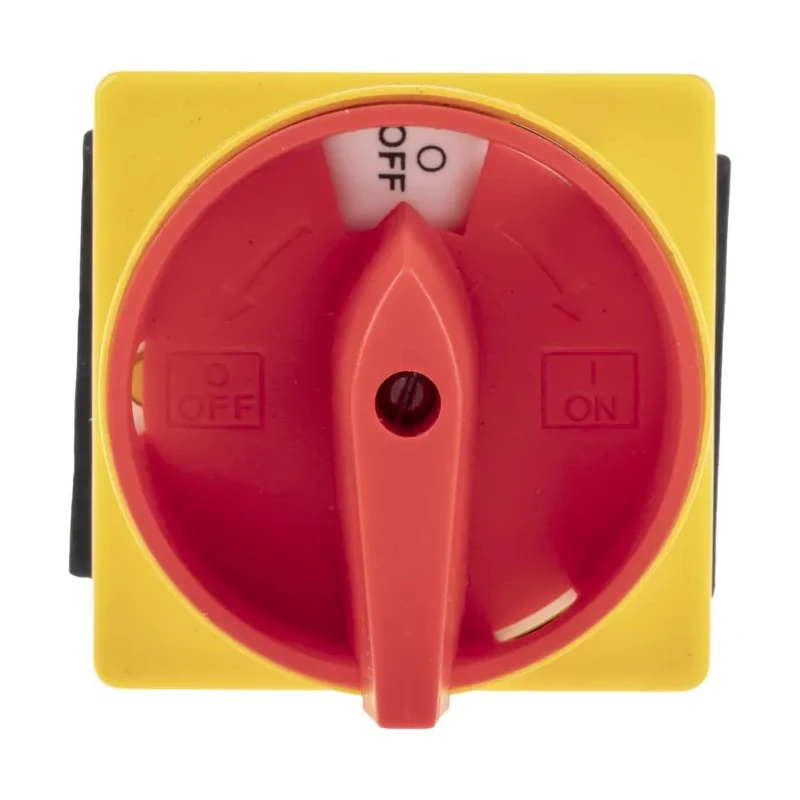

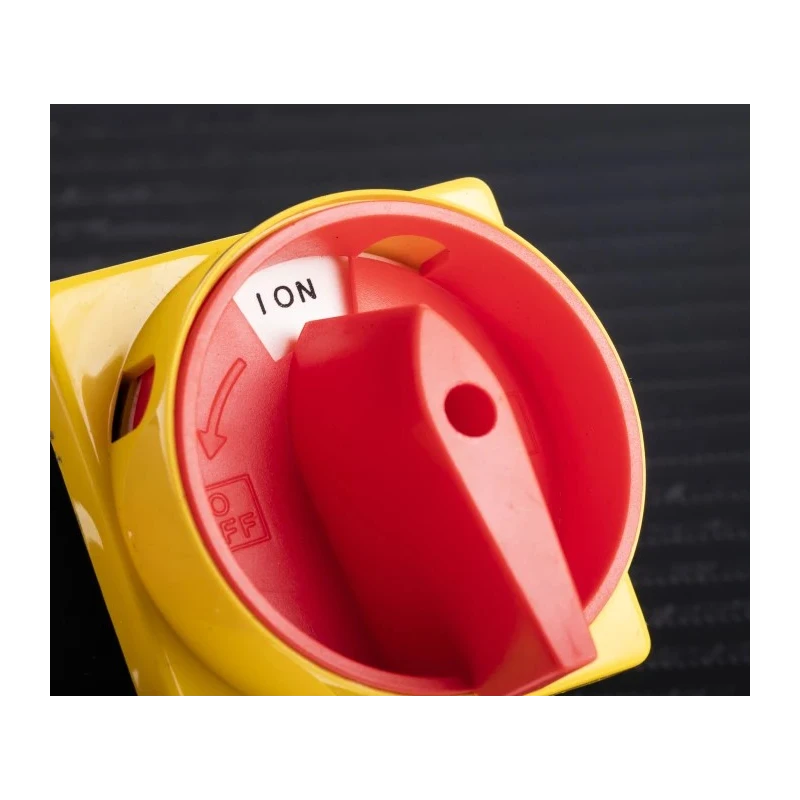

The unit features a high-visibility red rotary handle to facilitate safe and straightforward actuation, reducing the risk of accidental startup or misoperation. The handle supports a 90-degree switching angle and can be locked using a padlock for added safety during service procedures. Its panel mount design allows for easy and secure installation with a single front-mounting hole and accommodates maximum panel thicknesses up to 3mm.

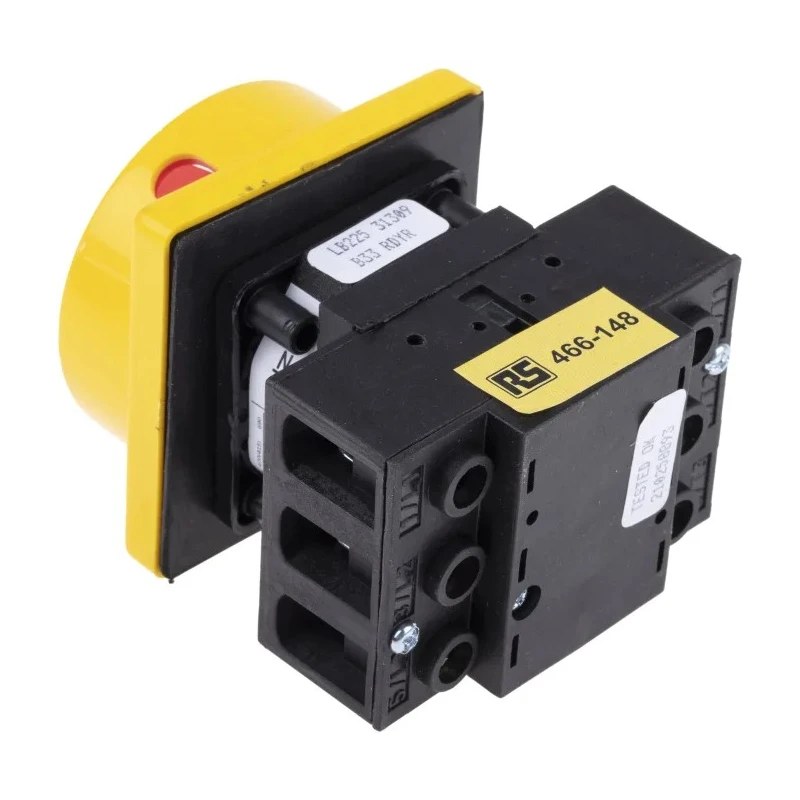

Connections are made via reliable screw terminals, promoting robust and maintainable wiring. The terminals feature finger protection and forced-open contacts for safety during maintenance. The switch incorporates open terminal screws for efficient installation as well as terminal screws accessible in open contacts for secure wiring adjustments.

Industrial use cases for this product include machinery isolation, power distribution boards, HVAC system control, manufacturing line safety, and electrical panel management. It is also suitable for applications where auxiliary contacts are not required. The panel mount isolator switch has compact dimensions (125mm length, 100mm width, 70mm depth) that make it ideal for control panels with limited space, while the actuator measures 64x64x32mm for accessible manual operation.

The device meets RoHS, UL, and CSA standards, ensuring compliance with international quality and safety requirements. For operator security, it offers padlock compatibility and ensures all switch ratings are at AC22 standards. The minimum installation depth behind the panel is 102mm, and the maximum is 117mm. This Isolator Switch is trusted by engineers worldwide for its quality, reliability, and versatility across a range of critical electrical applications.
