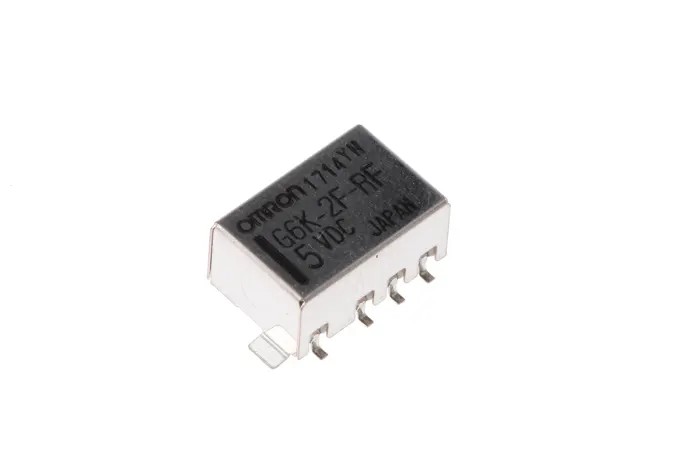

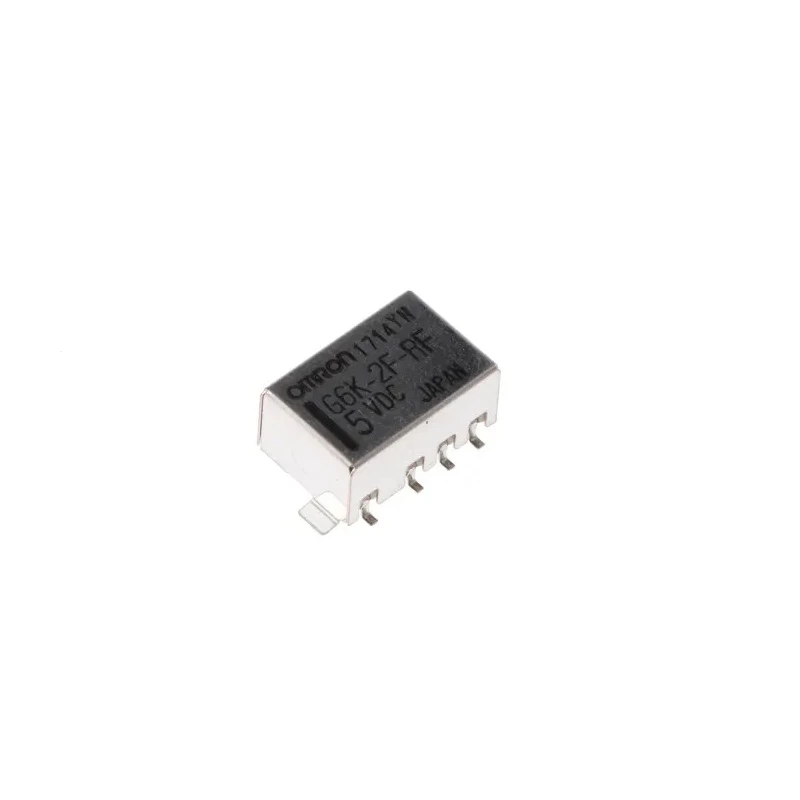

Omron Surface Mount High Frequency Relay 5V DC Coil, 1 GHz Max Frequency, DPDT, Latching, G6K-2F-RF DC5

The Omron G6K-2F-RF DC5 Surface Mount High Frequency Relay is engineered for secure and efficient switching in communication, RF, and signal transmission devices. Designed for operation with a 5V DC coil, it supports signals up to 1 GHz and features a latching DPDT configuration, allowing precise multi-circuit control and signal routing in compact electronic assemblies.

This relay demonstrates outstanding high-frequency characteristics, providing a minimum isolation of 20 dB between contacts of the same polarity and 30 dB between contacts of different polarity. Its gold-plated contacts deliver low contact resistance (100 mΩ) and minimize insertion loss (max 0.2 dB), ensuring superior signal integrity crucial for radio-frequency and data transmission applications.

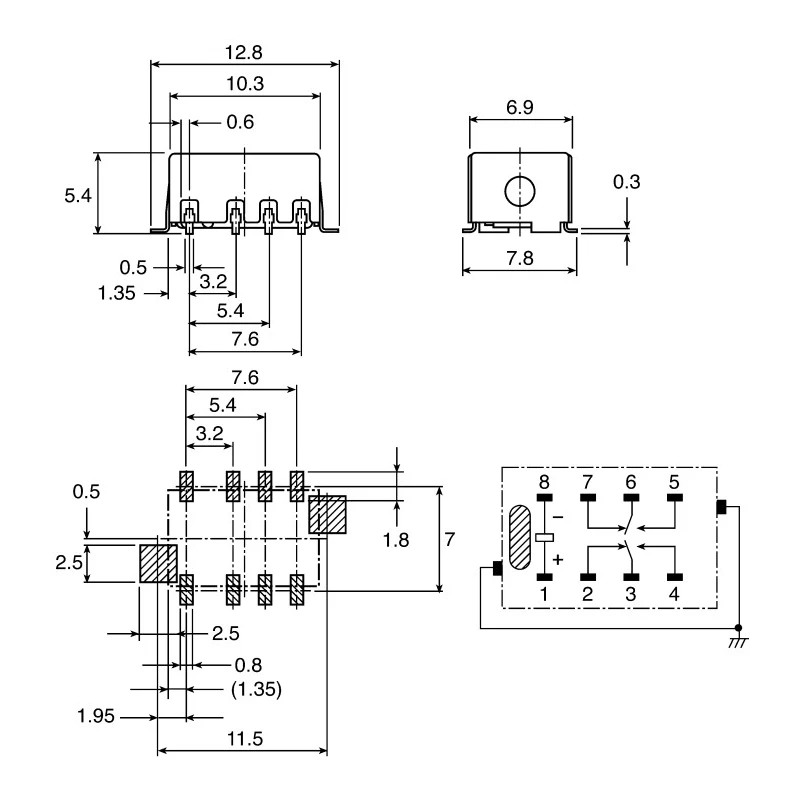

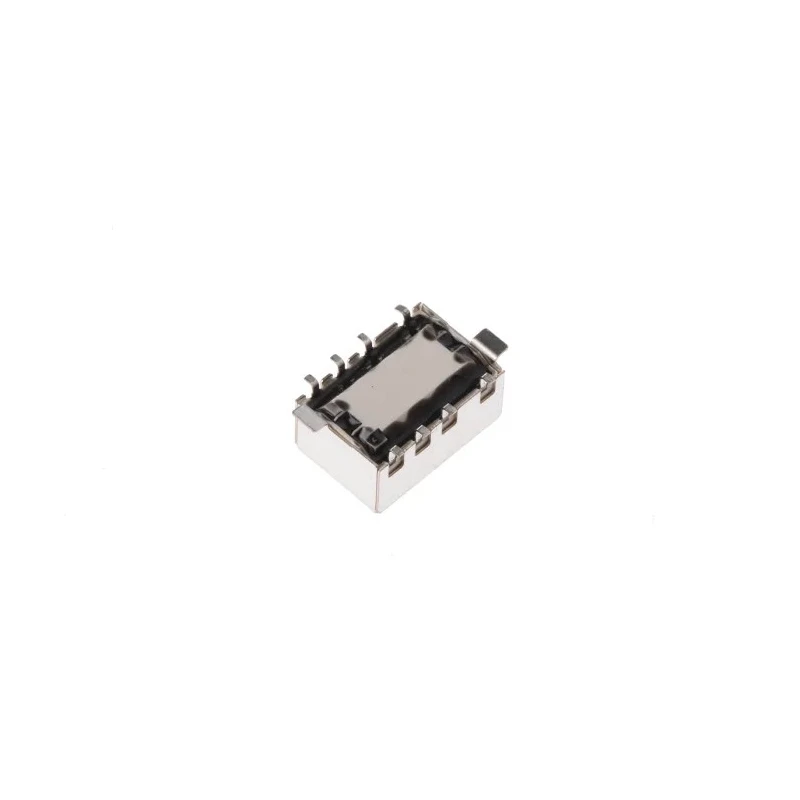

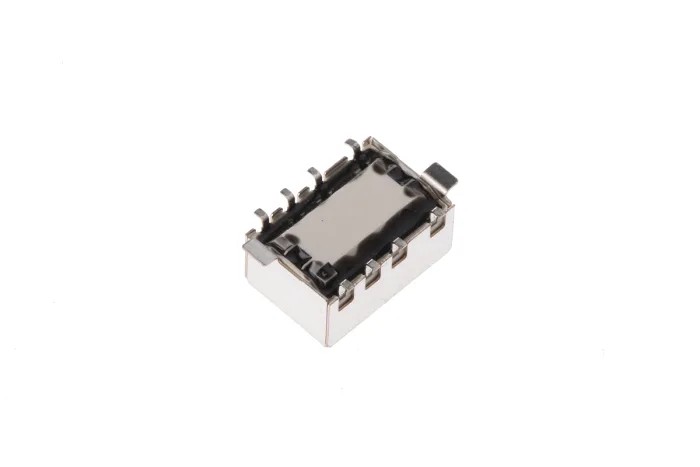

The relay’s miniature SMT package, with a footprint of 10.3 x 6.9 x 5.4 mm and a height of only 5.4 mm, supports designers aiming for space optimization in densely packed PCBs. Its surface-mount 'Outside-L' terminals simplify automated assembly and support robust mechanical retention.

Omron’s G6K-2F-RF DC5 relay is distinguished by low coil power consumption (100 mW), enabling battery-powered and energy-sensitive designs. The device supports operating temperatures from -40°C to 70°C and is constructed as a fully sealed unit for resilience in harsh environments. The relay achieves a voltage standing wave ratio (VSWR) of 1.2 (at 1 GHz), suitable for demanding telecom and test & measurement circuits.

Additional technical highlights include latching coil type, RoHS compliance, and UL/CSA approvals. The relay’s gold contact material and latching operation ensure high signal reliability and stable retention with minimal signal loss. The compact build and advanced high-frequency spec fulfill critical industrial and laboratory switching needs.

Typical use cases are in RF base stations, network switches, communication equipment, industrial signal conditioning, laboratory instrumentation, and automated test setups. Its high-frequency capability and low insertion loss make it ideal for modern electronics in manufacturing, broadcasting, control systems, and telecommunications.
