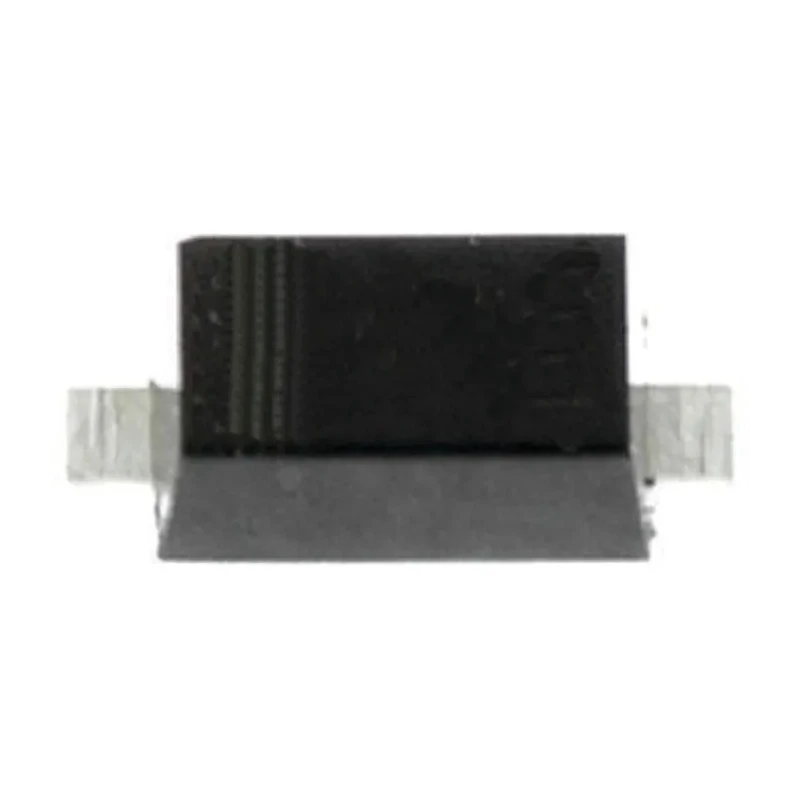

Nexperia 60 V 1 A Schottky Barrier Rectifier Diode 2-Pin Surface Mount SOD-123 PMEG6010CEH,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 60 V 1 A Schottky Barrier Rectifier Diode 2-Pin Surface Mount SOD-123 PMEG6010CEH,115

Name: Nexperia 60 V 1 A Schottky Barrier Rectifier Diode 2-Pin Surface Mount SOD-123 PMEG6010CEH,115
Brand: Nexperia
SKU: 164509
Price: 0.18 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.2mm
Length	2.7mm
Model	PMEG6010CEH,115
Width	1.7mm
Mount Type	Surface
Series	PMEG6010CEH
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	9A
Maximum Forward Voltage Vf	660mV
Nexperia 60 V 1 A Diode Schottky 2-Pin SOD-123 PMEG6010CEGWXBrand	Nexperia

Key Features

Features a low forward voltage of 660 mV for efficient power conversion.
Compact SOD-123 package with dimensions 2.7 mm length, 1.7 mm width, and 1.2 mm height.
Supports peak non-repetitive forward surge current up to 9 A for transient loads.
Operates reliably in temperature ranges from -65°C to 150°C.
Ideal for low voltage rectification, DC-to-DC conversion, and switch mode power supplies.
Small and flat lead surface mount device designed for automated PCB assembly.
Designed with a built-in guard ring providing stress protection in harsh environments.
Peak reverse repetitive voltage is 60 V with a peak reverse current of 50 μA.

Product Description

The Nexperia PMEG6010CEH,115 is a high-efficiency Schottky barrier rectifier diode designed for surface mount applications, rated at 60 V maximum repetitive reverse voltage and 1 A continuous forward current. Housed in a compact 2-pin SOD-123 package, this diode features very low forward voltage drop of 660 mV which reduces power loss during operation.

Manufactured for demanding electronic environments, it includes a built-in guard ring that enhances reliability and stress protection. The diode supports high surge currents up to 9 A peak forward surge current, allowing it to handle transient loads with ease. Operational temperature ranges from -65°C to +150°C ensure stable performance under extreme conditions.

This diode is ideally suited for applications such as low voltage rectification, DC-to-DC converters, and switch mode power supplies, making it a versatile component for power management in industrial, automotive, and consumer electronics.

The compact SOD-123 package with precise dimensions (2.7 mm length, 1.7 mm width, 1.2 mm height) enables easy integration into dense PCB layouts. The small and flat lead design supports automated assembly processes and ensures high reliability in mass production.

Very low forward voltage of 660 mV for efficient power handling. Compact 2-pin SOD-123 surface mount package. Peak forward surge current rating of 9 A for transient conditions. Wide operating temperature range from -65°C to 150°C.

Built-in guard ring for enhanced stress protection. Peak reverse current of 50 μA at rated voltage. Ideal for industrial, automotive, and consumer power supply circuits.

This diode is manufactured in China and meets quality requirements for reliable semiconductor devices. It forms part of Nexperia's MEGA (Maximum Efficiency General Application) series, designed to offer general purpose, high-efficiency power rectification.

For those seeking a dependable Schottky diode for rigorous power electronics applications, the PMEG6010CEH,115 offers excellent performance and compact design. Explore our semiconductor category for more power rectifiers and related components.

Explore more products in our Schottky Diodes & Rectifiers category.
