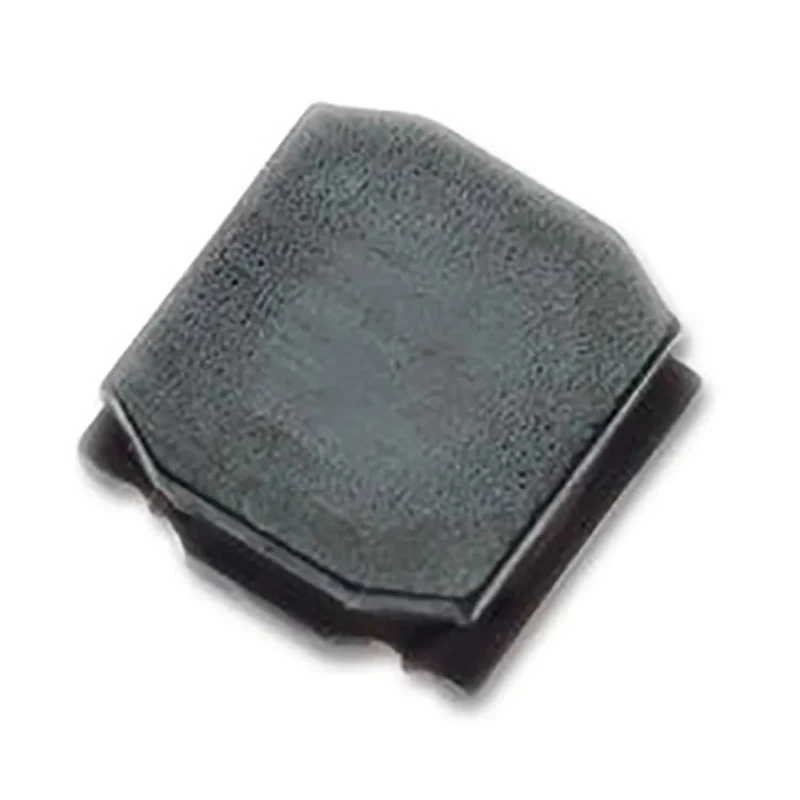

Murata 5050 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±30% 3 A Idc LQH5BPN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 5mm |
| Model | LQH5BPN |
| Depth | 5mm |
| Packaging | Embossed Tape |
| Series | LQH5BPN |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 3A |
| Pin Count | 2 |
| Maximum DC Resistance | 58mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 40MHz |
| Inductor Construction | Wirewound |
Key Features
- Compact 5050 package case designed for surface mount technology.
- Ferrite core provides excellent magnetic properties and shielding.
- Maximum DC resistance of 58 mΩ ensures low power loss.
- Operating temperature ranges from -40°C up to 125°C for reliable performance.
- Construction utilizes wirewound technology for stable inductance.
- Termination style uses solder connection for ease of mounting.
- RoHS compliant and moulded construction to meet environmental standards.
- Maximum self-resonant frequency is 40 MHz, suitable for high-frequency applications.
Product Description
Murata LQH5BPN is a 5050 shielded wirewound surface mount inductor featuring a ferrite core with an inductance of 4.7 μH and tolerance of ±30%. It supports a maximum DC current of 3 A and utilizes a compact surface mount design suitable for power line filtering and signal conditioning in electronic circuits.
This inductor series employs wirewound construction, offering robust inductance stability under varying current loads. The ferrite core provides efficient magnetic shielding, reducing electromagnetic interference in dense PCB layouts.
The device supports operation in wide environmental conditions, from -40°C to 125°C, ensuring durable performance in industrial and automotive electronic applications, although it does not meet automotive standards officially. It is RoHS compliant, with molded body construction ensuring mechanical strength and reliability.
Package case type: 5050 for easy PCB surface mounting. Maximum DC resistance of 58 milliohms contributes to energy efficiency. Maximum self-resonant frequency of 40 MHz supports high-frequency circuit designs. Termination style is solder, compatible with automated assembly processes.
Pin count: 2 standard electrical connection points. The inductor is supplied in embossed tape packaging facilitating automated pick-and-place assembly. Common industrial applications include power supplies, signal filtering, and noise suppression in consumer electronics, communication devices, and control equipment.
Explore a wide variety of Surface Mount Inductors on EnvMart to find the ideal component for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 4.7 μH with a tolerance of ±30%.
It supports a maximum DC current of 3 A.
The dimensions of the 5050 package case are 5 mm in length, 5 mm in depth, and 2 mm in height.
The maximum DC resistance is 58 mΩ, contributing to low power loss.
It operates within a temperature range of -40°C to 125°C.
This model utilizes wirewound construction, which provides stable inductance under varying current loads.
The termination style is solder, which allows for ease of mounting and compatibility with automated assembly processes.
The maximum self-resonant frequency is 40 MHz, making it suitable for high-frequency applications.
Yes, the LQH5BPN is RoHS compliant, ensuring it meets environmental standards.
It is supplied in embossed tape packaging, which facilitates automated pick-and-place assembly.
The core material is ferrite, which provides excellent magnetic properties and shielding.
Common applications include power supplies, signal filtering, and noise suppression in consumer electronics and communication devices.
