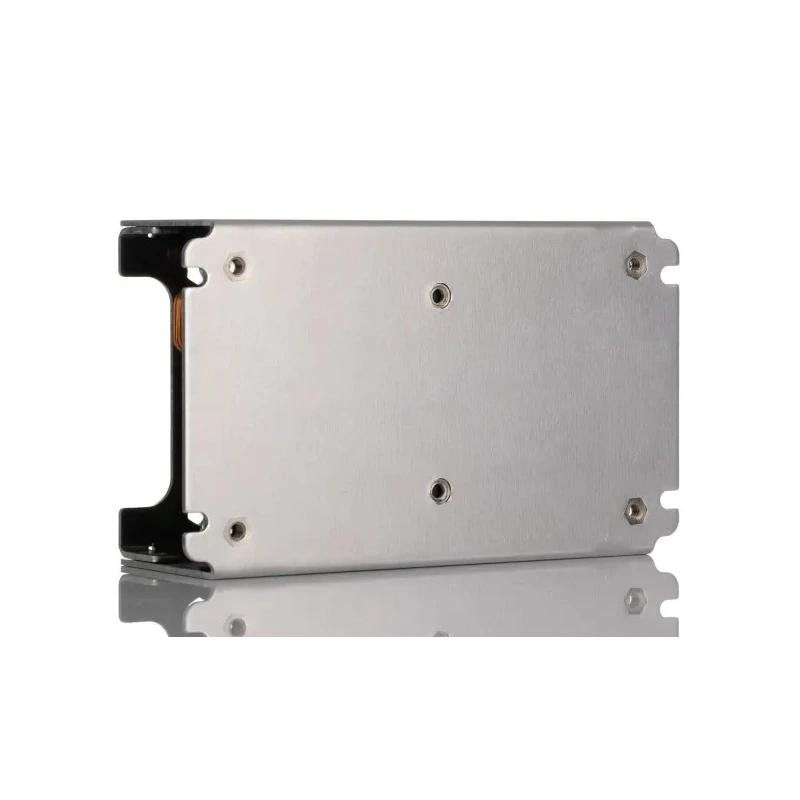

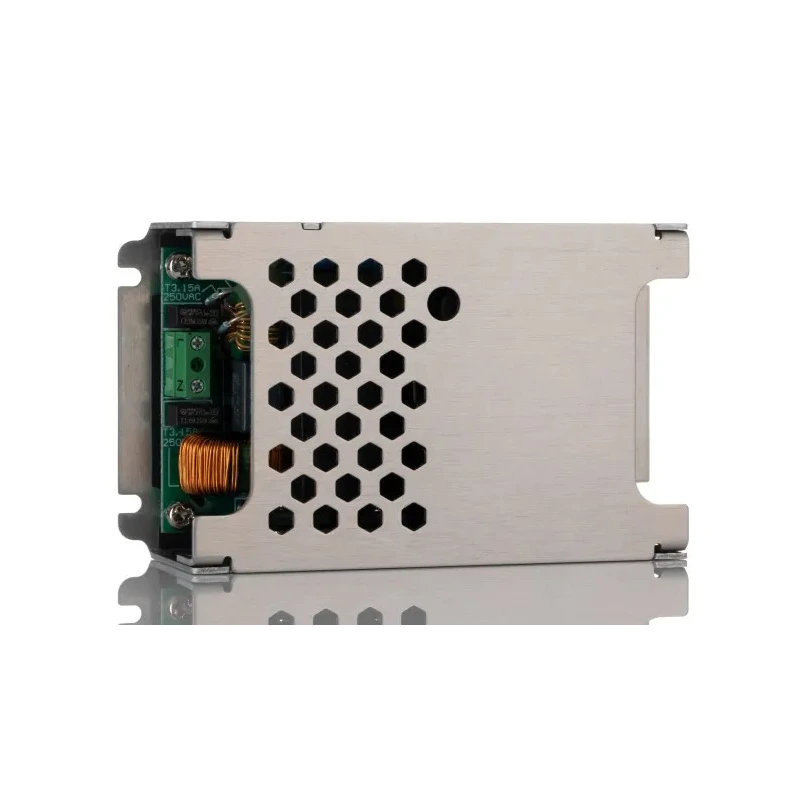

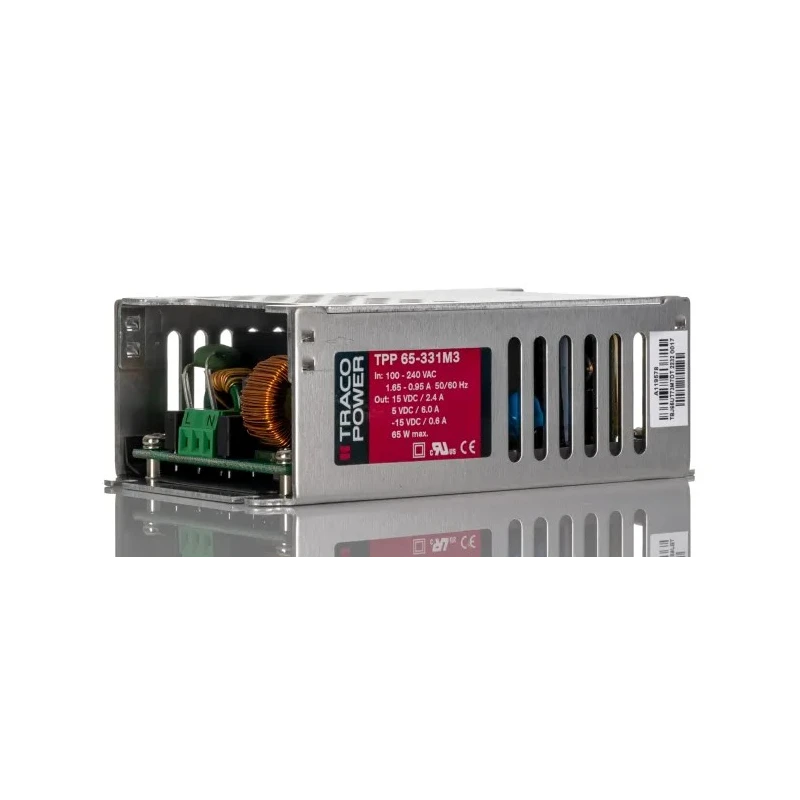

TRACOPOWER Switching Power Supply 3 Outputs 15V DC 65W 85-264V AC 120-370V DC Chassis Mount TPP 65-331M3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 65W |
| Efficiency | 90% |
| Length | 102.4mm |
| Model | TPP 65-331M3 |
| Depth | 60.5mm |
| Gross Weight | 221g |
| Width | 60.5mm |
| Mount Type | Chassis |
| Series | TPP 65 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 3 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 15V dc |
| SMPS Output Current | 8A |
| Minimum Input Voltage | 85V ac |
Key Features
- Outputs include +15V, +5V, and -15V DC for versatile use.
- Chassis mount design allows easy integration to equipment framework.
- Wide input voltage range 85-264V AC and 120-370V DC accommodates variable power sources.
- High efficiency up to 90% minimizes heat and energy loss.
- Operating temperature range from -40°C to +85°C suits harsh environments.
- Compact with dimensions 102.4 x 60.5 x 60.5 mm and lightweight 221g.
- Robust isolation voltage of 4kV AC enhances safety for sensitive equipment.
- Compliance with medical standards ANSI/AAMI ES 60601-1, EN 60601-1, IEC 60601-1.
Product Description
TRACOPOWER TPP 65-331M3 is a high-performance switching power supply designed for industrial and medical applications requiring stable and reliable multi-output DC power. This chassis-mounted supply offers three independent outputs: +15V, +5V, and -15V DC, delivering a total power output of 65W. Compatible with a wide input voltage range of 85 to 264 V AC and 120 to 370 V DC, it is suitable for diverse power environments.
Featuring a compact and robust chassis that measures 102.4 mm in length, 60.5 mm in width, and depth, and weighing only 221 grams, this power supply is ideal for equipment with space constraints. It boasts a high efficiency of 90%, reducing heat generation and improving energy savings.
Its operating temperature range of -40°C to +85°C allows reliable function in harsh industrial and outdoor environments. The unit is compliant with stringent medical safety standards including ANSI/AAMI ES 60601-1, EN 60601-1, and IEC 60601-1, making it safe and suitable for medical device power requirements.
The power supply offers a low leakage current of just 75 microamps and a high isolation voltage of 4kV AC between input and output, greatly enhancing user safety and system reliability. Installation is convenient due to its chassis mount design, allowing secure attachment to the equipment framework or enclosure.A perfect choice for hospitals, telecommunications networks, aerospace manufacturing, and other industrial applications requiring reliable multi-output DC power in compact form factors.
Outputs include +15V, +5V, and -15V DC providing versatile power solutions. Chassis mount design enables straightforward installation. Wide input voltage acceptance supports 85-264V AC and 120-370V DC sources. High 90% efficiency minimizes power loss and heat.
Wide operating temperature from -40°C to 85°C for harsh environments. Compact size with length 102.4mm, width and depth 60.5mm. Lightweight unit at 221 grams suitable for portable equipment. Meets ANSI/AAMI ES 60601-1, EN 60601-1, IEC 60601-1 medical safety standards.
Low 75 μA leakage current for safe medical application use. Explore more Switching Power Supplies and power-related products on EnvMart for your electronic and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides three output voltages: +15V, +5V, and -15V DC.
The input voltage range is wide, accepting 85-264V AC and 120-370V DC.
This power supply has an efficiency rating of up to 90%, which helps minimize heat generation and energy loss.
It has dimensions of 102.4 mm in length, 60.5 mm in width, and 60.5 mm in depth, weighing 221 grams.
This model features a chassis mount design for easy integration into equipment frameworks.
It complies with medical safety standards including ANSI/AAMI ES 60601-1, EN 60601-1, and IEC 60601-1.
The TPP 65-331M3 has three outputs.
It features a robust isolation voltage of 4kV AC between input and output, enhancing safety for sensitive equipment.
The maximum output current is 8A.
It has a low leakage current of just 75 microamps, making it suitable for medical applications.
