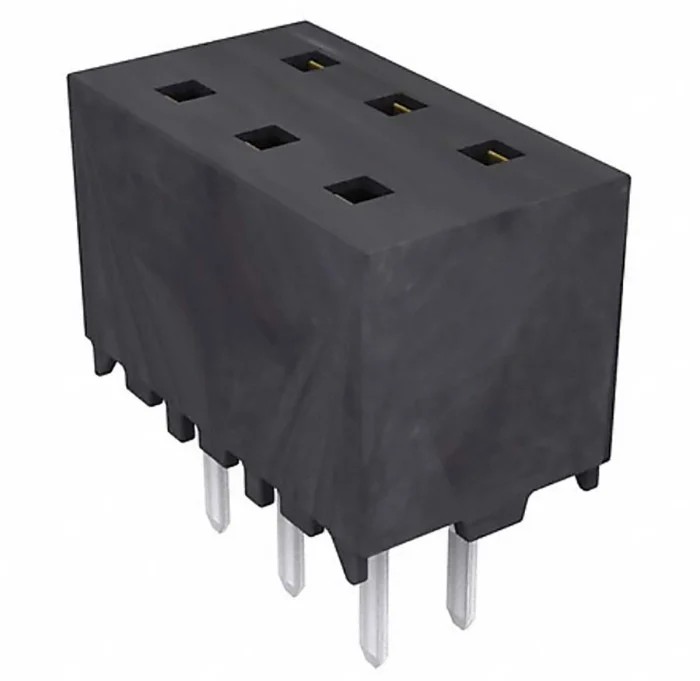

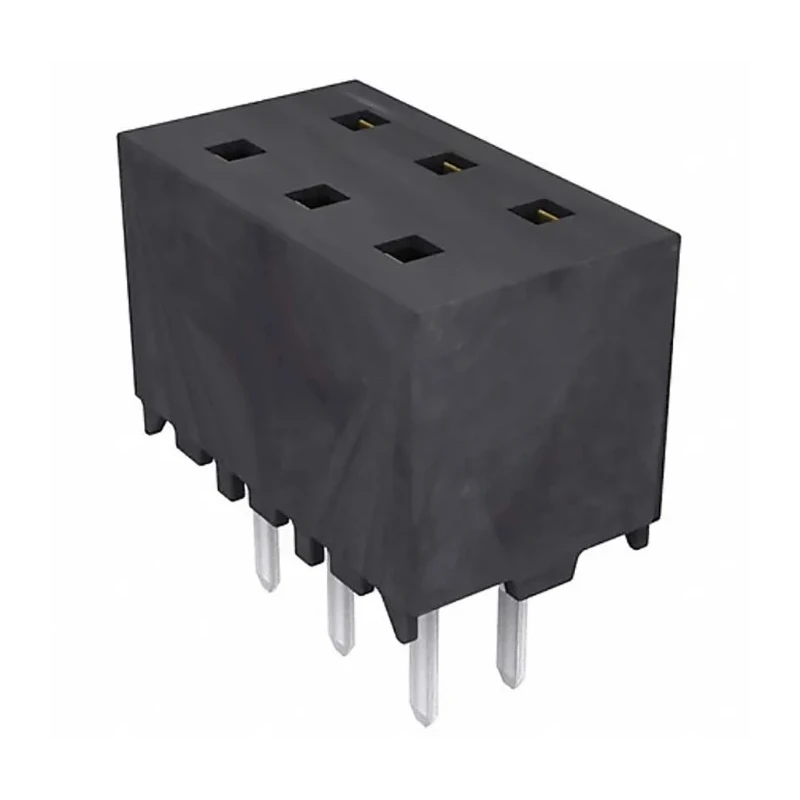

Samtec MMS Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, Solder Termination MMS-105-02-L-DV-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.9A |
| Model | MMS-105-02-L-DV-K-TR |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | MMS |
| Termination | Through-hole, surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Tiger Claw |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
Key Features
- The connector uses Samtec's Tiger Claw dual wipe contact system for reliable connections.
- It supports a maximum current of 3.9 Amps per pin.
- The housing is made from Liquid Crystal Polymer for durability.
- Contact material is phosphor bronze plated with gold for corrosion resistance.
- Designed for through-hole solder mounting with vertical orientation.
- Operating temperature range from -55°C up to 125°C.
- Connector system is board-to-board type suitable for single or double row applications.
- Meets RoHS standards for environmental compliance.
Product Description
The Samtec MMS-105-02-L-DV-K-TR is a high-quality PCB socket designed for reliable board-to-board connections in electronics assemblies. This straight through hole PCB socket features 10 contacts distributed in 2 rows with a 2 mm pitch, optimized for solder termination. Its Tiger Claw dual wipe contact system ensures a strong and consistent electrical connection capable of carrying up to 3.9 Amps per pin.
Constructed with a housing made of Liquid Crystal Polymer, this connector offers excellent durability and electrical insulation properties. The contacts are fabricated from phosphor bronze and plated with gold, providing corrosion resistance and longevity for demanding industrial and electronic applications.
The connector supports through-hole mounting with a vertical, straight orientation, making it suitable for various electronic devices and PCB layouts. It reliably performs under a wide temperature range spanning from -55°C to 125°C, making it applicable in industrial, manufacturing, and laboratory environments where temperature extremes may be encountered.
Designed primarily as a board-to-board connector system, the MMS series supports single and double row configurations up to 80 pins, offering versatility for multiple design requirements. This series complies with RoHS regulations ensuring environmentally safe manufacturing and material use.
The connector incorporates the Tiger Claw contact system for secure and reliable pin connections. Capable of handling currents up to 3.9 Amps per contact. Features a robust Liquid Crystal Polymer housing resistant to heat and wear.
Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance. Through-hole solder termination suitable for vertical mounting. Wide operational temperature range supports versatile industrial applications.
Board-to-board connector system supports modular electronic assemblies. Meets RoHS compliance for safe and sustainable use.
This product is ideal for industrial electronics, communications equipment, and instrumentation requiring reliable, high-performance PCB connectivity. Explore more PCB Sockets and connectors in the Electronics & Electricals category for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current capacity of this PCB socket is 3.9 Amps per pin.
It operates within a temperature range of -55°C to 125°C.
The housing is made from Liquid Crystal Polymer, while the contacts are made of phosphor bronze plated with gold for corrosion resistance.
This model features through-hole solder termination suitable for vertical mounting.
The connector has a total of 10 contacts arranged in 2 rows with a 2 mm pitch.
It utilizes a board-to-board connector system, suitable for single or double row applications.
Yes, this connector meets RoHS standards for environmental compliance.
The orientation of this model is straight, designed for through-hole mounting.
The pitch of the contacts is 2 mm.
The sub-type of this connector is the Tiger Claw, which features a dual wipe contact system for reliable connections.
The country of origin for this product is India.
This model is ideal for industrial electronics, communications equipment, and instrumentation requiring reliable PCB connectivity.
