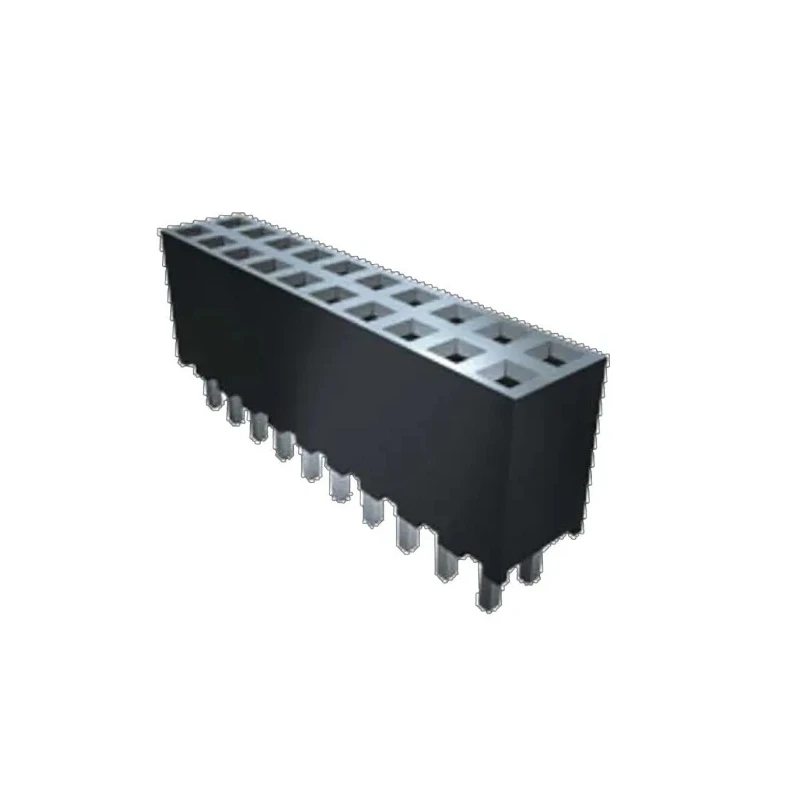

Samtec Right Angle Surface PCB Socket 18-Contact 2 Row 2 mm Pitch Through Hole SQT-109-01-F-D

Name: Samtec Right Angle Surface PCB Socket 18-Contact 2 Row 2 mm Pitch Through Hole SQT-109-01-F-D
Brand: Samtec
SKU: 162662
Price: 3.01 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	281V
Brand	Samtec
Orientation	Right Angle
Current	5.1A
Model	SQT-109-01-F-D
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Current Rating	5.1A per pin(2 pins powered)
Series	SQT
Termination Type	Through Hole
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	18
Contact Gender	Female
Connector System	Board-to-Board
Operating temp range	-55°C to +125°C
Normal Force	60grams (0.59N) average

Key Features

The socket features a liquid crystal polymer housing ensuring durability and stability.
Phosphor bronze contacts are plated with gold for reliable conductivity and corrosion resistance.
It operates at a voltage of 281V and supports a current rating of 5.1A per pin with two pins powered.
Designed for right angle mounting with surface mount technology and through-hole termination for secure PCB connection.
The operating temperature range spans from -55°C to 125°C, suitable for harsh industrial environments.
Normal force of 60 grams (0.59 N) ensures consistent contact pressure for signal integrity.
The connector system is optimized for board-to-board applications with female contact gender.
The product is part of the SQT series, known for rugged and cost-effective socket solutions.

Product Description

Samtec SQT-109-01-F-D is a right angle surface PCB socket designed for board-to-board connection applications. It features 18 contacts arranged in two rows with a 2 mm pitch. The socket uses a black liquid crystal polymer housing material that offers high durability and insulating properties suitable for industrial and electronic manufacturing environments.

The contact material is phosphor bronze plated with gold to provide excellent conductivity and resistance to corrosion, assuring reliable electrical connections. The socket supports a nominal current rating of 5.1A per pin with two pins powered, and it is rated for 281V operation, making it suitable for various electronic circuits.

This PCB socket is intended for through-hole termination with surface mount, fixtures ensuring robust mechanical and electrical performance during usage. Its operating temperature range from -55°C to 125°C enables use in extreme temperature conditions common in aerospace, automotive, and industrial sectors.

Normal contact force averages 60 grams (0.59 N), ensuring consistent connection pressure while minimizing wear on contacts. The product is female gender, right angle orientation, and compatible with standard board-to-board connector systems enhancing flexibility in PCB design and assembly.

The socket is manufactured with high precision to meet demanding industrial standards. The SQT series represents cost-effective rugged sockets suitable for multiple electronic applications. Its construction supports reliable long-term performance in industrial, manufacturing, electronic assembly, and testing environments.

Suitable for use in electronic devices requiring compact, high-density board connections. Ideal for use in telecommunications, instrumentation, computing, and power electronics. Explore more PCB Sockets and related components in the Electronics & Electricals category on EnvMart for a comprehensive selection of connectors and accessories.
