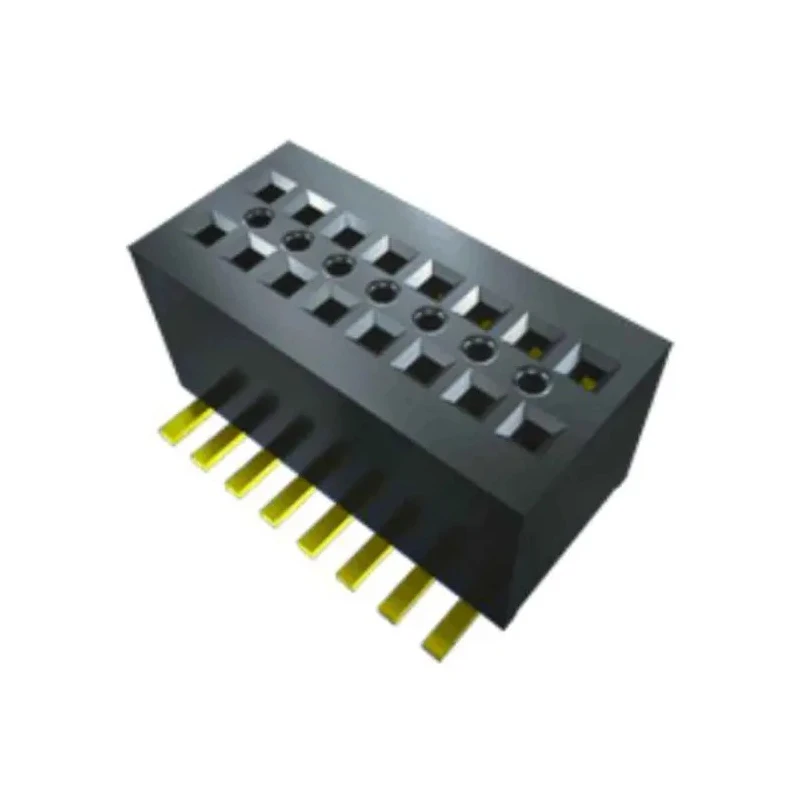

Samtec Right Angle Surface PCB Socket 20-Contact 2 Row 0.8mm Pitch Solder CLE-110-01-G-DV-A-K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 2.7A |
| Model | CLE-110-01-G-DV-A-K |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | CLE |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Connector System | Board-to-Board |
| Row Pitch | 1.2mm |
Key Features
- Features a cost-effective Tiger Beam contact system for reliable connectivity.
- Contact plating is gold for enhanced conductivity and corrosion resistance.
- Housing is made of liquid crystal polymer for durability and performance.
- Operates across a wide temperature range from -55°C to 125°C.
- Capable of handling a current of up to 2.7A with beryllium copper alloy contacts.
- Ideal for surface mount applications with right angle orientation.
- Offers a 1.2 mm row pitch with two rows to support compact PCB layouts.
- RoHS compliant ensuring environmental safety and standards adherence.
Product Description
Samtec CLE-110-01-G-DV-A-K is a right angle surface mount PCB socket designed for board-to-board connector systems. It features 20 contacts arranged in 2 rows with a fine 0.8 mm pitch and 1.2 mm row pitch, suitable for space-constrained electronic assemblies. This socket utilizes a cost-effective Tiger Beam contact system, which enhances connection reliability while maintaining an economical design.
The housing material is liquid crystal polymer, providing high mechanical strength and thermal stability. Contacts are made from beryllium copper alloy plated with gold to ensure excellent electrical conductivity and durability under high usage conditions. This socket supports currents up to 2.7A, making it suitable for moderate power applications.
It is designed for surface mount technology with a right angle orientation, facilitating compact PCB configurations. The operating temperature range extends from -55°C to 125°C, accommodating a wide variety of industrial and electronic environments.
The CLE series sockets comply with RoHS directives, ensuring low environmental impact and safety standards compliance. This product is ideal for industrial electronics manufacturing, consumer electronics, telecommunications equipment, and other applications requiring reliable board-to-board interconnects.
Cost-effective Tiger Beam contact system providing reliable connections. Gold-plated beryllium copper alloy contacts for durability and conductivity. Liquid crystal polymer housing for mechanical and thermal stability. Supports 20 contacts in 2 rows with 0.8 mm pitch and 1.2 mm row pitch.
Right angle orientation for efficient surface mounting on PCBs. Wide operating temperature range from -55°C to 125°C. Current rating of up to 2.7A for moderate power applications. RoHS compliant for environmental and safety standards.
Explore more high-quality PCB Sockets and connectors at EnvMart to meet your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of up to 2.7A, making it suitable for moderate power applications.
It features a 0.8 mm pitch with 20 contacts arranged in 2 rows, and a row pitch of 1.2 mm.
The housing is made from liquid crystal polymer, while the contacts are beryllium copper alloy plated with gold for enhanced conductivity and corrosion resistance.
It operates across a wide temperature range from -55°C to 125°C, suitable for various industrial and electronic environments.
Yes, this socket complies with RoHS directives, ensuring adherence to environmental safety standards.
The termination type for this model is solder, designed for surface mount applications.
This model features a right angle orientation, facilitating efficient surface mounting on PCBs.
It has a total of 20 contacts, arranged in 2 rows, suitable for compact PCB layouts.
This socket is designed for board-to-board connector systems, ideal for interconnecting PCBs.
Specific dimensions are not provided, but it is designed to support compact PCB configurations with its 0.8 mm pitch and 1.2 mm row pitch.
It is ideal for industrial electronics manufacturing, consumer electronics, and telecommunications equipment requiring reliable board-to-board interconnects.
The country of origin for this socket is India.
