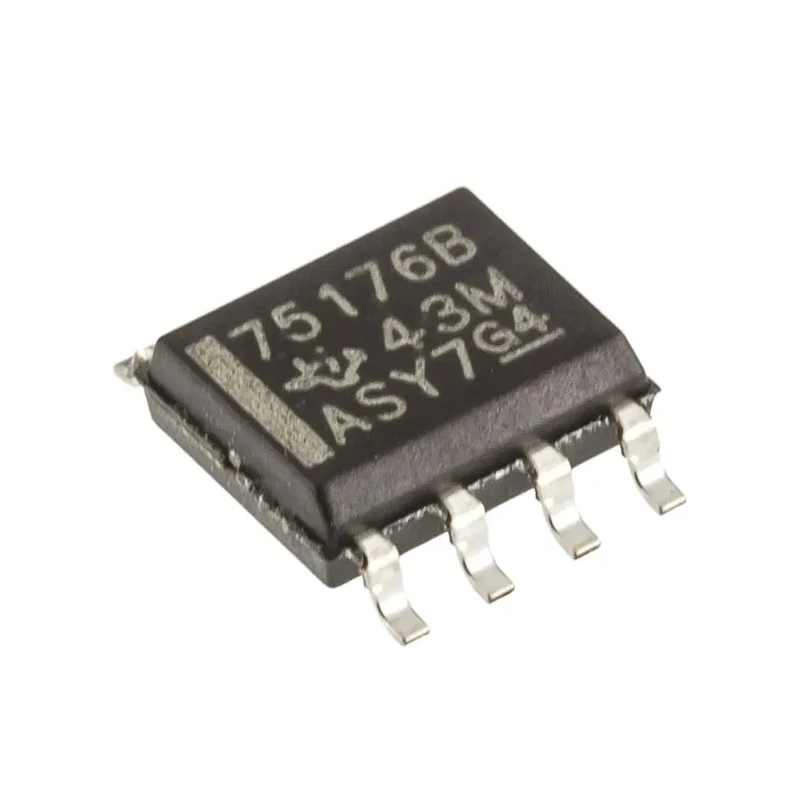

Texas Instruments Line Transceiver SN75176BD, Differential, Non-Inverting, 8-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN75176BD |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN75176B |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 35ns |
| Supply Current | 70mA |
| Maximum Low Level Output Current | 60mA |
| Differential bus transceiver,SN75176BDBrand | Texas Instruments |
| Texas Instruments Line Transceiver, Differential, Non-Inverting, 8-Pin SOICBrand | Texas Instruments |
Key Features
- Operates over a supply voltage range of 4.75V to 5.25V.
- Supports differential input and output signals for robust data transmission.
- Non-inverting polarity ensures signal integrity.
- High speed with a maximum propagation delay of 35 ns at specified load.
- Surface mount package designed for reliable automated assembly.
- Operating temperature range from 0°C to 70°C for industrial applications.
- Maximum output current capability of ±60 mA to drive bus lines effectively.
- Typical supply current is 70 mA during operation.
Product Description
Texas Instruments SN75176BD is a specialized high speed RS-485 bus Line Transceiver suitable for differential, non-inverting data communication applications. Packaged in a compact 8-pin SOIC surface mount form, this IC supports robust industrial communication standards.
The device operates with supply voltages ranging from 4.75V to 5.25V, providing reliable interfacing and low power consumption with a typical supply current of 70 mA. The differential input and output signals enhance noise immunity which is crucial in industrial environments.
Designed with non-inverting polarity, the transceiver ensures faithful signal transmission with a maximum propagation delay of 35 ns at the specified load capacitance. The maximum output current capable of ±60 mA allows strong drive capability for bus lines.
Operating temperature ranges from 0°C to 70°C make this transceiver suitable for general industrial applications requiring moderate temperature tolerance. Its small dimensions (5 mm length × 3.98 mm width × 1.75 mm height) enable dense PCB layouts and easy integration into compact electronic systems.
This Texas Instruments SN75176BD IC is ideal for use in RS-485 line driving and receiving, industrial automation, process control systems, and data acquisition networks. It meets the demands of high speed and reliable bus communication without requiring complex external circuitry.
Operates over a supply voltage range of 4.75V to 5.25V. Differential input and output for noise-immune data signals. Non-inverting polarity supports signal accuracy. High speed with max 35 ns propagation delay. Surface mount SOIC 8-pin package for compact installation.
Operating temperature range 0°C to 70°C suitable for industrial use. Maximum output current ±60 mA drives bus lines effectively. Low supply current consumption at 70 mA. Compact package dimensions: 5 mm × 3.98 mm × 1.75 mm.
Explore more semiconductor solutions and interface ICs on EnvMart’s platform for industrial automation and electronics applications.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a supply voltage range of 4.75V to 5.25V.
The maximum propagation delay is 35 ns at the specified load capacitance.
It has an operating temperature range from 0°C to 70°C, suitable for industrial applications.
The maximum output current capability is ±60 mA, allowing effective driving of bus lines.
This unit is packaged in a compact 8-pin SOIC surface mount form.
It supports differential input and output signals for robust data transmission.
The typical supply current during operation is 70 mA.
The dimensions are 5 mm in length, 3.98 mm in width, and 1.75 mm in height.
It functions as a bus transceiver within the SN75 logic family.
Yes, the surface mount package is designed for reliable automated assembly.
The input type is differential, which enhances noise immunity.
This model has one channel for data transmission.
