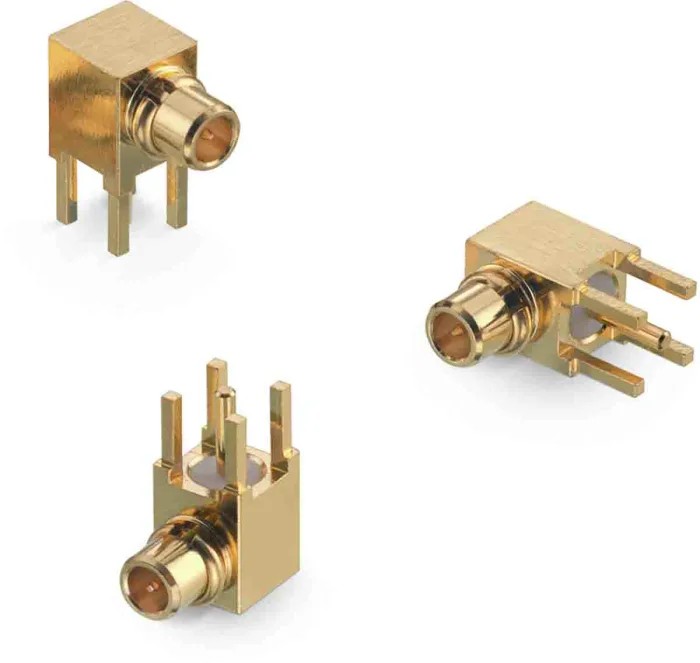

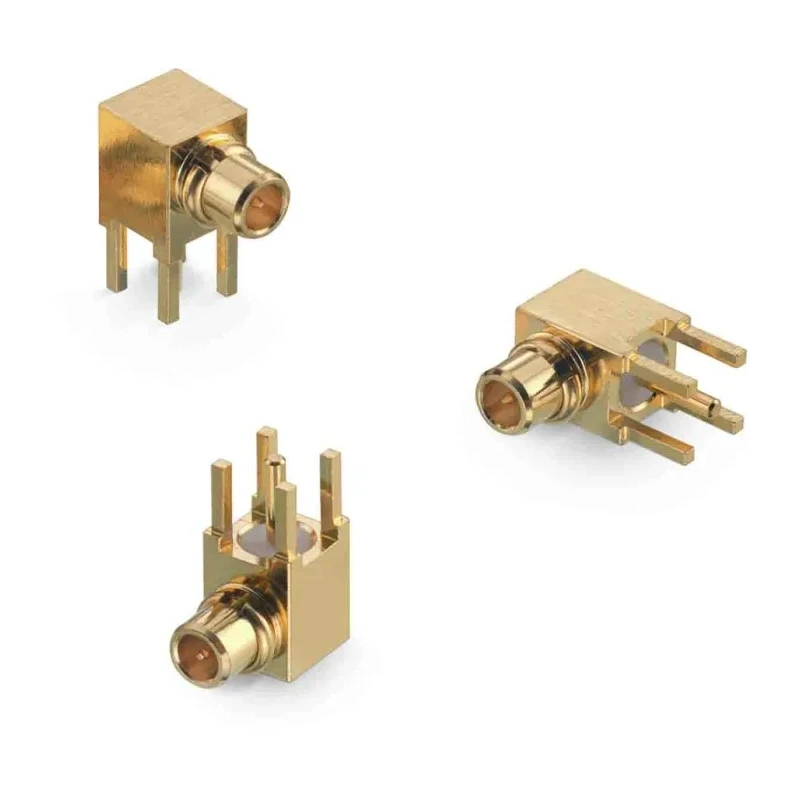

Wurth Elektronik WR-MMCX Series Coaxial Connector Through Hole Male MCX, 50Ω Impedance, Right Angle Body 66013002121501
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | WR-MMCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | MCX |
| Body Plating | Gold over Nickel |
Key Features
- This connector has a robust through hole mount for secure PCB attachment.
- The contact and body plating are gold over nickel ensuring reliable signal integrity.
- Operates across a temperature range of -55°C to 155°C for use in harsh environments.
- Constructed with beryllium copper contacts providing excellent conductivity and durability.
- Right angle orientation allows for space-saving PCB designs.
- Suitable for telecommunication, industrial automation, data communication, and test equipment applications.
- The connector body is standard size facilitating easy integration.
- Termination type is solder, ensuring reliable mechanical and electrical connection.
Product Description
Wurth Elektronik 66013002121501 WR-MMCX Series Coaxial Connector is a high-performance RF coaxial connector designed for through hole mounting on printed circuit boards. It features a male MCX contact type, 50 ohm impedance, and right angle body solder termination, suitable for operating frequencies up to 6GHz. The connector supports applications requiring compact layout and reliable RF performance.
The connector’s design incorporates gold over nickel plating on both the body and contact surfaces to enhance corrosion resistance and signal integrity. Beryllium copper contact material ensures durability and excellent electrical conductivity under varied environmental conditions, with an operating temperature range from -55°C to 155°C.
This WR-MMCX series connector is ideal for industrial machine-to-machine communication, telecommunication base stations, wireless LAN, data communication systems, and precise measurement & test instrumentation including network analyzers. The right angle orientation aids in efficient PCB layout and space management in densely packed electronic assemblies.
Manufactured in Taiwan, this connector guarantees new product quality and complies with no specific standards or approvals, making it ideal for various electronic engineering and development projects requiring reliable RF connections.
Robust through hole PCB mounting ensures stable mechanical connection. Gold over nickel body and contact plating extend connector lifespan and signal quality. Beryllium copper contacts provide excellent electrical performance.
Right angle body configuration supports space-saving PCB designs. Operates effectively at frequencies up to 6GHz across a wide temperature range. Suitable for demanding telecommunication and data communication applications.
Connector size is standard for flexible application use. Explore our Electronics & Electricals category for more Wurth Elektronik Coaxial Connectors and related high-quality electronic components available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates effectively at frequencies up to 6GHz, making it suitable for various RF applications.
The impedance of this connector is 50Ω, which is standard for many RF applications.
It uses a solder termination type, ensuring a reliable mechanical and electrical connection on the PCB.
This model operates across a temperature range of -55°C to 155°C, suitable for harsh environments.
The contacts are constructed from beryllium copper, providing excellent conductivity and durability.
The right angle orientation allows for space-saving PCB designs, facilitating efficient layout in densely packed assemblies.
This connector is manufactured in Taiwan, ensuring new product quality.
The contact and body plating are gold over nickel, enhancing corrosion resistance and signal integrity.
It is suitable for telecommunication, industrial automation, data communication, and test equipment applications.
The connector size is standard, facilitating easy integration into various electronic systems.
The connector has a normal polarity, which is typical for RF connectors of this type.
