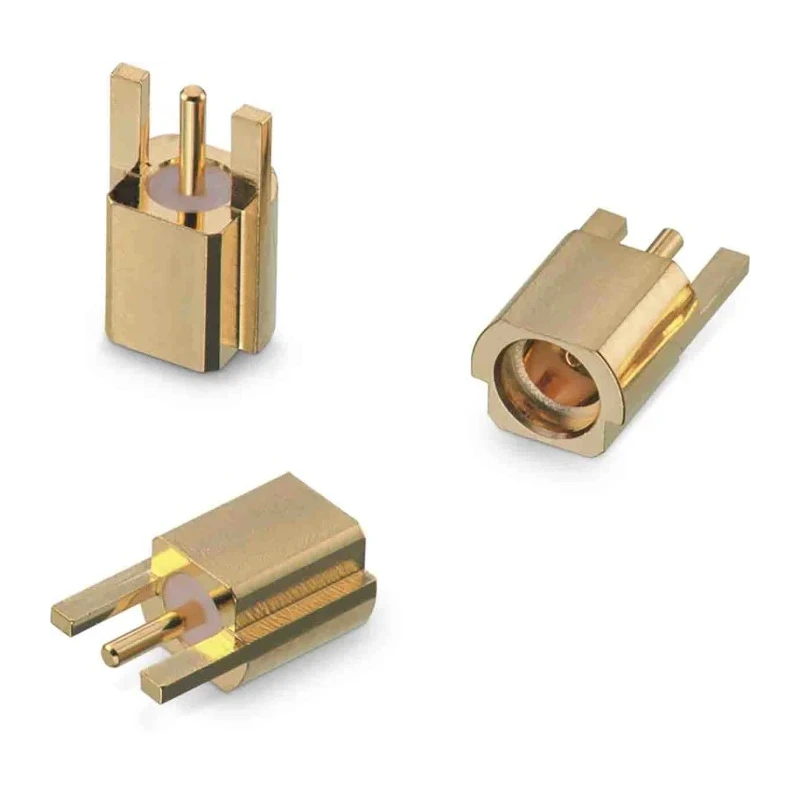

Wurth Elektronik WR-MMCX Series Coaxial Connector Surface Female MCX 50 Ω Straight Body Solder 66012202111305
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Mount Type | Surface |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | WR-MMCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold over Nickel |
Key Features
- This coaxial connector features a surface mount type with a female MCX connector gender.
- The connector offers a standard size with gold over nickel plating for both the body and contact materials.
- It is rated for an impedance of 50 Ohms and operates in temperatures from -55°C to 155°C.
- Suitable for telecommunication, data communication, wireless LAN, and industrial automation applications.
- Termination is via soldering with a straight orientation for easy, snap-on mating.
- Constructed with high-quality beryllium copper contact material and gold plating for reliable signal transmission.
- Manufactured under the WR-MMCX series with no additional certifications.
Product Description
Wurth Elektronik 66012202111305 WR-MMCX Series Coaxial Connector is a high-quality surface mount female MCX connector designed for wire-to-board applications requiring quick, reliable snap-on mating. It supports an operating frequency of up to 6 GHz and is optimized for a 50 Ω impedance environment.
The connector features a straight body orientation with gold over nickel plating on the body and contact parts, ensuring durability and excellent conductivity. Constructed with beryllium copper contacts, it provides both mechanical strength and electrical performance. Its temperature operating range extends from -55°C to 155°C, making it suitable for harsh industrial environments.
This MMCX connector is ideal for telecommunication base stations, industrial machine-to-machine communication, wireless LAN, data communication, and measurement and network analyzer applications. The solder termination type ensures a robust connection on PCBs.
This coaxial connector is surface mounted with a female MCX type and normal polarity. It delivers consistent 50 Ω impedance for accurate RF signal transmission. Gold over nickel plating on body and contacts reduces corrosion while maintaining signal integrity.
Supports operating frequencies up to 6 GHz, suitable for high-frequency applications. Designed to operate reliably in temperature extremes from -55°C to 155°C. Constructed with beryllium copper for durability, mechanical strength, and reliable contact performance.
Termination by solder allows for secure permanently mounted installations.
Originating from Taiwan, Province Of China, this product is manufactured to meet demanding industrial standards in electronic communications and automation sectors. Its WR-MMCX series designation confirms compatibility within the Wurth Elektronik connector family.
Explore more high-quality Coaxial Connectors and electronic components with EnvMart for your industrial, telecommunications, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector is rated for an impedance of 50 Ohms, which is suitable for accurate RF signal transmission.
It supports an operating frequency of up to 6 GHz, making it suitable for high-frequency applications.
The operating temperature range extends from -55°C to 155°C, allowing it to function in harsh industrial environments.
This connector features a solder termination type, ensuring a secure and robust connection on PCBs.
It is constructed with beryllium copper for the contacts and features gold over nickel plating on both the body and contact parts for durability and conductivity.
This model has a straight body orientation, which facilitates easy snap-on mating.
This product originates from Taiwan, Province Of China.
The connector gender is female, making it compatible with male MCX connectors.
It is ideal for telecommunication base stations, industrial machine-to-machine communication, wireless LAN, data communication, and measurement applications.
This connector is designed for surface mounting, which is common in wire-to-board applications.
It is classified as a standard size connector, ensuring compatibility with typical PCB layouts.
This connector is manufactured under the WR-MMCX series but does not list any additional certifications.
