TDK Film Capacitor 33 nF 1 kV AC 1 kV DC Through Hole 2 Pin 15mm Lead Pitch B32652A0333J000

Free Delivery in India | Lowest Global Shipping Charges

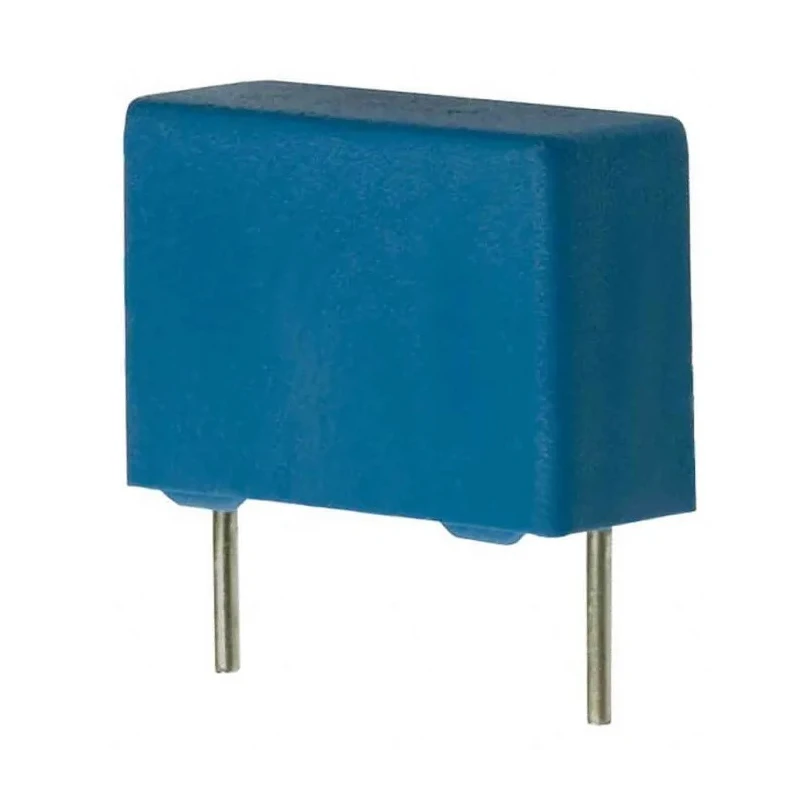

TDK Film Capacitor 33 nF 1 kV AC 1 kV DC Through Hole 2 Pin 15mm Lead Pitch B32652A0333J000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	11mm
Length	18mm
Model	B32652A0333J000
Width	6mm
Mount Type	Through Hole
Series	B32652
Maximum Operating Temperature	110°C
Capacitance	33nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	1kV ac
Rated DC Voltage	1kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Capacitance value of 33 nanofarads ensures stable performance in filtering applications.
Rated for 1 kV AC and 1 kV DC voltage withstand capability.
Constructed with polypropylene film, offering low inductance and high pulse strength.
Designed for a maximum operating temperature of 110°C for durable operation.
Lead pitch of 15 mm with 0.8 mm lead diameter facilitates easy mounting on PCB.
Compliant with RoHS and UL standards for safety and environmental considerations.
Automotive grade compliant to AEC-Q200 Rev D for robustness in automotive applications.

Product Description

The TDK B32652A0333J000 film capacitor is a high-quality polypropylene film capacitor with a capacitance of 33 nF and voltage ratings of 1 kV AC and 1 kV DC. This capacitor uses through-hole mounting with a lead pitch of 15 mm and features a pin count of 2, making it suitable for a variety of electronic circuit applications where high pulse strength and reliability are required.

This film capacitor is designed with parallel wire leads, and the leads are lead-free tinned, enhancing environmental compliance. It supports a maximum operating temperature of 110°C, ensuring durability under demanding thermal conditions often encountered in industrial, automotive, and electronic ballast applications.

With very low inductance and high contact reliability, this capacitor meets stringent quality and safety standards including RoHS, UL, and automotive AEC-Q200 Rev D compliance. Polarity is not a concern for film capacitors, adding versatility in circuit design.

The compact physical dimensions of 18 mm in length, 6 mm in width, and 11 mm in height accommodate space-constrained printed circuit boards. The lead diameter of 0.8 mm enables secure and reliable through-hole soldering.

Capacitance of 33 nF suited for various filtering and timing applications. Rated voltages of 1 kV AC and DC provide high voltage endurance. High pulse strength and low inductance for efficient energy handling. Compliance with RoHS and UL ensures environmentally friendly and certified usage.

Automotive standard AEC-Q200 Rev D makes it suitable for automotive electronics. Compact dimensions allow flexible PCB layout and mounting. Maximum operating temperature of 110°C for reliable performance under heat stress.

This TDK film capacitor is ideal in electronic ballast, switch-mode power supplies, industrial electronics, and automotive electronic systems. Its compliance and quality certifications make it a trusted choice for engineers seeking reliable film capacitors with proven performance. Consider exploring EnvMart's extensive catalog of electronic components and Film Capacitors for complementary parts and bulk purchasing options.
