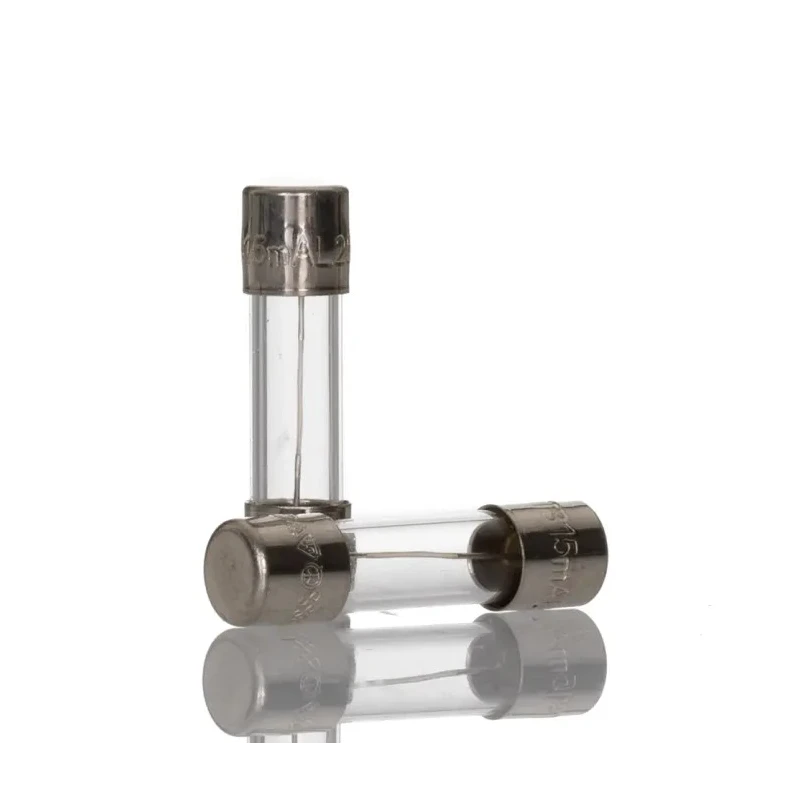

Eaton 315mA T Glass Cartridge Fuse, 5 x 20 mm, 250V AC Fast Acting S506-315-R

Eaton S506-315-R is a 315mA T (fast-acting) glass cartridge fuse designed for protecting electrical circuits from overcurrent and short circuits. The fuse has a standard size of 5 x 20 mm with a total length of 20 mm and a diameter of 5 mm, featuring a transparent glass body that enables easy visual inspection to determine whether the fuse has blown.

This fuse operates at 250 Volts AC and is suitable for use in board and panel circuit protection. The fast-acting characteristics ensure rapid interruption of fault currents while the low breaking capacity rating (LBC) provides safe disconnection without explosive ruptures.

Conforming to multiple international approvals including UL, CSA, IMQ, SEMKO, BSI, VDE, and CCC, the Eaton S506-315-R fuse ensures reliability and safety in diverse industrial, electrical, automation, and commercial applications.

Ideal for safeguarding components and internal circuits, this fuse will blow when current exceeds 315mA, requiring replacement to restore circuit continuity. Its fast-acting 'T' speed rating is suitable for applications requiring quick disconnection yet tolerates short surges to avoid unnecessary interruptions.

It fits all standard 5 x 20 mm fuse holders making it easy to install or replace. Current rating of 315mA at 250V AC. Glass body construction for fuse status visibility. Fast acting 'T' speed with low breaking capacity. Standard 5 x 20 mm size and 20 mm length.

Compliant with multiple international standards. Suitable for industrial, commercial, and electrical automation use. Explore Eaton and other high-quality Cartridge Fuses in the EnvMart Electronics & Electricals category for durable circuit protection devices.
