Souriau Sunbank by Eaton Circular Connector, 18 Contacts, Flange Mount, Standard Size, Plug, Female, IP68 Rated CL1R3101

The Souriau Sunbank by Eaton CL1R3101 circular connector is a high-performance industrial connector designed for harsh and demanding environments. Featuring 18 female crimp contacts arranged in a flange mount standard-sized plug, it provides reliable and secure electrical connections with excellent resistance to environmental factors.

With an IP68 rating, this connector ensures dust-tight sealing and protection against water immersion, making it highly suitable for industrial, manufacturing, and heavy equipment applications. The connector operates at voltages up to 1500V and supports currents up to 13A, allowing for the transmission of significant power levels.

The housing is constructed from robust thermoplastic material, ensuring durability and resistance to mechanical and chemical stress. Gold over nickel plating on copper alloy contacts enhances corrosion resistance and electrical conductivity, guaranteeing long-lasting performance.

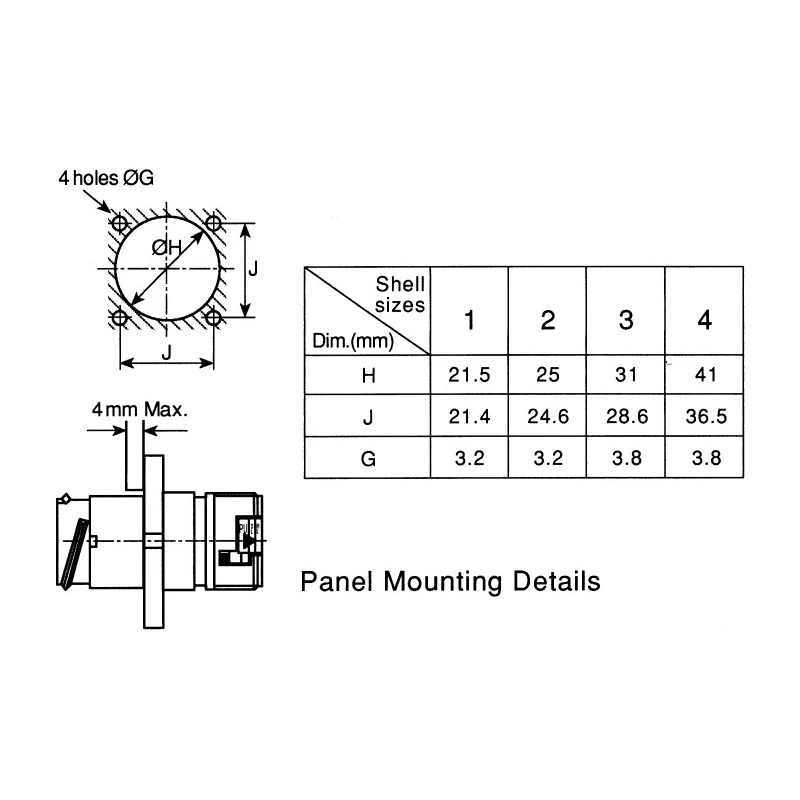

Designed under the Clipper series, it features a threaded mating type and shell size 3, facilitating panel mounts with up to 4mm thickness, compatible with MIL-C-5015 connector sizes. This enables interchangeability and flexibility in installation. The connector supports rear insert contacts secured by a locking retention plate and requires separate purchase of sealing gaskets and contacts if needed.

Operating temperature ranges from -40°C to 125°C, suitable for extreme environmental conditions encountered in industrial, military, and transportation sectors. The connector's scoop-proof design prevents contact damage during blind mating, ensuring safety and durability.

The plug is female with crimp termination for reliable wire attachment. IP68 rating provides superior environmental sealing. Standard size with flange mount suitable for panel installation. Gold over nickel plated copper alloy contacts for enhanced conductivity.

Designed for operating voltages up to 1500V and currents up to 13A. Thermoplastic housing ensures mechanical robustness. Compatible with MIL-C-5015 dimensions supporting interchangeability. Operating temperature range from -40°C to 125°C for demanding environments.

This circular connector is ideal for applications in industrial equipment, automotive, aerospace, military systems, and other fields requiring rugged and reliable electrical interconnections.
