Molex Pico-Clasp Series Straight Surface PCB Header, 2 Contact(s), 1 mm Pitch, 1 Row, Shrouded 501331-0207

Free Delivery in India | Lowest Global Shipping Charges

Molex Pico-Clasp Series Straight Surface PCB Header, 2 Contact(s), 1 mm Pitch, 1 Row, Shrouded 501331-0207

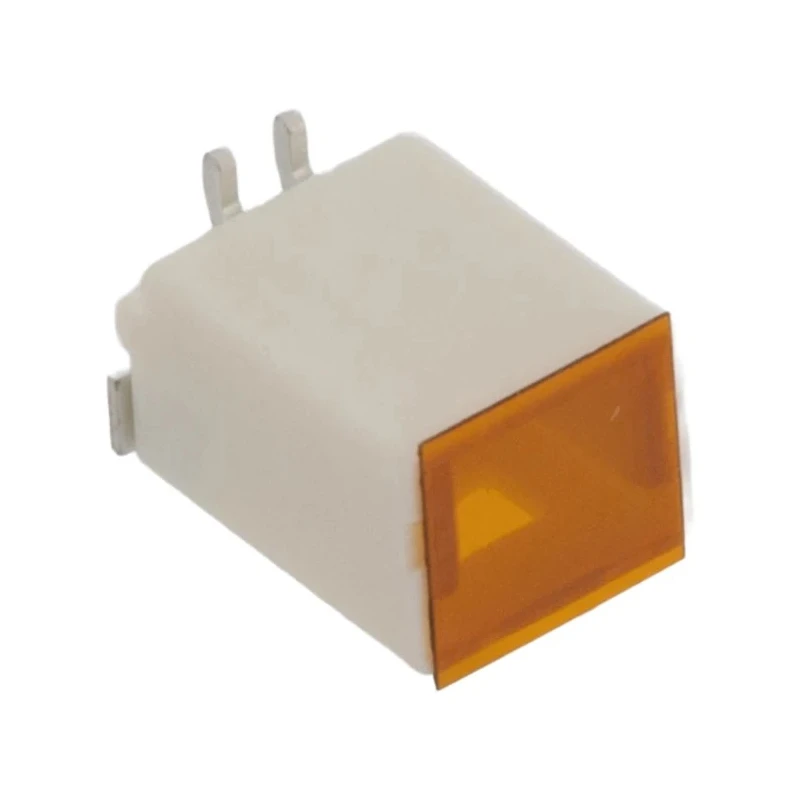

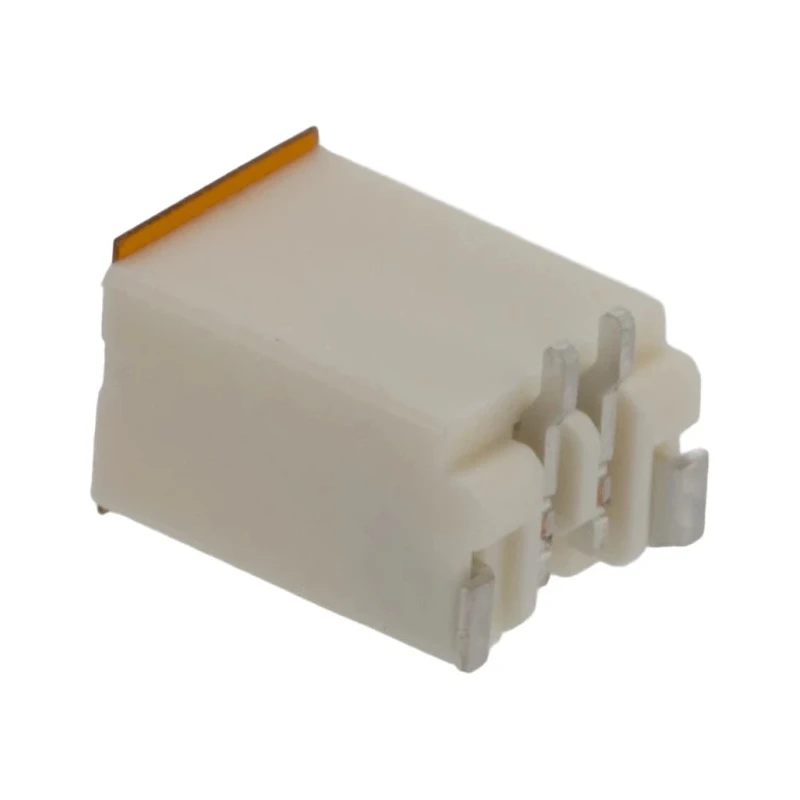

Name: Molex Pico-Clasp Series Straight Surface PCB Header, 2 Contact(s), 1 mm Pitch, 1 Row, Shrouded 501331-0207
Brand: Molex
SKU: 160562
Price: 20.22 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Japan
Voltage	50V
Brand	Molex
Orientation	Straight
Current	1A
Mount Type	Surface
Housing Material	Nylon
Contact Material	Phosphor Bronze
Series	Pico-Clasp
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	1mm

Key Features

Features a shrouded, straight surface mount design for enhanced protection and easy PCB installation.
Includes 2 male phosphor bronze contacts plated with tin for excellent conductivity and durability.
Rated for 1A current and operating voltage up to 50V withstanding temperatures from -40°C to 105°C.
Equipped with a friction lock mechanism to ensure a stable and secure connection.
Supports up to 30 mating cycles, suitable for repeated assembly and disassembly.
Compact 1.0 mm pitch and single row configuration ideal for compact electronic devices.
Made with nylon housing material providing robustness and insulation.
Supports solder termination for strong, reliable electrical connections.

Product Description

Molex 501331-0207 Pico-Clasp Series Straight Surface PCB Header is a compact connector designed for wire-to-board electronic applications requiring dependable, durable connections. This shrouded, straight orientation header features 2 male contacts spaced at a 1 mm pitch in a single row configuration, making it suitable for compact PCB assemblies.

The housing is constructed from high-quality nylon which ensures mechanical strength and electrical insulation, while phosphor bronze contacts plated with tin provide excellent conductivity and resistance to wear. Its solder termination ensures a robust and reliable bond to the PCB.

Engineered to operate within a temperature range from -40°C up to 105°C, this header supports a current rating of 1A and voltage up to 50V, accommodating a broad range of applications. The friction lock mechanism secures the mating connection to prevent accidental disconnections during use.

Durability is enhanced with the ability to withstand up to 30 mating cycles, making it suitable for devices requiring periodic assembly or maintenance. Its surface mount design simplifies PCB layout and assembly, optimizing manufacturing efficiency.

This connector is widely used in automation systems, custom electronic circuit designs, and compact signal or low power distribution devices. It is particularly effective where space constraints demand highly reliable, small-pitch wire-to-board connections.

Shrouded design for contact protection and reliability. Phosphor bronze, tin-plated contacts for superior conductivity. Solder termination method ensures secure board attachment. 1A current rating and 50V voltage capacity support versatile applications.

Friction lock secures mating connections against accidental disengagement. Temperature operating range from -40°C to 105°C to ensure performance stability. Compact 1.0 mm pitch and single row layout optimize space usage.

Durable nylon housing material provides mechanical and electrical insulation. Country of Origin: Japan. Explore more high-quality PCB connectors and headers in our Electronics Components category at EnvMart.
