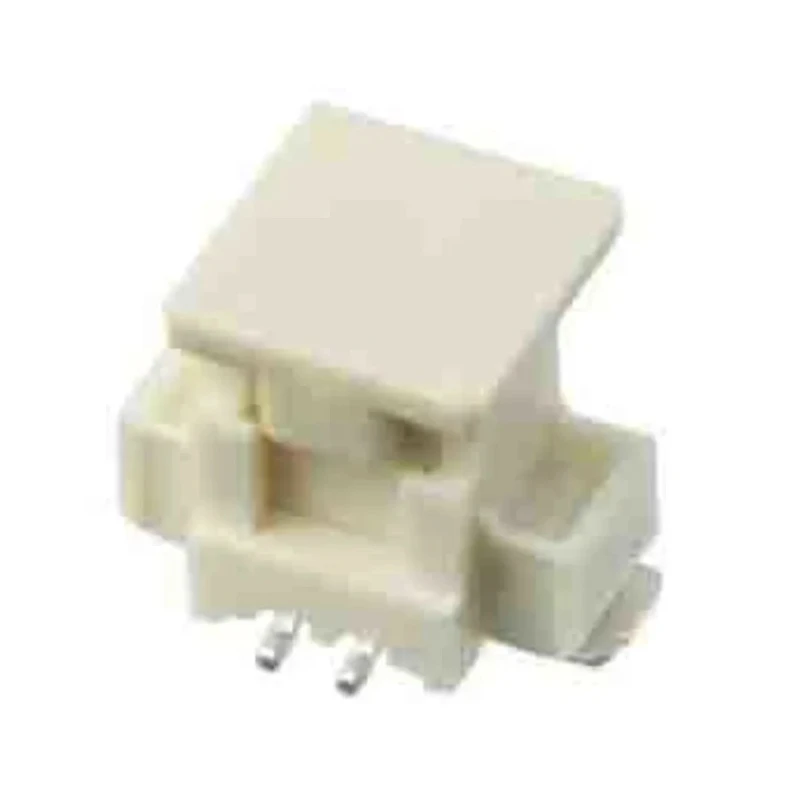

Molex 53398 Series Vertical Surface PCB Header, 2 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 533980267

Molex 533980267 is a high-quality PCB header from the 53398 series, designed for vertical surface mounting and featuring 2 contacts with a 1.25 mm pitch and single row configuration. This shrouded header provides robust protection against accidental disconnects, making it reliable for electronic applications requiring compact and secure connections.

The connector’s housing is constructed from durable nylon material, while the contacts are made of phosphor bronze plated with tin to ensure excellent electrical conductivity and corrosion resistance. Rated for a maximum current of 1A and a voltage of 125V, the header meets industry standard UL E29179 for safety and performance.

This PCB header is optimized for surface mount technology (SMT) assembly, with tail pin lengths of 0.6 mm designed to withstand automated soldering processes. Operating effectively within a temperature range of -40°C to 85°C, it suits various industrial, electronics manufacturing, automation systems, and consumer electronics applications where space-saving and reliable PCB connections are critical.

The 53398 series PCB header is part of the PicoBlade connector system, compatible with a range of housings and cable assemblies for seamless integration. It is engineered to withstand up to 30 mating cycles, ensuring long-term durability for frequent usage scenarios.

Applications include control circuitry in automation, signal routing on compact printed circuit boards, and wire-to-board connections demanding secure and shrouded interfaces. Vertical surface mount with 2 contacts and 1.25 mm pitch for compact PCB designs.

Shrouded to prevent accidental disconnection and enhance mechanical protection. Phosphor bronze contacts with tin plating for reliable electrical performance. Rated for 1A current and 125V voltage ensuring suitability for low-power electronics.

Supports industrial, commercial, and consumer electronic device assemblies. Tail pin length of 0.6 mm optimized for surface mount soldering automation. Durable nylon housing withstands harsh operating temperatures from -40°C to 85°C.

Complies with UL E29179 standard confirming quality and safety compliance.

This Molex PCB header is a precise and durable solution for high-density PCB assemblies, ensuring reliable electrical contacts and mechanical protection in demanding industrial and commercial electronic applications. Explore more PCB Headers and related connectors at EnvMart to find suitable components for your next project.
