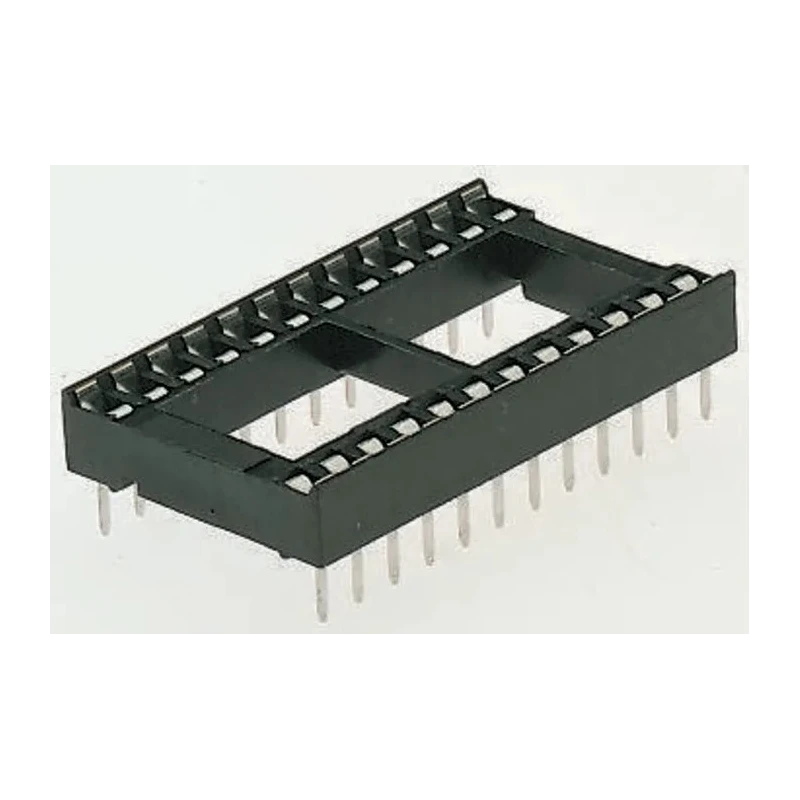

Winslow W3100 Series 2.54 mm Pitch Vertical 22 Way Through Hole Stamped Pin Open Frame DIL Socket 10A W3122TRC

Winslow W3122TRC DIL Socket 22 Way 2.54 mm Pitch is a premium electronic connector designed for vertical mounting applications requiring reliable IC socket performance. The through hole stamped pin design features an open frame construction which supports easy IC insertion and robust connection retention in dense circuit layouts.

The housing is made of durable polybutylene terephthalate, providing excellent thermal stability up to 150°C maximum operating temperature.

The socket supports 22 contacts spaced at 2.54 mm pitch, with a row width of 10.16 mm, length of 27.81 mm, depth of 12.68 mm, and width of 4.5 mm. It is rated for a current capacity of 10 amperes, suitable for moderate power applications.

This W3100 series socket offers a vertical orientation with dual wipe contact design to ensure secure electrical connection and overstress protection with a 35-degree angled contact preventing IC leg misalignment during insertion. Its solder termination and through hole mounting allow stable mechanical and electrical attachment to PCBs.

22 contacts with 2.54 mm pitch and vertical orientation. Phosphor bronze contacts with tin plating for durability. Polybutylene terephthalate open frame housing for thermal resistance. Rated for 10A current and 150°C max operating temperature.

Through hole mount with solder termination. Dimensions: 27.81 mm length, 12.68 mm depth, 4.5 mm width. Manufactured in Taiwan, Province Of China adhering to W3100 standards.

Ideal for electronics manufacturing, industrial automation, and high-density PCB applications requiring reliable IC socket connections. Explore more DIL Sockets and connectors in the EnvMart catalog for diverse electronic component needs.
