Cinch FD 9 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector Male FDEB-9P1AENTI2/1
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 200V |
| Brand | Cinch |
| Orientation | Right Angle |
| Current | 5A |
| Model | FDEB-9P1AENTI2/1 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | FD |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -25°C |
| Pitch | 2.76mm |
| Standards/Approvals | UL 94 V-0 |
| Contact Plating | Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Flammability Rating | UL94V-0 |
| 9W RT/ANGLE FILTER D PLGBrand | NEUTRAL |
Key Features
- The connector features 9 contacts with right angle orientation for PCB mounting.
- Supports 5A current and 200V voltage ratings for reliable electrical performance.
- Housing is Polyethylene Terephthalate with UL 94 V-0 flammability rating.
- Contacts are male gender, solder termination type, plated with nickel on copper alloy.
- Pitch measures 2.76 mm, designed for through-hole mounting on PCBs.
- Operating temperature range from -25°C to 125°C for industrial environments.
- Meets MIL-STD-220 attenuation standard for EMI/RFI interference protection.
- Includes 1000 pF ceramic capacitor filtration to limit cable-borne EMI effectively.
Product Description
Cinch FDEB-9P1AENTI2/1 D-Sub Connector 9 Way Right Angle 2.76 mm Pitch Through Hole Male is engineered for industrial, military, commercial, and computer interfacing applications requiring high reliability and EMI/RFI protection.
This right angle connector mounts through the PCB and features 9 male contacts constructed from nickel-plated copper alloy, providing excellent corrosion resistance and conductivity.
The Polyethylene Terephthalate housing offers UL 94 V-0 flammability rating, ensuring safety in demanding environments. Operating temperatures span from -25° to 125°C, making it suitable for diverse environmental conditions.

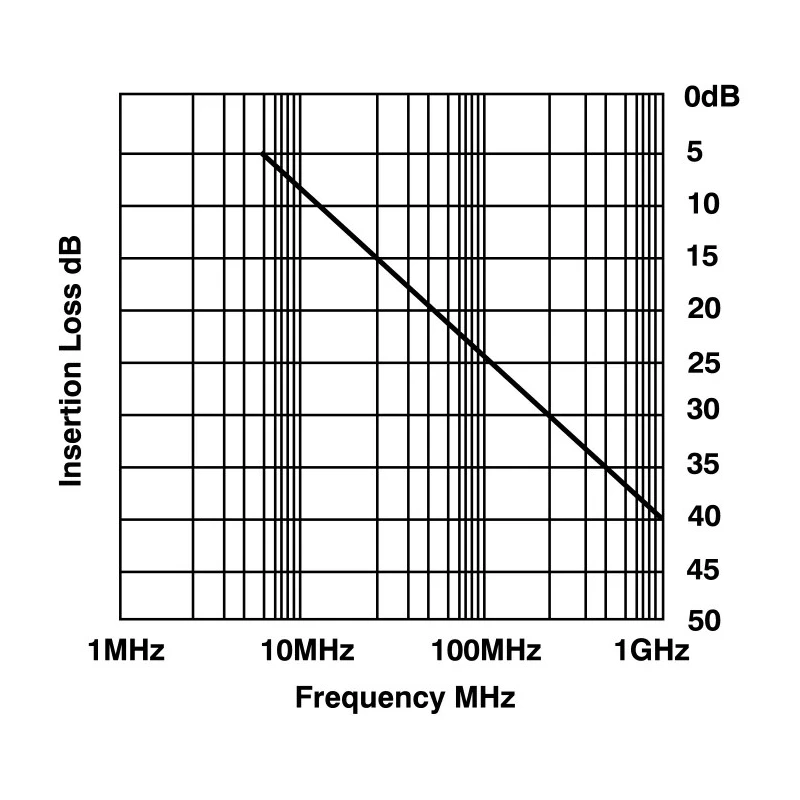

Designed with integrated discrete capacitive elements, it provides superior EMI/RFI interference protection in VHF and UHF frequency bands by filtering signals with an embedded 1000 pF ceramic capacitor.
The connector complies with the MIL-STD-220 attenuation standard and incorporates high quality machined contacts and bright tin finish steel backshells that shield against electromagnetic disturbances, enhancing signal integrity.
Its solder termination contact type and precise 2.76 mm pitch accommodate compact PCB designs with dependable mechanical and electrical connections. This connector's right angle orientation facilitates space-saving PCB layouts.
Meets military and industrial standards for durability and performance. Filter capacitors within each contact limit cable-borne interference effectively. Ideal for applications in industrial controls, telecommunications, computing, and embedded systems.
Manufactured in the United Kingdom with stringent quality controls. Choose this Cinch FD series connector for secure, shielded, and reliable electronic connections in advanced electronic assemblies. Explore related D-Sub Connectors and enhance your product assembly selections on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 5A.
This connector supports a voltage rating of 200V.
The pitch size of this D-Sub connector is 2.76 mm.
This model uses a solder termination type for its contacts.
The housing is made of Polyethylene Terephthalate, and the contacts are made from nickel-plated copper alloy.
The operating temperature range for this connector is from -25°C to 125°C.
This connector features 9 contacts.
The housing material has a UL 94 V-0 flammability rating.
This connector is suitable for industrial controls, telecommunications, computing, and embedded systems applications.
Yes, it meets the MIL-STD-220 attenuation standard for EMI/RFI interference protection and includes a 1000 pF ceramic capacitor for filtering.
This connector is manufactured in the United Kingdom.
The orientation of this connector is right angle, designed for through-hole mounting on PCBs.
