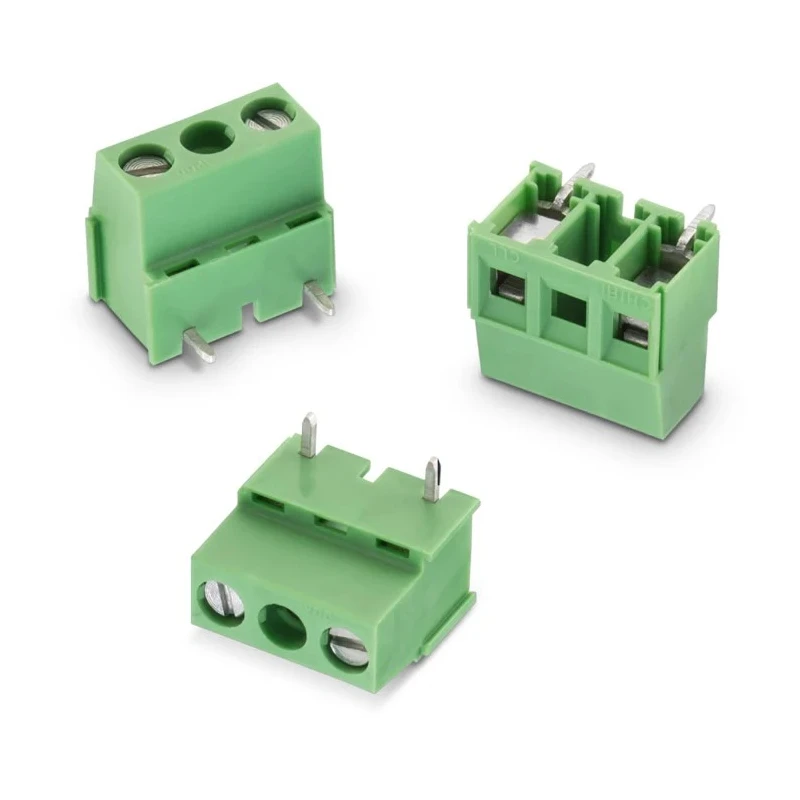

Wurth Elektronik PCB Terminal Block, 1-Contact, 10 mm Pitch, Through Hole Mount, 24A Current, 750V AC, Vertical 691216800101
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 750V ac |
| Brand | Wurth Elektronik |
| Colour | Green |
| Orientation | Vertical |
| Current | 24A |
| Length | 15mm |
| Depth | 9.8mm |
| Width | 13.8mm |
| Mount Type | Through Hole |
| Series | 2168 |
| Number of Rows | 1 |
| Pitch | 10mm |
| Standards/Approvals | cULus, RoHS, VDE |
| Number of Contacts | 1 |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3.31mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 12AWG |
Key Features
- Designed for through hole mount for secure PCB installation.
- Supports a current rating of 24A for demanding electrical requirements.
- Compatible with wire sizes from 0.05mm² to 3.31mm² (AWG 30 to 12).
- Vertical orientation in distinctive green color ensures easy identification.
- Operates at voltage up to 750V AC suitable for industrial applications.
- Compact dimensions with 15mm length, 13.8mm width and 9.8mm depth for space-saving design.
- Complies with cULus, RoHS, and VDE standards assuring safety and environmental compliance.
- Made in Italy reflecting quality manufacturing standards.
Product Description
Wurth Elektronik 691216800101 PCB Terminal Block is a precision-engineered electronic component designed for secure and efficient connections on printed circuit boards (PCBs). Featuring a single contact with a 10 mm pitch and through hole mounting, this component facilitates robust and reliable electrical junctions in various applications.
Its vertical orientation and green coloration provide visual clarity and systematic arrangement in complex circuitry. Rated for a maximum current of 24 amperes and voltage endurance of up to 750 volts AC, it meets the typical demands of industrial, commercial, and electronic manufacturing environments.
The terminal block accommodates wire sizes from 0.05 mm² to 3.31 mm² (equivalent to 30 to 12 AWG), offering flexibility for various wiring specifications. Its compact size, measuring 15 mm in length, 13.8 mm in width, and 9.8 mm in depth, allows integration into limited-space assemblies without compromising performance.
Manufactured in Italy, this terminal block complies with cULus, RoHS, and VDE standards, ensuring high safety levels, environmental responsibility, and quality assurance expected in professional electrical components.
Through hole mounting for secure PCB attachment. Supports a wide range of wire sizes from 0.05mm² to 3.31mm². Capable of handling 24A current and 750V AC voltage. Vertical contact orientation in green color coding. Compact size fitting space-conscious designs.
Compliance with international safety and environmental standards. Ideal for industrial, manufacturing, and power connector applications.
This terminal block is perfect for professionals and engineers working in electronics, industrial automation, power distribution, and equipment manufacturing who require dependable PCB connection solutions. The Wurth Elektronik 2168 Series ensures modular terminal block options to suit various industrial marketplace needs.
Explore EnvMart categories for more PCB Terminal Blocks and components for diverse industrial and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 24A, making it suitable for demanding electrical requirements.
It operates at a voltage of up to 750V AC, suitable for industrial applications.
The terminal block features a pitch of 10 mm, which is standard for many PCB applications.
It accommodates wire sizes ranging from 0.05 mm² to 3.31 mm², equivalent to 30 AWG to 12 AWG.
The dimensions are 15 mm in length, 13.8 mm in width, and 9.8 mm in depth, allowing for space-saving designs.
This unit is designed for through hole mounting, ensuring secure attachment to printed circuit boards.
It comes in a distinctive green color, which aids in visual identification.
It complies with cULus, RoHS, and VDE standards, ensuring safety and environmental compliance.
The contacts are oriented vertically, which is beneficial for certain PCB layouts.
It is manufactured in Italy, reflecting quality manufacturing standards.
This model features a single contact, suitable for specific connection needs.
It belongs to the Wurth Elektronik 2168 series, which offers modular terminal block options.
