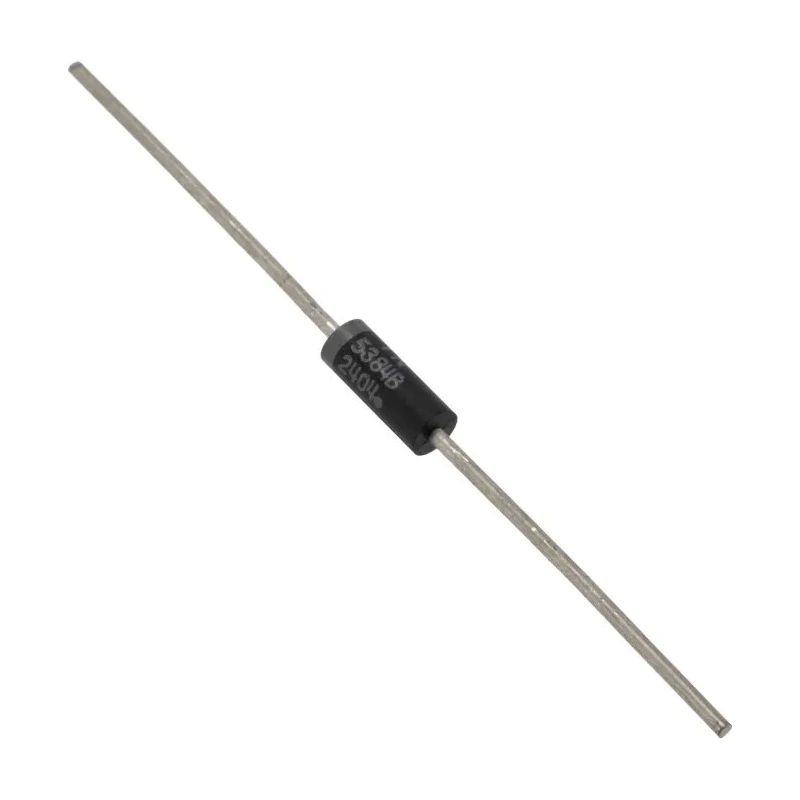

onsemi 160 V 5 W Voltage Regulator Zener Diode, Single Diode, Through Hole 2-Pin DO-15 1N5384BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5384BG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 8mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 160V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 350Ω |
Key Features
- Designed as a voltage regulator with 5 watt maximum power dissipation.
- Features a tight voltage tolerance of ±5% for stable operation.
- Built in a DO-15 through-hole package with 2 pins for easy PCB mounting.
- Tested at 8 mA to ensure performance consistency and durability.
- Operating temperature range from -65°C to 200°C for high reliability.
- Maximum reverse leakage current of 500 nA minimizes leakage losses.
- Maximum Zener impedance of 350 Ω to maintain voltage regulation characteristics.
- Suitable for industrial, automotive, power supply, and electronic component uses.
Product Description
onsemi 1N5384BG is a high-quality single voltage regulator Zener diode designed for robust electronic and electrical applications. It features a nominal Zener voltage of 160 V and a maximum power dissipation rating of 5 watts, optimized for voltage stabilization tasks in circuits.
This diode is housed in a durable DO-15 through-hole package with two pins, facilitating straightforward assembly on PCB boards. It maintains a tight voltage tolerance of ±5%, ensuring precise voltage regulation across varying electronic environments.
With an operating temperature range from -65°C up to 200°C and a maximum reverse leakage current of 500 nA, the 1N5384BG offers dependable performance under demanding conditions. The maximum Zener impedance is rated at 350 Ω, supporting stable voltage characteristics during use.
Test current is standardized at 8 mA, ensuring the diode’s characteristics are consistent and reliable across installations. The physical dimensions (height 3.68 mm, length 8.89 mm) make it suitable for compact circuit designs.
This diode finds applications in industrial equipment, power supply regulation, automotive systems, and discrete semiconductor uses where tight voltage regulation and thermal stability are critical.
Designed as a voltage regulator with 5 watt maximum power dissipation. Features a tight voltage tolerance of ±5% for stable operation. Built in a DO-15 through-hole package with 2 pins for easy PCB mounting. Tested at 8 mA to ensure performance consistency and durability.
Operating temperature range from -65°C to 200°C for high reliability. Maximum reverse leakage current of 500 nA minimizes leakage losses. Maximum Zener impedance of 350 Ω to maintain voltage regulation characteristics. Height of 3.68 mm and length of 8.89 mm compact size for various electronic applications.
Explore more on semiconductor voltage regulator diodes at EnvMart for quality assured electronic components designed to meet industry needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of the 1N5384BG is 160 V, making it suitable for voltage stabilization tasks in circuits.
This model has a maximum power dissipation rating of 5 watts, optimized for voltage regulation applications.
The operating temperature range for the 1N5384BG is from -65°C to 200°C, ensuring high reliability under various conditions.
It is housed in a DO-15 through-hole package with two pins, facilitating easy assembly on PCB boards.
The maximum reverse leakage current for this diode is 500 nA, which helps minimize leakage losses during operation.
The maximum Zener impedance is rated at 350 Ω, which supports stable voltage regulation characteristics.
The test current for the 1N5384BG is standardized at 8 mA, ensuring consistent performance across installations.
The diode has a height of 3.68 mm and a length of 8.89 mm, making it suitable for compact circuit designs.
This diode is suitable for applications in industrial equipment, power supply regulation, and automotive systems where voltage stabilization is critical.
The 1N5384BG has one element per chip, designed as a single diode configuration.
It features a tight voltage tolerance of ±5%, ensuring stable operation across varying electronic environments.
The 1N5384BG is manufactured in India, ensuring adherence to local production standards.
