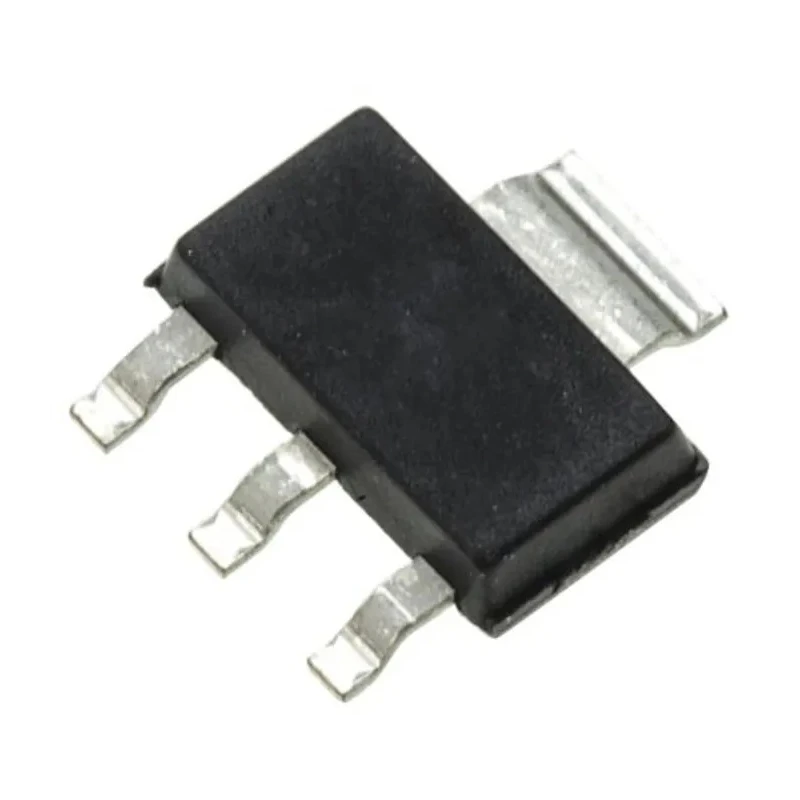

onsemi Digital Transistor N-Channel Surface Mount SOT-223 3-Pin, 2.1W Maximum Power Dissipation, 150°C Maximum FQT1N60CTF-WS

Free Delivery in India | Lowest Global Shipping Charges

onsemi Digital Transistor N-Channel Surface Mount SOT-223 3-Pin, 2.1W Maximum Power Dissipation, 150°C Maximum FQT1N60CTF-WS

Name: onsemi Digital Transistor N-Channel Surface Mount SOT-223 3-Pin, 2.1W Maximum Power Dissipation, 150°C Maximum FQT1N60CTF-WS
Brand: onsemi
SKU: 157601



Category Digital Transistor Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Length	6.5mm
Model	FQT1N60CTF-WS
Width	3.5mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOT-223
Standards/Approvals	RoHS Compliant
Pin Count	3
Transistor Polarity	N-Channel
Maximum Power Dissipation Pd	2.1W
Transistor Configuration	Single

Key Features

Maximum power dissipation of 2.1 watts enables efficient handling of power within circuits.
Operates at a maximum temperature of 150 degrees Celsius for demanding environments.
Package type SOT-223 ensures surface mount compatibility for compact assembly.
Three-pin configuration with N-channel transistor polarity suits switching and amplification tasks.
Designed with RoHS compliance for environmental safety.
Physical dimensions of 6.5 mm length and 3.5 mm width optimize space on PCB layouts.
Ideal for switched mode power supplies, active power factor correction, and electronic lamp ballasts.
Single transistor configuration utilizing advanced MOSFET technology reduces on-state resistance.

Product Description

onsemi FQT1N60CTF-WS is a digital transistor in a surface mount SOT-223 package with N-channel polarity and three pins, offering a maximum power dissipation of 2.1W and capable of operating at temperatures up to 150°C. This device leverages advanced planar stripe and DMOS MOSFET technology to deliver low on-state resistance and superior switching performance, suitable for applications in industrial electronics.

Its compact size, at 6.5 mm length and 3.5 mm width, allows efficient PCB space utilization, with a surface mount design that facilitates automated assembly in manufacturing environments. The transistor is compliant with RoHS standards, affirming its environmental friendliness.

Typical applications include switched mode power supplies, active power factor correction circuits, and electronic lamp ballasts where efficient power handling and reliable switching are critical. The device's N-channel configuration and single transistor form factor support a variety of industrial and commercial electronic designs.

The FQT1N60CTF-WS offers a low gate charge of around 4.8 nC and a low Crss capacitance of approximately 3.5 pF, features contributing to fast and energy-efficient switching. It is engineered to withstand high avalanche energy, adding robustness to the device when subjected to transient voltage spikes.

Maximum power dissipation: 2.1 watts. Maximum operating temperature: 150°C. Package type: SOT-223 surface mount. Pin count: 3 pins with N-channel polarity. RoHS compliant for environmental safety. Length: 6.5 mm; Width: 3.5 mm.

Applications include power supplies, PFC, electronic ballasts. Advanced MOSFET technology for reduced on-state resistance and superior switching. Low gate charge and capacitance supporting fast operation.

This transistor is part of the semiconductor Digital Transistor category used extensively in industrial, power management, and electronic device manufacturing sectors. It is recommended for engineers and designers seeking a reliable, efficient transistor for high-performance switching applications.
