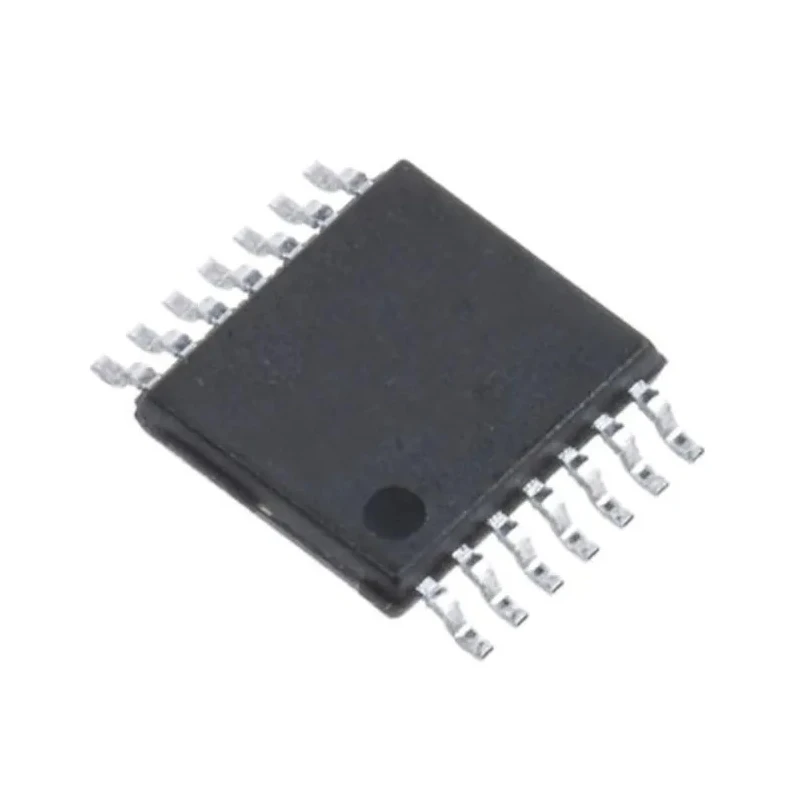

onsemi 6 6-Input Buffer Logic Gate 14-Pin TSSOP LCX CMOS Open Drain Buffer 74LCX07MTCX

onsemi 74LCX07MTCX is a 6 6-input buffer logic gate integrated circuit featuring open drain outputs and built using advanced LCX CMOS technology. The device delivers high speed operation with low power consumption suitable for digital signal buffering in industrial and commercial electronics.

The six independent buffers each accept 6 CMOS logic inputs and offer 5V tolerant input voltages, allowing seamless interfacing between 5V and 3V digital systems. The open drain output structure enables wired logic arrangements such as active HIGH wire AND or active LOW wire OR functions, enhancing design flexibility.

Operating voltage ranges from 2.3V to 5.5V, with a maximum propagation delay of 3 nanoseconds at typical load capacitance, ensuring rapid signal transitions. Its patented noise and electromagnetic interference (EMI) reduction circuitry improves signal integrity in noisy environments.

The device supports a wide industrial operating temperature range from -40°C to +85°C, making it suitable for harsh environmental conditions. Electrostatic discharge (ESD) protection ratings comply with human body model > 2000 V and machine model > 200 V for robust handling during manufacturing and operation.

The package type is a small outline TSSOP with 14 pins, measuring 5.1 mm in length and 1.05 mm in height, facilitating space-saving PCB layouts in compact electronic assemblies. The device contains six buffer elements, each with 6 inputs, providing robust buffering capabilities.

Inputs are 5V tolerant, allowing interface between 5V and 3V logic levels. Open drain outputs enable wired-AND and wired-OR functions for signal logic. Operates within a supply voltage range of 2.3V to 5.5V with low power dissipation.

Maximum propagation delay time is 3 ns under typical load conditions, ensuring fast signal processing. Designed with patented noise and EMI reduction circuitry for stable and reliable operation. Wide operating temperature range from -40°C to 85°C suits industrial environments.

ESD protection exceeds 2000 V human body model and 200 V machine model ratings. Compact 14-pin TSSOP package with dimensions 5.1mm length and 1.05mm height enables space-efficient PCB designs.

This buffer logic gate IC is widely used in industrial automation, embedded systems, digital signal processing, telecommunications, and other commercial electronic applications requiring reliable buffering and level shifting between logic voltage domains.
