TE Connectivity 2.54 mm Pitch Vertical 8 Way Through Hole Standard Pin Ladder DIL Socket 1-2199298-2

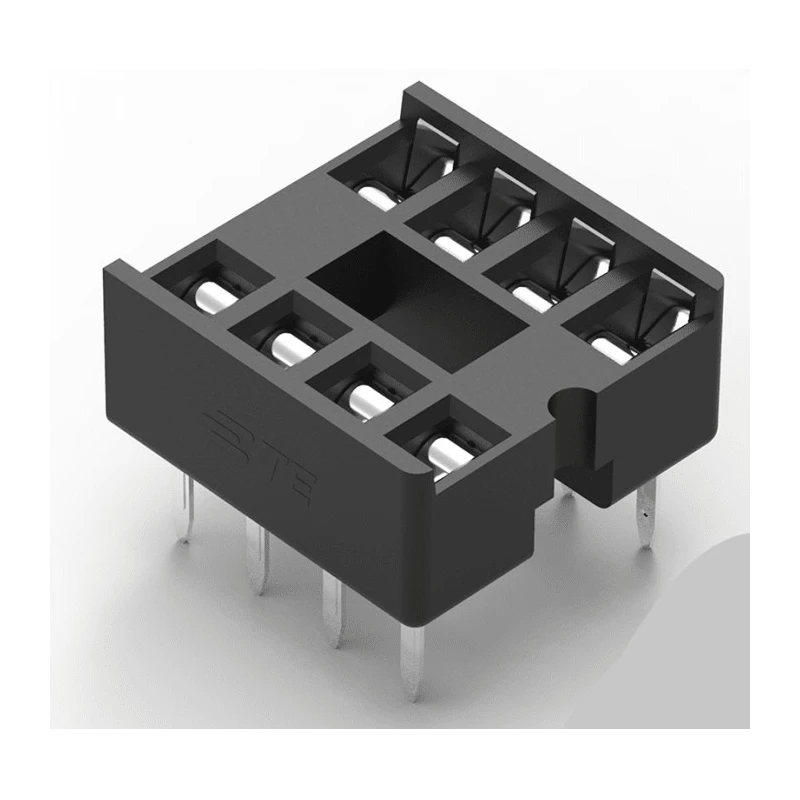

TE Connectivity 1-2199298-2 DIL Socket with a 2.54 mm pitch and 8 way vertical standard pin ladder design provides a high-quality and reliable interface for integrated circuit connection to printed circuit boards (PCBs). This through hole mounted socket features phosphor bronze contacts along with a polybutylene terephthalate housing to ensure durability and stable performance under various industrial conditions.

The socket supports a current rating of 1 Ampere and a voltage rating of 250V AC, making it suitable for many applications including industrial controls, intelligent building systems, medical devices, military electronics, and other embedded systems. Its operating temperature range from -40°C to 105°C facilitates usage in demanding environmental conditions.

Manufactured with tin plated contacts for corrosion resistance and a vertical orientation, it guarantees secure and efficient connections with easy solder termination to PCBs. Dimensions such as 7.62 mm length, 10 mm width, 7.62 mm row width and 5.1 mm depth ensure precise fit during PCB design and assembly.

The ladder frame construction allows end-to-end and side-to-side stackable configurations, enhancing modular system build-outs. This socket enables quick IC mating and unmating, simplifying field IC replacement and avoiding overheating during soldering processes.

This DIL Socket supports 8 contact positions ensuring versatile compatibility. The contact material of phosphor bronze combined with tin plating assures longevity and reliable electrical performance. Designed for through hole PCB mounting with solder termination.

Wide temperature range and voltage rating meet industrial standard requirements. Vertical orientation provides efficient circuit layout and component density. Robust housing material polybutylene terephthalate enhances mechanical strength.

Ladder frame design supports stackability for enhanced system flexibility and upgrades. Ideal for use in electronics manufacturing, repair, and prototyping environments. Prevents IC overheating and facilitates fast replacement, optimizing production efficiency.

TE Connectivity's extensive portfolio of DIP sockets offers solutions ranging from 6 to 48 contacts with numerous termination and plating options. These sockets are engineered to provide maximum reliability and flexibility for a wide range of electronics industries and applications.
