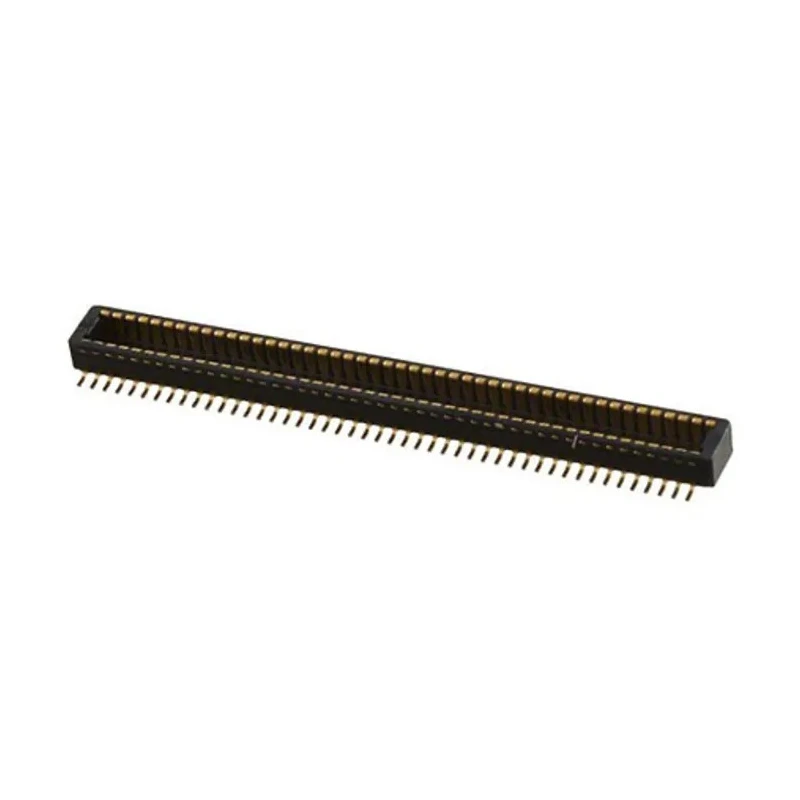

Hirose DF40 Series Straight Surface PCB Header 90 Contact 0.4 mm Pitch 2 Row Shrouded DF40
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | DF40 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | DF40 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -35°C |
| Number of Rows | 2 |
| Pitch | 0.4mm |
| Contact Plating | Gold |
| Number of Contacts | 90 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Board-to-FPC |
Key Features
- High density and low profile design suitable for miniature devices.
- Housing made of durable Liquid Crystal Polymer for enhanced protection.
- Gold-plated phosphor bronze contacts ensure excellent conductivity and durability.
- Features a locking mechanism with tactile audible click for mating assurance.
- Reinforced structure with shock absorbing ribs to resist impact and vibrations.
- Designed with guide ribs providing self-alignment during mating by 0.33 mm.
- Nickel plated barriers prevent solder wicking enhancing solder joint quality.
- Operating temperature range from -35°C to 85°C for versatile applications.
Product Description
Hirose DF40 Series Straight Surface PCB Header DF40 with 90 contacts, 0.4 mm pitch, in a 2-row shrouded configuration provides reliable and high-density board-to-board and board-to-FPC connector solutions. The connector is designed for applications requiring miniature devices such as mobile phones, LCD displays, developer chip sets, notebook PCs, and keyboards.
This PCB Header series features a low profile and space-saving design with widths as small as 3.38 mm, allowing for high-density mounting with a vacuum area supporting pick and place mounting processes. The contacts are manufactured from phosphor bronze with gold plating providing excellent electrical conductivity and durability.
The locking mechanism gives a positive tactile click once mated, ensuring mating assurance and preventing unwanted disconnection. Guided ribs facilitate the self-alignment of connectors during mating with a precision of 0.33 mm. Nickel plated barriers protect contact areas from solder wicking, improving solder joint integrity.
The reinforced housing includes shock absorbing ribs which protect the connector from damage due to impact or vibration, making it robust for industrial and commercial electronics use. The shrouded housing protects contacts from dust and debris, preventing electrical shorting and enhancing longevity.
Rated for operation between -35°C and 85°C, this surface mount connector is designed with solder termination for easy PCB assembly. It supports a voltage of 30V and a current rating of 300mA, making it suitable for low power signal level connections in electronic assemblies. The connector system supports both board-to-board and board-to-FPC connections.
High density, low profile design. Wide range of stack heights enhances design versatility. High contact reliability with gold-plated phosphor bronze contacts. Locking mechanism with audible click for mating assurance. Shock absorbing ribs provide enhanced mechanical protection.
Guide ribs for precise self-alignment during mating. Nickel plated barriers prevent solder wicking. Operating temperature range from -35°C to 85°C. Surface mount solder termination type. Ideal for mobile phones, LCDs, notebooks, and developer kits.
For more options in PCB connectors and headers, explore the wide range available with Hirose products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Hirose DF40 Series PCB header is 0.4 mm.
This model has a current rating of 300mA.
The maximum operating temperature for this connector is 85°C.
The DF40 Series header features 90 contacts.
The contacts are made from phosphor bronze and are gold-plated for enhanced conductivity.
This connector uses a solder termination type for easy PCB assembly.
The orientation of this PCB header is straight.
The housing is made of Liquid Crystal Polymer, which provides enhanced protection.
The DF40 supports both board-to-board and board-to-FPC connections.
The minimum operating temperature for this model is -35°C.
Yes, it features a locking mechanism with a tactile audible click for mating assurance.
The width of the DF40 Series PCB header is as small as 3.38 mm, allowing for high-density mounting.
