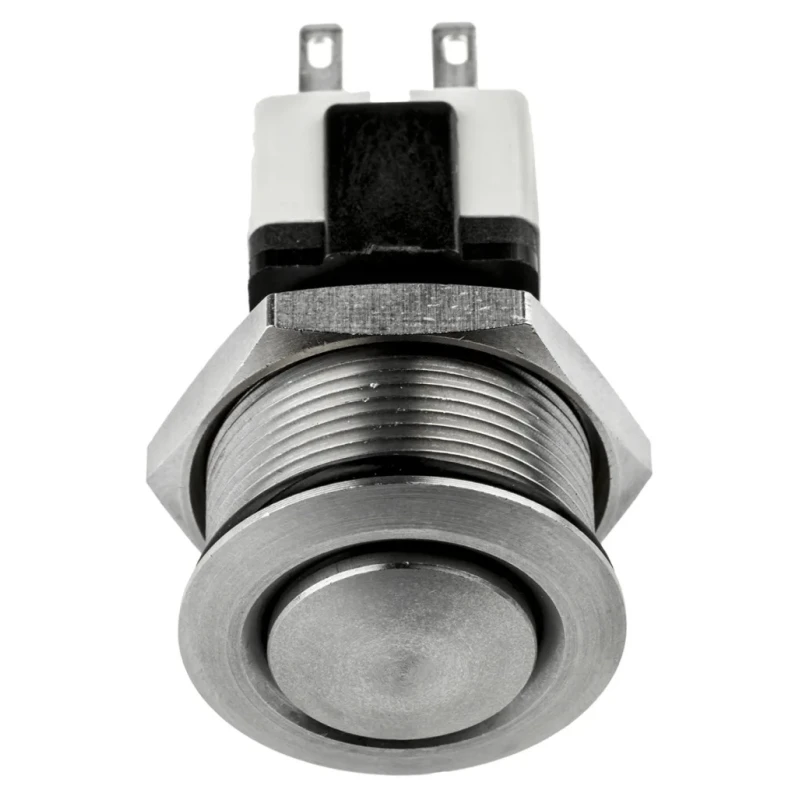

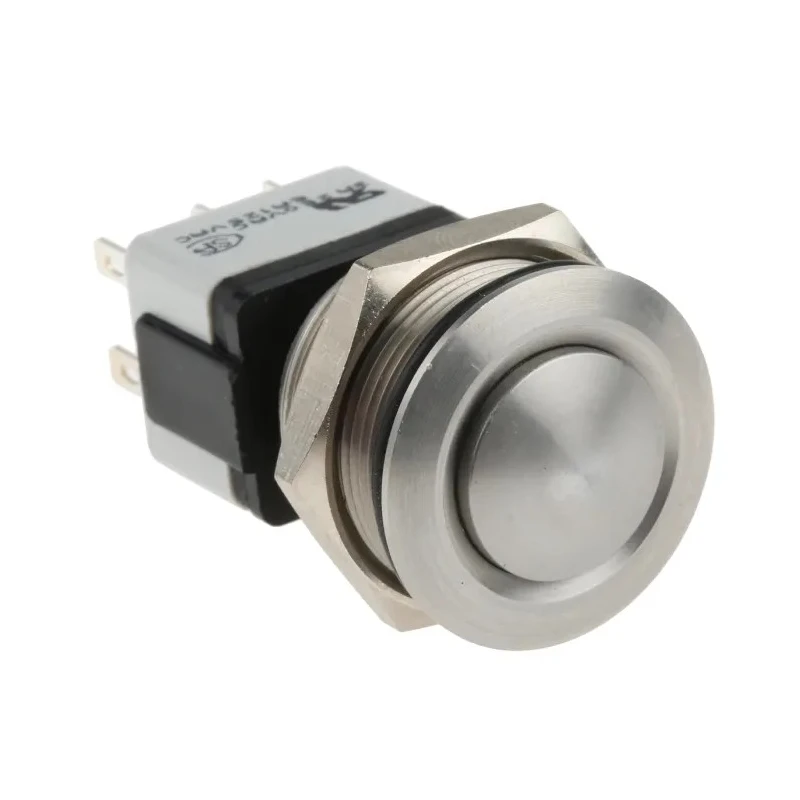

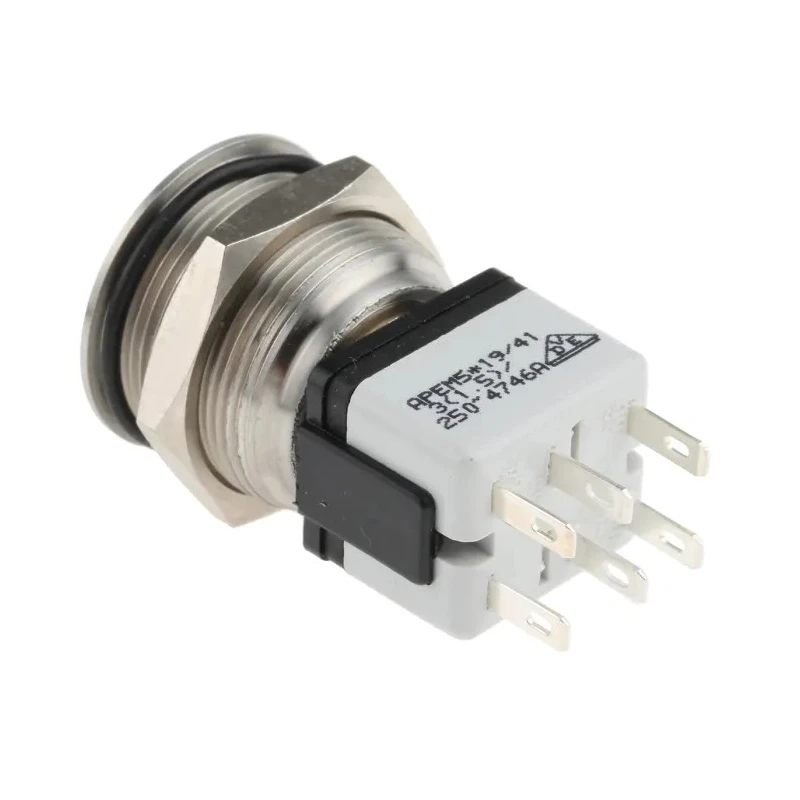

APEM AV Series Push Button Switch, Latching, Panel Mount, 22.2 mm Cutout, DPDT, IP65, 24 V dc 250 V ac AV044746A240K
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | AV044746A240K |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | AV |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Switch Configuration | DP (ON-ON) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder, Tab |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Actuator Colour | Black |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch has a black actuator color and a button style actuator.
- It provides a double pole double throw (DPDT) contact configuration with DP (ON-ON) switch configuration.
- The switch body is stainless steel and is panel sealed to meet IP65 standards for dust and water resistance.
- Terminal types support solder and tab connections with silver contacts rated for various voltages and currents.
- The switch operates reliably in temperatures ranging from -30°C to 70°C.
- Contact ratings include 3(1.5)A at 250Vac, 6A at 125Vac, and 3A at 24Vdc.
- The product is RoHS compliant and manufactured in France.
Product Description
APEM AV044746A240K is a high-quality push button switch from the AV Series designed for panel mounting with a 22.2 mm cutout size. Featuring a latching operation and double pole double throw (DPDT) contact configuration, this switch is suitable for industrial, electrical, automation, and control panel applications requiring robust and reliable switching functionality.
The switch actuator is black and shaped as a button, providing a tactile interface. The stainless steel body ensures durability and robust mechanical strength. It is sealed to an IP65 rating, making it resistant to dust and low-pressure water jets, which enhances its suitability for harsh environments.
Electrical contact ratings include a 3(1.5)A current capacity at 250V AC, 6A at 125V AC, and 3A at 24V DC with silver contacts that provide reliable conductivity and corrosion resistance. The switch can be connected using solder or tab terminals (0.110" quick-connect), allowing flexible installation options.
Designed to operate within a wide temperature range from -30°C to 70°C, it is suitable for a variety of industrial and manufacturing environments. This latching push button switch is RoHS compliant and proudly manufactured in France, ensuring regulatory adherence and high product quality.
The switch is ideal for electrical, automation, manufacturing, and control panel systems. It is suitable for industrial environments requiring sealed and reliable switching mechanisms. Panel mounting and screw-in installation processes allow for secure placement in system panels.
The latching mechanism provides stable on/off switching positions. Contact ratings and terminal types support versatile connectivity and load handling. The robust stainless steel body enables durability and extended service life.
The IP65 rating protects against environmental ingress, ensuring switch longevity. Explore other industrial Push Button Switches and electrical components in the Electronics & Electricals category at EnvMart for comprehensive control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a double pole double throw (DPDT) contact configuration with a DP (ON-ON) switch configuration.
It can operate reliably in temperatures up to 70°C.
This model has an IP65 rating, making it resistant to dust and low-pressure water jets.
The contact ratings include 3(1.5)A at 250Vac, 6A at 125Vac, and 3A at 24Vdc.
It supports solder and tab terminal types, specifically 0.110" quick-connect terminals.
The required panel cutout size for this switch is 22.2 mm.
The actuator style is a button, and its color is black.
The minimum operating temperature is -30°C.
Yes, the switch is RoHS compliant, ensuring it meets environmental standards.
This model is manufactured in France.
It is suitable for industrial, electrical, automation, and control panel applications.
This switch features a latching operation, providing stable on/off positions.
