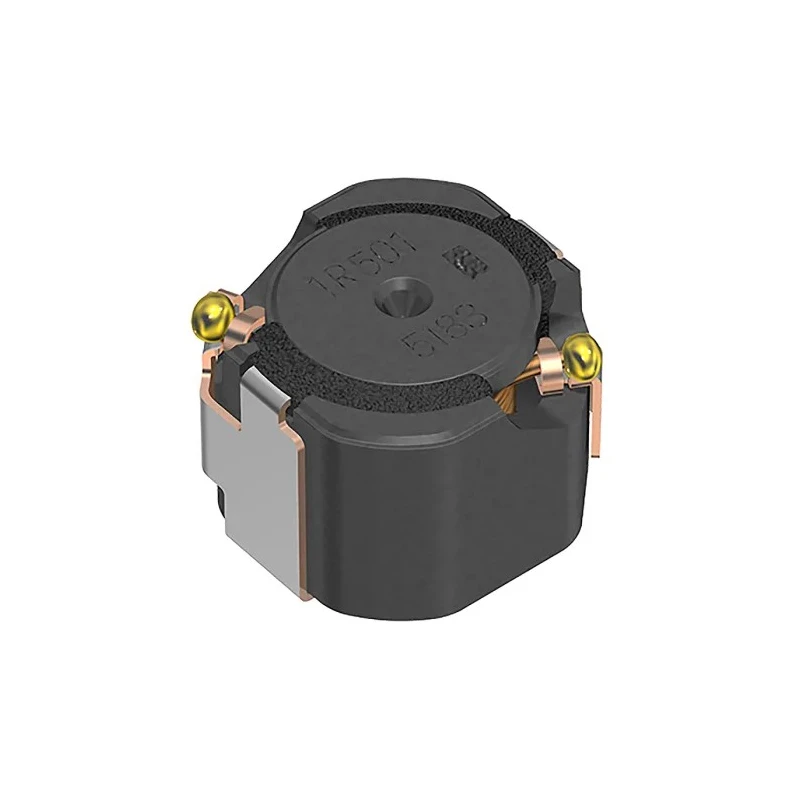

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 470 μH ±20 % 410 mA Idc CLF6045NI-D
Specifications
| Country of Origin | Hungary |
|---|---|
| Diameter | 6mm |
| Brand | TDK |
| Height | 4.5mm |
| Length | 6.3mm |
| Model | CLF6045NI-D |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | CLF6045NI-D |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 470μH |
| Standards/Approvals | RoHS |
| Package/Case | 6045 |
| Maximum DC Current | 410mA |
| Maximum DC Resistance | 1.3Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 6045 package case suitable for surface mounting.
- Shielded construction with high mechanical robustness.
- Operating temperature range from -55°C to +150°C.
- Low maximum DC resistance of 1.3 Ω for efficient current flow.
- Compliance with automotive standard AEC-Q200.
- Ferrite core material for stable inductance performance.
- Suitable for DC/DC converters and filtering supply voltages.
- Designed for lead-free reflow soldering process compatibility.
Product Description
TDK CLF6045NI-D is a shielded wirewound Surface Mount Inductor equipped with a ferrite core. It provides an inductance of 470 μH with a tolerance of ±20%, supporting a maximum DC current of 410 mA. Housed in a compact 6045 package, it features dimensions of 6.3 mm length, 6 mm diameter, and 4.5 mm height, making it suitable for tight PCB layouts.
Designed for high mechanical robustness and low DC resistance of 1.3 Ω, this inductor ensures efficient performance in various electronic circuits. The component complies with the automotive-grade AEC-Q200 standard and operates reliably between -55°C and 150°C, addressing needs in automotive and industrial electronics.
This shielded inductor is optimal for DC/DC converters, automotive electronics, filtering supply voltages, as well as coupling and decoupling applications. Its ferrite core construction offers excellent magnetic properties and noise suppression, while the entire assembly is suitable for lead-free reflow soldering processes.
The CLF6045NI-D series is designed for frequency performance up to a maximum self-resonant frequency of 100 kHz. Packaging in tape & reel format facilitates automated component placement in manufacturing environments.
Compact 6045 package and surface mount termination style enable easy PCB assembly. High rated current and low DC resistance enhance circuit efficiency. Wide temperature operating range supports diverse industrial applications.
Automotive-standard compliant (AEC-Q200) for reliable automotive use. Shielded construction reduces electromagnetic interference. Ferrite core ensures stable inductance and magnetic performance. Lead-free solder compatible, enhancing environmental safety.
Ideal for DC/DC converters, voltage filtering, coupling, and decoupling stages.
This component is part of the TDK series of inductors, widely used in industrial, automotive, and electronic manufacturing sectors. Browse related inductors and electronic components at EnvMart for compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of the TDK CLF6045NI-D is 470 μH with a tolerance of ±20%.
This inductor supports a maximum DC current of 410 mA.
The dimensions of this model are 6.3 mm in length, 6 mm in diameter, and 4.5 mm in height.
It operates reliably within a temperature range of -55°C to 150°C.
The core material of this inductor is ferrite, which provides stable inductance performance.
The maximum DC resistance is 1.3 Ω, which enhances efficient current flow.
Yes, it complies with the automotive standard AEC-Q200 and is also RoHS compliant.
This inductor is packaged in a tape & reel format, facilitating automated component placement.
It is suitable for DC/DC converters, filtering supply voltages, and coupling and decoupling applications.
The maximum self-resonant frequency is 100 kHz.
The termination style for this model is surface mount, which allows for easy PCB assembly.
The country of origin for this inductor is Hungary.
