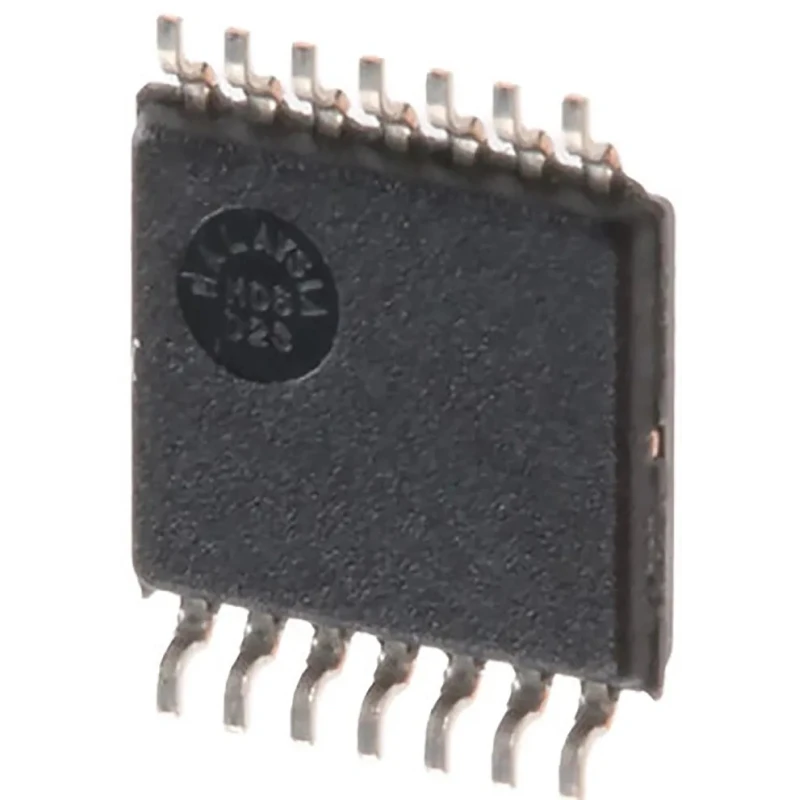

Texas Instruments Precision Operational Amplifier 10 MHz 18V, 14-Pin TSSOP, 4 Channels OPA4172IPW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | OPA4172IPW |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | OPA4172 |
| Output Current | 75mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2.25V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | ±14 nA |
| Vos - Input Offset Voltage | ±1.15 mV |
| Slew Rate | 10V/μs |
| Input Offset Current | 3 nA |
Key Features
- The device supports a wide supply voltage range from 2.25 V to 18 V.
- It offers a high slew rate of 10 V/μs for fast signal processing.
- The input offset voltage is low at ±1.15 mV ensuring accuracy in precision applications.
- Operating temperature ranges from -40°C to 125°C suitable for automotive and industrial use.
- Output current capacity is up to 75 mA per channel.
- The package dimensions are compact with 5.1 mm length, 4.5 mm width, and 1.05 mm height.
- Compliant with AEC-Q100 automotive standard and RoHS directive.
- Ideal for use in transducer amplifiers, precision integrators, active filters, and instrumentation.
Product Description
Texas Instruments OPA4172IPW is a high-precision operational amplifier designed for demanding industrial and automotive applications requiring low error, high speed, and stability.
This quad Operational Amplifier is housed in a 14-pin TSSOP package with compact dimensions, measuring 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height, allowing integration into space-constrained designs.
Operating over a wide supply voltage range from 2.25 V to 18 V and temperatures from -40°C to 125°C, it meets stringent automotive AEC-Q100 standards while offering reliable performance.
The device features a gain bandwidth product of 10 MHz with a high slew rate of 10 V/μs, delivering fast and accurate amplification suitable for transducer and strain gauge amplifiers, precision integrators, active filters, and other instrumentation circuits.
Input offset voltage is minimized to ±1.15 mV with an input bias current of ±14 nA and offset current of 3 nA, providing excellent accuracy over temperature and time. The output current capability of 75 mA per channel supports driving loads effectively. The OPA4172IPW series is RoHS compliant ensuring environmental safety.
This amplifier is ideal for industrial automation, automotive electronics, laboratory instrumentation, and precision measurement systems. The device supports a wide supply voltage range from 2.25 V to 18 V. It offers a high slew rate of 10 V/μs for fast signal processing.
The input offset voltage is low at ±1.15 mV ensuring accuracy in precision applications. Operating temperature ranges from -40°C to 125°C suitable for automotive and industrial use. Output current capacity is up to 75 mA per channel.
Compact 14-pin TSSOP surface mount package enhances PCB layout options. Compliant with AEC-Q100 automotive standard and RoHS directive. Applications include transducer amplifiers, precision integrators, active filters, and instrumentation.
Explore our catalog for a wide range of Texas Instruments amplifiers and components suited for advanced electronics development projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA4172IPW supports a wide supply voltage range from 2.25 V to 18 V.
This operational amplifier can operate at a maximum temperature of 125°C.
It features four channels, making it a quad operational amplifier.
The gain bandwidth product of the OPA4172IPW is 10 MHz.
This model has an output current capacity of up to 75 mA per channel.
The input offset voltage is low at ±1.15 mV, ensuring accuracy in precision applications.
The package dimensions are 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
It is housed in a 14-pin TSSOP package suitable for surface mounting.
It is compliant with the AEC-Q100 automotive standard, suitable for automotive applications.
The input bias current is specified at ±14 nA.
