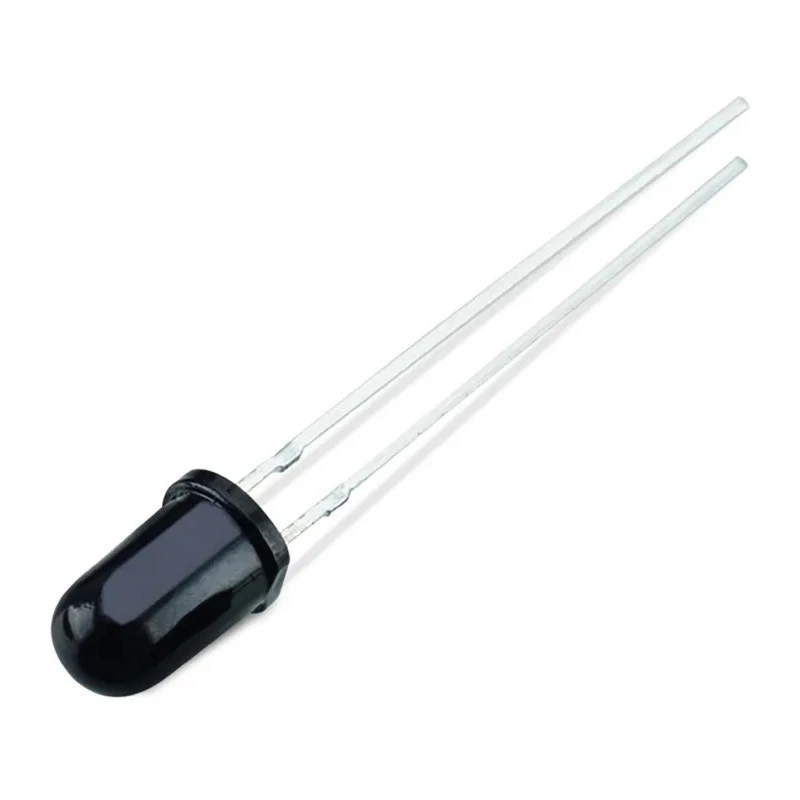

Wurth Elektronik Infrared Photodiode 35 ° Half Sensitivity Through Hole 5mm Package 1540051EC3590

Wurth Elektronik 1540051EC3590 Infrared Photodiode is a highly sensitive optical semiconductor device designed to detect infrared light in industrial and electronic applications. This model features a 35 ° angle of half sensitivity, providing excellent directional response within a compact 5mm through-hole package.

The photodiode is optimized for a peak sensitivity wavelength of 940nm spanning detection from 700nm to 1100nm, making it ideal for near-infrared detection tasks such as remote control systems, optoelectronic switches, and security systems. It includes a daylight filter which enhances the signal quality by suppressing unwanted ambient light interference.

It performs with fast response times, having a typical rise and fall time of 0.6 nanoseconds. Robust operational temperature range from -40°C up to 85°C ensures reliable performance in diverse industrial environments. The device operates at a forward polarity with two pins supporting through-hole mounting in electronic circuits.

Compact physical dimensions of 5mm length, 5mm width, and 8.7mm height make this photodiode suitable for space-constrained applications. It exhibits a low dark current of 30nA and a breakdown voltage of 30V, ensuring stability and longevity in operation. Packaged in tape & reel format, it supports automated manufacturing and assembly processes.

Typical applications include photointerrupters, touch screens, cleaning robots, industrial electronics, remote controllers, optoelectronic switches, and security monitoring systems. This photodiode complies with RoHS directives, affirming it meets environmental and safety standards.

Manufactured in China, the Wurth Elektronik 1540051EC3590 is a reliable choice for demanding electronic and industrial sensing applications. Browse the Photodiode category on EnvMart for more high-quality optoelectronic components.

The Photodiode detects infrared spectrum with peak sensitivity at 940nm. Fast rise and fall time of 0.6ns for quick response. Operating temperature range from -40°C to 85°C. Compact 5mm x 5mm x 8.7mm package size. Low dark current of 30nA and 30V breakdown voltage.

Forward polarity with through-hole mount type and two pins. Standard tape & reel packaging for automation. RoHS compliant and suitable for various industrial uses.
