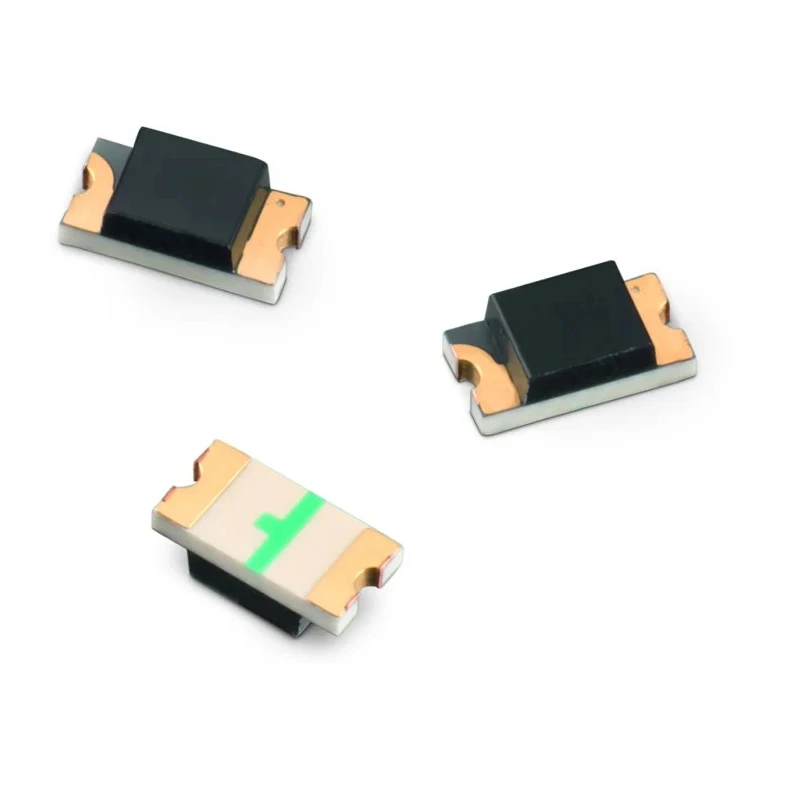

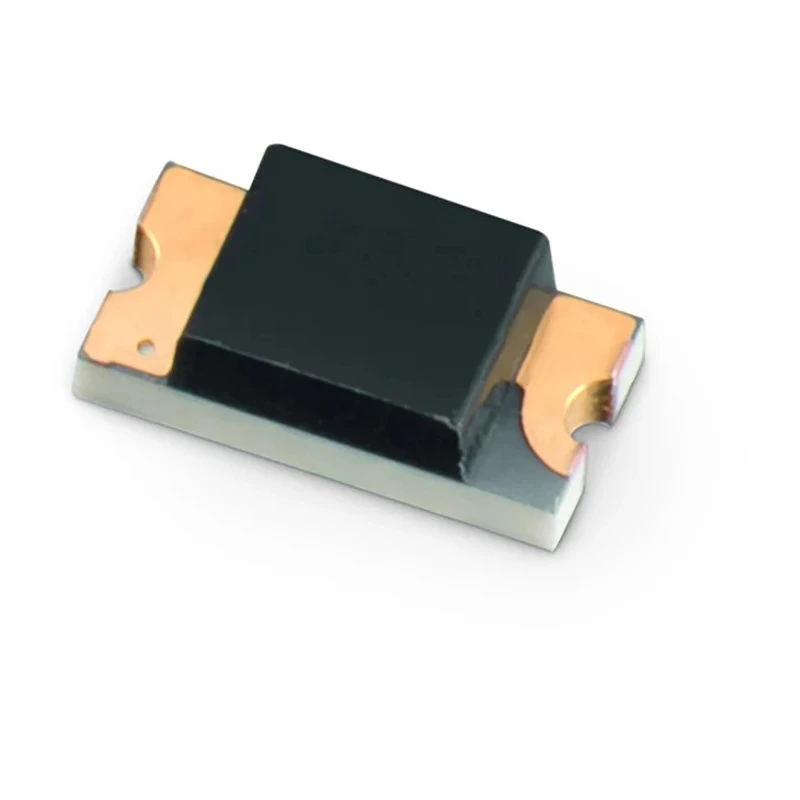

Wurth Elektronik Infrared Photodiode 140 ° Wide Viewing Angle Surface Mount 1206 Package 1541201EEA400

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Infrared Photodiode 140 ° Wide Viewing Angle Surface Mount 1206 Package 1541201EEA400

Name: Wurth Elektronik Infrared Photodiode 140 ° Wide Viewing Angle Surface Mount 1206 Package 1541201EEA400
Brand: Wurth Elektronik
SKU: 156699
Price: 0.61 USD
Availability: InStock



Category Photodiode Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
Height	1.1mm
Length	3.2mm
Model	1541201EEA400
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	WL-SDCB
Maximum Operating Temperature	85°C
Package Type	1206
Minimum Operating Temperature	-40°C
Polarity	Forward
Dark Current	10nA
Standards/Approvals	RoHS
Number of Pins	2
Typical Fall Time	0.6ns
Wavelength of Peak Sensitivity	940nm
Spectrums Detected	Infrared
Breakdown Voltage	30V
Minimum Wavelength Detected	700nm
Maximum Wavelength Detected	1100nm
Angle of Half Sensitivity	140 °

Key Features

This photodiode detects infrared spectrum efficiently with a peak sensitivity at 940 nm.
It operates within a temperature range from -40°C to 85°C ensuring stability in various conditions.
Features low dark current of 10 nA and fast response times with typical rise and fall times of 0.6 ns.
Compact dimensions of 3.2 mm length, 1.6 mm width, and 1.1 mm height in a surface mount package.
Packaged in tape and reel format suitable for automated assembly.
Designed for non-amplified forward polarity applications.
Breakdown voltage is rated at 30 V ensuring reliable operation.
Complies with RoHS standards and is made in Taiwan, Province Of China.

Product Description

Wurth Elektronik 1541201EEA400 is a high-performance Infrared Photodiode designed for surface mount applications in the 1206 package size. With a wide half sensitivity angle of 140 °, it enables efficient IR detection across broad viewing fields. This device detects infrared spectra with a wavelength peak sensitivity at 940 nm and operates reliably between -40°C and 85°C, making it suitable for various industrial and consumer electronic environments.

Crafted with a fast response capability as indicated by its 0.6 ns typical rise and fall times, this photodiode is ideal for IR data transmission and sensing applications. The low dark current of 10 nA enhances signal accuracy by minimizing noise. The robust breakdown voltage of 30 V ensures safety and durability under voltage stress.

The device features a compact form factor with dimensions of 3.2 mm length, 1.6 mm width, and 1.1 mm height, perfectly fitting automated PCB assembly lines via tape and reel packaging. Its forward polarity and non-amplified configuration provide simplicity and reliable operation.

Common applications include IR data transmission, touch screen sensing, copier machines, game machines, and security systems, demonstrating versatile usage across multiple industrial sectors such as electronics manufacturing, automation, and security industries.

Detects infrared spectrum from 700 nm to 1100 nm with peak sensitivity at 940 nm. Compact 1206 surface mount package for high-density integration. Fast response time ensures accurate and timely IR signal detection. Wide operating temperature range for diverse environmental conditions.

Low dark current minimizes measurement errors in sensing applications. Complies with RoHS for environmental safety standards. Manufactured in Taiwan, Province Of China ensuring quality assurance. Explore more advanced Photodiode technology from Wurth Elektronik on EnvMart, the trusted platform for industrial and electronic components.
