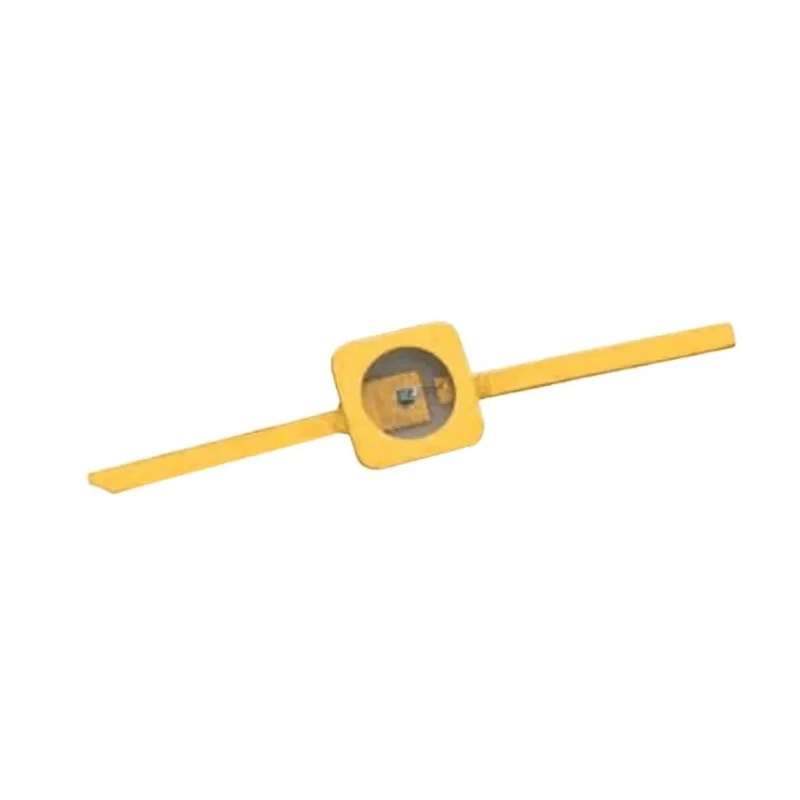

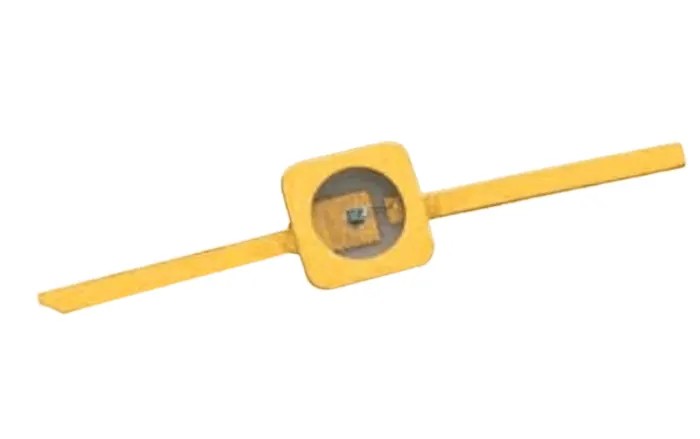

OSI Optoelectronics Infrared Photodiode, Through Hole TO-46 Package, 65 ° Half Sensitivity Angle, Reverse FCI-InGaAs-300
Specifications
| Country of Origin | Philippines |
|---|---|
| Diameter | 5.4mm |
| Brand | OSI Optoelectronics |
| Height | 2.68mm |
| Length | 8mm |
| Model | FCI-InGaAs-300 |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | FCI-InGaAS |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-46 |
| Minimum Operating Temperature | -25°C |
| Polarity | Reverse |
| Interfaces | Ethernet/Fibre Channel |
| Dark Current | 0.2nA |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Typical Fall Time | 1.5ns |
| Wavelength of Peak Sensitivity | 1700nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 900nm |
| Maximum Wavelength Detected | 1700nm |
| Angle of Half Sensitivity | 65 ° |
Key Features
- Detects infrared spectrum with peak sensitivity at 1700 nm.
- Operates from a wavelength range of 900 nm to 1700 nm.
- Typical rise and fall time of 1.5 ns enabling high-speed detection.
- Low dark current of 0.2 nA ensures minimal noise during operation.
- Designed for high bit rate receivers in LAN, MAN, and WAN telecom applications.
- Operates within temperature range of -25°C to +85°C for reliability in diverse environments.
- Compliant with RoHS standards ensuring environmental safety.
- Supplied in Tape & Reel packaging with 3-pin configuration.
Product Description
OSI Optoelectronics FCI-InGaAs-300 is an infrared photodiode featuring a Through Hole TO-46 package with a 65 ° half sensitivity angle and reverse polarity configuration. This component detects infrared light within a spectral range of 900 nm to 1700 nm, peaking in sensitivity at 1700 nm. It is built specifically for applications requiring high speed and low noise such as optical communications in LAN, MAN, and WAN networks.
With a typical rise and fall time of 1.5 ns and a low dark current of 0.2 nA, the photodiode ensures rapid response and minimal signal distortion. It has a compact size with length 8 mm, width 5 mm, height 2.68 mm, and diameter of 5.4 mm, making it suitable for integration into varied designs.
The device is compliant with RoHS environmental standards and operates reliably in temperatures between -25°C and 85°C. Packaging in Tape & Reel format with a 3-pin mount type supports automated assembly and ease of use.
Key features include high responsivity from 1100 nm to 1620 nm, optimized for Datacom and Telecom sectors requiring high bit rate receivers, gigabit Ethernet, fibre channel, SONET/SDH, ATM, and optical tapping applications.
Detects infrared spectrum with peak sensitivity at 1700 nm. Operates effectively across wavelengths 900 nm to 1700 nm. Low capacitance and dark current provide excellent signal quality. 3-pin Through Hole TO-46 package facilitates integration and mechanical stability.
Suitable for high-speed optical communications and multi-mode fiber optic receivers. RoHS compliant for environmental safety. Temperature range from -25°C to 85°C supports diverse operating conditions. Compact dimensions suitable for embedded applications.
This photodiode is ideal for industrial, telecommunications, and electronic manufacturing applications requiring reliable, rapid infrared detection. Browse more Photodiodes and optoelectronics components on EnvMart for a comprehensive selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The photodiode has a peak sensitivity at 1700 nm.
It operates reliably within a temperature range of -25°C to 85°C.
The typical rise and fall time is 1.5 ns, enabling high-speed detection.
The dark current is specified at 0.2 nA, which helps minimize noise during operation.
The dimensions of the TO-46 package are 8 mm in length, 5 mm in width, and 2.68 mm in height, with a diameter of 5.4 mm.
It is supplied in Tape & Reel packaging, which supports automated assembly.
It is designed for applications in optical communications, particularly in LAN, MAN, and WAN networks, requiring high bit rate receivers.
The angle of half sensitivity is 65 °, allowing for effective detection of infrared light.
This model is compatible with Ethernet and Fibre Channel interfaces.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
The maximum breakdown voltage is 30V, which is important for its operational limits.
This photodiode belongs to the FCI-InGaAS series, designed for high responsivity applications.
