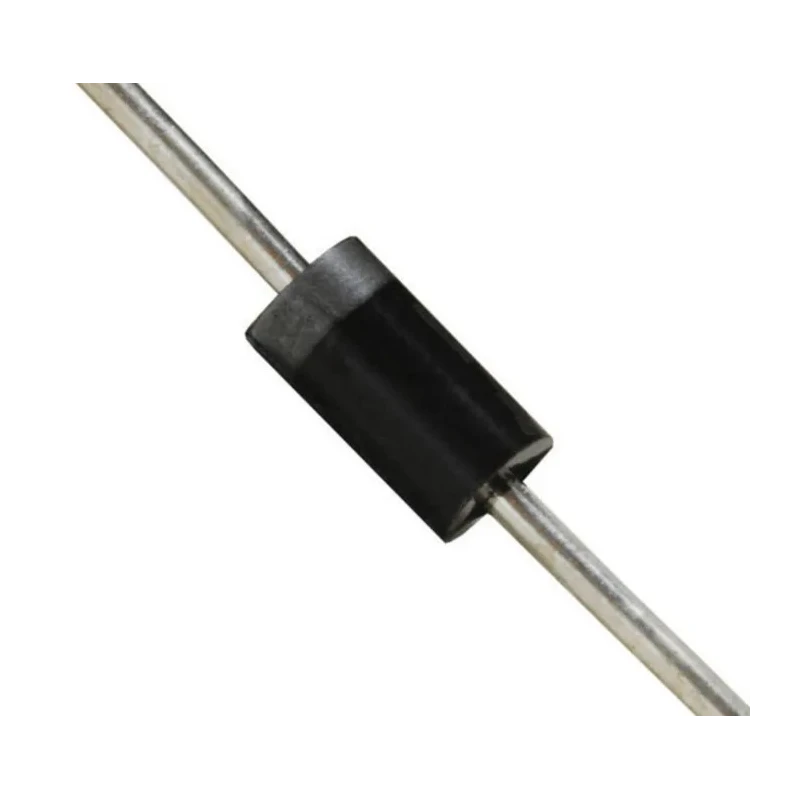

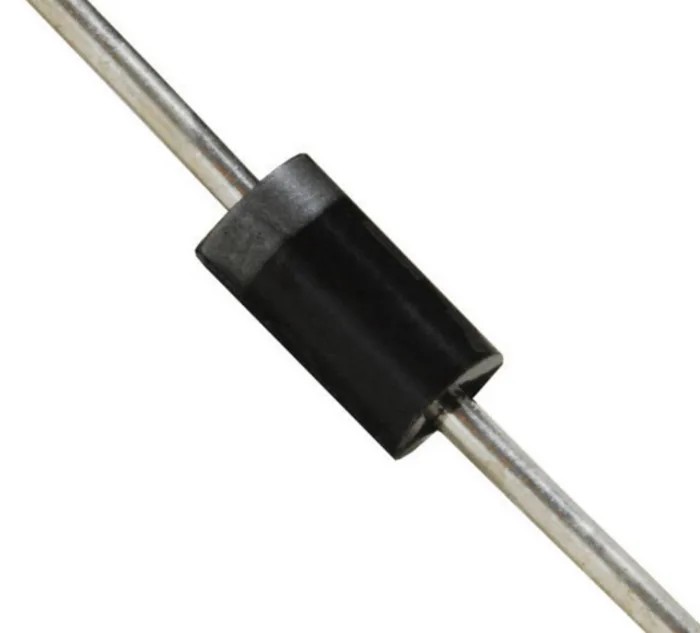

Vishay 75 V Silicon Planar Zener Diode Single 1.3 W Through Hole 2-Pin DO-41 BZX85C75-TAP

Vishay BZX85C75-TAP is a high-quality silicon planar Zener diode designed for electronic applications requiring stable voltage regulation and protection. This single diode configuration features a nominal Zener voltage of 75 V with a precise tolerance of ±2%, ideal for maintaining voltage consistency in various circuits.

The diode offers a maximum power dissipation of 1.3 W, ensuring robust performance under demanding conditions. Packaged in a 2-pin DO-41 through-hole form factor, it facilitates straightforward assembly on printed circuit boards, making it suitable for industrial and laboratory use.

It maintains a low maximum reverse leakage current of 500 nA at a 4 mA test current, which helps minimize power loss and improves overall efficiency. The operating temperature range of -55°C to 175°C allows deployment in harsh environments and automotive applications, supported by compliance with RoHS standards and AEC-Q101 automotive qualification.

The diode's compact physical dimensions of 4.1 mm length and 2.6 mm height enable space-constrained designs without sacrificing reliability. Leveraging silicon planar technology, it provides stable voltage regulation and low noise characteristics necessary for sensitive electronic circuits.

This Zener diode is suited for use in voltage stabilization, clipping, and protection circuits within electronic, semiconductor manufacturing, automotive, industrial control, and consumer electronics applications.

The diode has a nominal Zener voltage of 75 V with ±2% tolerance. Maximum power dissipation is rated at 1.3 W for reliable performance. Constructed in a 2-pin DO-41 through-hole package for easy PCB assembly. Maximum reverse leakage current is limited to 500 nA at the test current of 4 mA.

Operating temperature range spans from -55°C to 175°C accommodating industrial applications. Compliance to RoHS and AEC-Q101 automotive standards ensures quality and environmental safety. Compact size with a length of 4.1 mm and height of 2.6 mm for efficient PCB layout.
