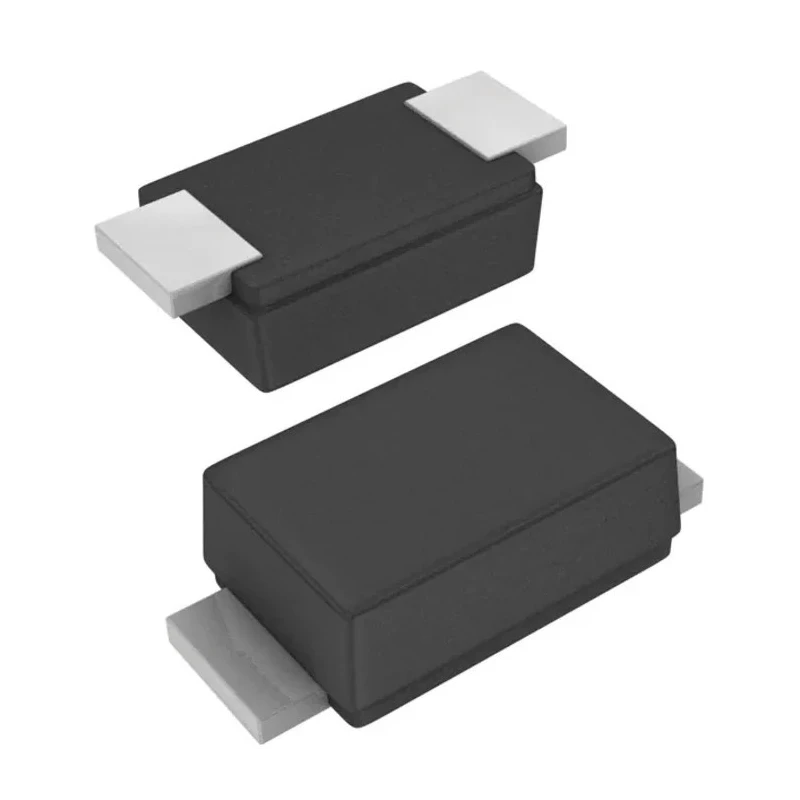

Vishay 1-Element Uni-Directional TVS Diode, 200W Peak Pulse Power, 2-Pin DO-219 SMF16A-E3-08
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.08mm |
| Length | 2.9mm |
| Model | SMF16A-E3-08 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-219 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 26V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 17.8V |
| Maximum Reverse Stand-off Voltage Vwm | 16V |
| Peak Pulse Power Dissipation Pppm | 200W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7.7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Uni-directional diode configuration designed for ESD protection.
- Minimum breakdown voltage of 17.8V ensuring reliable operation.
- Maximum peak pulse current of 7.7A for efficient surge handling.
- Compact dimensions of 2.9mm length, 1.9mm width, and 1.08mm height.
- Operating temperature range from -55°C to 150°C supports harsh environments.
- Compliant with automotive standard AEC-Q101 and halogen-free construction.
- Low incremental surge resistance for stable performance.
- Fast response time and excellent clamping capability reduce damage risk.
Product Description
Vishay SMF16A-E3-08 is a high-performance 1-element uni-directional transient voltage suppression (TVS) diode designed to protect electronic circuits from voltage spikes and electrostatic discharge. This surface mount diode in a compact DO-219 package provides a peak pulse power dissipation of 200W, making it ideal for safeguarding sensitive components in automotive, industrial, and communication applications.
The diode features a peak pulse current rating of 7.7A and a minimum breakdown voltage of 17.8V, ensuring robust operation under transient conditions. Its low clamping voltage of 26V coupled with fast response time offers excellent transient suppression for protecting MOSFETs, ICs, and signal lines.
Designed to withstand extreme temperature environments, it operates between -55°C and 150°C. The diode complies with the automotive standard AEC-Q101 and is halogen- and lead-free, supporting environmentally responsible electronics manufacturing. Low incremental surge resistance further enhances its durability in repetitive transient events.
This TVS diode is suitable for automotive load dump protection and is highly recommended for use in consumer electronics, industrial controls, telecommunications, and computer circuits requiring efficient ESD and surge protection.
Uni-directional diode configuration designed for ESD protection. Minimum breakdown voltage of 17.8V ensuring reliable operation. Maximum peak pulse current of 7.7A for efficient surge handling. Compact dimensions of 2.9mm length, 1.9mm width, and 1.08mm height.
Operating temperature range from -55°C to 150°C supports harsh environments. Compliant with automotive standard AEC-Q101 and halogen-free construction. Low incremental surge resistance for stable performance. Fast response time and excellent clamping capability reduce damage risk.
Suitable for automotive load dump and sensitive electronics protection. Manufactured in China with automotive grade reliability.
Explore the full range of Vishay semiconductor TVS Diodes at EnvMart for specialized transient voltage protection solutions tailored to your industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 200W, making it suitable for protecting sensitive components from voltage spikes.
The minimum breakdown voltage is 17.8V, ensuring reliable operation under transient conditions.
This diode has a maximum peak pulse current rating of 7.7A, which allows for efficient surge handling.
It operates within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
The dimensions of this unit are 2.9mm in length, 1.9mm in width, and 1.08mm in height.
The clamping voltage is 26V, which helps in providing excellent transient suppression.
This model uses surface mounting, making it suitable for various electronic applications.
Yes, it complies with the automotive standard AEC-Q101, ensuring reliability for automotive applications.
The maximum reverse stand-off voltage is 16V, which is critical for its operation in protective applications.
It features a uni-directional diode configuration, specifically designed for ESD protection.
The maximum reverse leakage current is 100nA, which contributes to its stable performance during operation.
This TVS diode is suitable for automotive load dump protection and is recommended for use in consumer electronics, industrial controls, and telecommunications.
