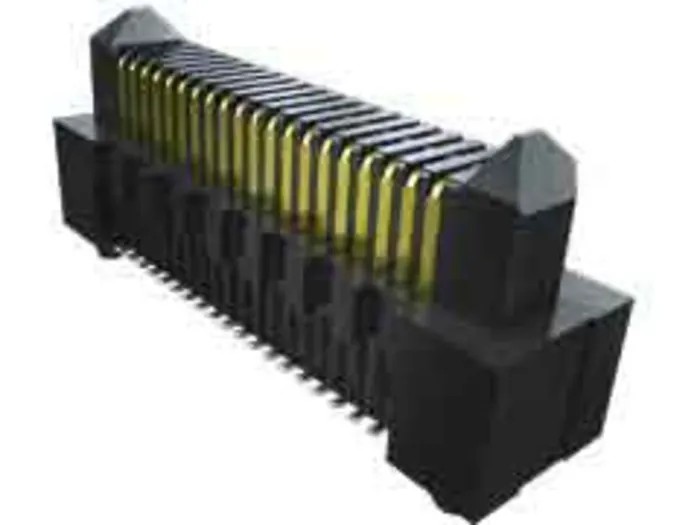

Samtec ERM8 Series Straight Surface PCB Header, 40 Contacts, 0.8 mm Pitch, 2 Row, Shrouded ERM8

Samtec ERM8 Series Straight Surface PCB Header ERM8 is designed with precision for high-performance electronic applications. This connector features 40 gold-plated phosphor bronze contacts arranged in a 2-row configuration with a pitch of 0.8 mm. The housing is crafted from liquid crystal polymer, offering excellent mechanical strength and thermal stability.

The product supports a current rating of 2.2 A and voltage up to 318 V, making it suitable for various electronic circuit requirements. Operating temperature ranges from -55°C to 125°C ensure functionality under diverse environmental conditions. The termination type is solder, compatible with surface mount PCB assembly.

Its shrouded design enhances contact protection, while the rugged Edge Rate® contact provides a smooth, broad milled surface for increased wear life and reliable mechanical engagement. With a stack height range of 7.00 mm to 16.00 mm, it accommodates various PCB assembly layouts. This product is dual sourced by Hirose® and supports high-speed data transfer up to 28+ Gbps, useful in demanding industrial and commercial electronics manufacturing.

Applications include industrial equipment electronics, communication devices, control systems, and other precision electronic assemblies requiring robust, durable connectors. Utilizes high-quality liquid crystal polymer housing for enhanced durability.

Gold-plated phosphor bronze contacts ensure reliable conductivity. Supports current rating of 2.2 A suitable for demanding electronic applications. Designed for surface mount technology with solder termination type. Operates reliably between -55°C and 125°C temperature range.

Achieves voltage rating of 318 V for versatile circuit integration. Features a rugged Edge Rate® contact for smooth, broad milled contact surface and increased wear life. Compact stack height range between 7.00 mm and 16.00 mm facilitates flexible PCB designs.

Connector orientation is straight with a shrouded design to protect contacts. Dual sourced by Hirose® ensuring quality and availability. Compatible with high-speed 28+ Gbps applications. Ideal for industrial, commercial, and electronic manufacturing uses.
