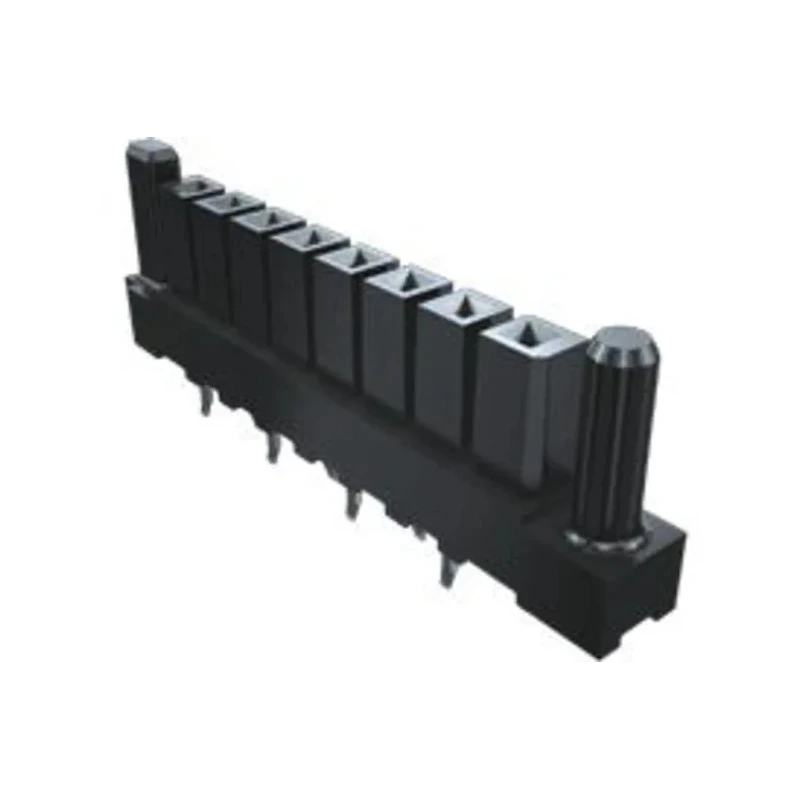

Samtec IPBS Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 4.19 mm Pitch Solder IPBS-105-01-T-D-GP

Samtec IPBS Series Straight Through Hole PCB Socket model IPBS-105-01-T-D-GP is a high-quality connector designed for electronic applications requiring secure board-to-board connections. This socket features 10 female contacts arranged in 2 rows with a 4.19 mm pitch, terminated by soldering, making it suitable for through-hole mounting.

The housing is made from liquid crystal polymer, providing excellent mechanical strength and high-temperature resistance, supporting operating conditions from -55°C to 105°C. It supports currents ranging broadly between 6 A and 10.3 A, accommodating demanding power requirements with a maximum voltage rating of 565 V.

Bronze contact material with tin plating ensures low resistance and long-lasting reliable electrical connections. The contacts are individually shrouded and the design optionally supports polarized guide posts to prevent incorrect mating. This socket is ideal for use in industrial electronics, power distribution boards, and other electronics requiring a compact, reliable PCB socket solution.

Its straight orientation and through-hole mount facilitate easy integration into PCB layouts where robust connections are needed. Samtec’s IPBS series complies with RoHS standards, ensuring compliance with environmental directives.

Features a liquid crystal polymer housing for durability and high performance. Supports current ratings of 10.3, 6, 7.1, 7.6, and 8.4 amperes. Designed with a straight orientation and through-hole mount for board-to-board connection.

Allows operation at voltages up to 565 V with excellent insulation. Equipped with bronze contacts plated with tin for reliable connectivity. Operates reliably from -55°C minimum to 105°C maximum temperature range. Complies with RoHS standards ensuring environmental safety.

Includes individually shrouded contacts and optional polarized guide posts. Applicable for industrial electronics requiring secure and stable PCB connections. Explore similar high-quality PCB Sockets and connectors in the Electronics & Electricals category at EnvMart for your industrial, manufacturing, or laboratory assembly needs.
