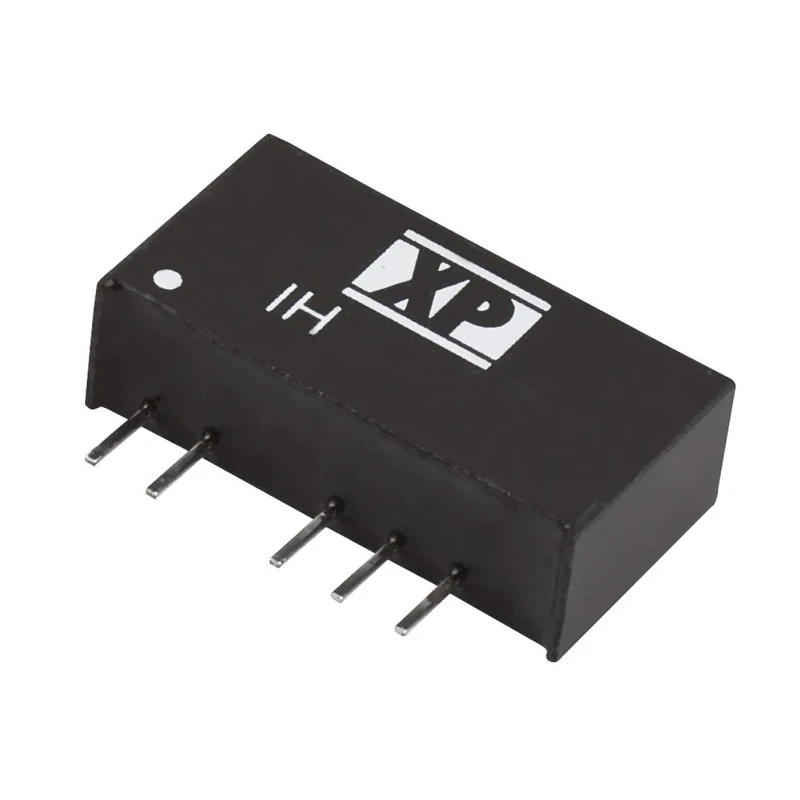

XP Power IH Series Isolated Dual Output DC/DC Converter 9V -9V 111mA 32.2V Input 10.8V Input 2W SIP Through Hole IH1209S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IH DC/DC Converter, 9V, -9 V/ 111 mA, 32 |
| Brand | XP Power |
| Efficiency | 77% |
| Length | 19.5mm |
| Model | IH1209S |
| Depth | 10.16mm |
| Width | 7.2mm |
| Mount Type | Through Hole |
| Series | IH |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 32.2V |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 9, -9V |
| Output Current 1 | 111mA |
| Isolation Voltage | 1kV dc |
Key Features
- This model operates with an input voltage range of 10.8V to 32.2V.
- It features ultra-high isolation voltage of 1000 VDC for safety and signal integrity.
- The converter has a compact form factor with dimensions 19.5mm (L) x 7.2mm (W) x 10.16mm (D).
- It supports a wide operating temperature range from -40°C to 85°C suitable for harsh industrial environments.
- Efficiency is rated at 77%, ensuring reliable power conversion and minimal energy loss.
- The package has 7 pins and is a standard SIP type for easy PCB mounting.
- Mean time between failures (MTBF) is rated at 1,100,000 hours, indicating high reliability.
- This converter is ideal for industrial automation, instrumentation, communication equipment and power management applications.
Product Description
XP Power IH1209S is a dual output isolated DC/DC converter designed for industrial and electronics applications requiring reliable isolated power supplies. It provides dual outputs of +9V and -9V at a maximum output current of 111mA with a power rating of 2 Watts.
This compact SIP package module features a through-hole mount type with only 7 pins, making it suitable for easy circuit board integration. Its small dimensions of 19.5mm length, 7.2mm width, and 10.16mm depth allow it to fit into space-constrained designs while delivering stable performance.
The IH1209S series operates from an input voltage range of 10.8 to 32.2 Volts DC and offers an isolation voltage of 1000 VDC, ensuring electrical isolation between input and output circuits which protects sensitive electronics from electrical noise and interference.
Designed to perform efficiently, this model achieves 77% efficiency, which helps in reducing heat dissipation and improving energy savings. The module is rated to operate reliably in demanding environments with an operating temperature range from -40 degrees Celsius to 85 degrees Celsius.
With an MTBF of 1,100,000 hours, the converter provides long-term reliability for critical applications such as industrial automation control, communications infrastructure, test and measurement instruments, and power supply circuits.
This DC/DC converter supports dual output voltages of +9 V and -9 V. Input voltage capability extends from 10.8 V minimum to 32.2 V maximum. Mount type is through-hole for durable PCB assembly. Isolation voltage rated at 1000 VDC for secure electrical isolation.
Small SIP package with 7 pins and dimensions 19.5 mm x 7.2 mm x 10.16 mm. Operational temperature span from -40 °C to +85 °C for harsh environment tolerance. Efficiency of 77% for energy efficient operation. Ideal for applications in industrial controls, communications systems, and electronic instrument power supply conversions.
Explore more XP Power DC/DC Converters and related products within the Electronics & Electricals category at EnvMart for your precise power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 10.8V to 32.2V DC.
It provides dual outputs of +9V and -9V at a maximum output current of 111mA, with a total power rating of 2 Watts.
The efficiency of this converter is rated at 77%.
This model has dimensions of 19.5mm in length, 7.2mm in width, and 10.16mm in depth.
The isolation voltage is rated at 1000 VDC, ensuring electrical isolation between input and output circuits.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This model features 7 pins and is designed for through-hole mounting.
The MTBF is rated at 1,100,000 hours, indicating high reliability for critical applications.
It is ideal for industrial automation, instrumentation, communication equipment, and power management applications.
This model comes in a compact SIP package type, suitable for easy PCB integration.
The maximum output power of this converter is 2 Watts.
The minimum input voltage for this model is 10.8V.
