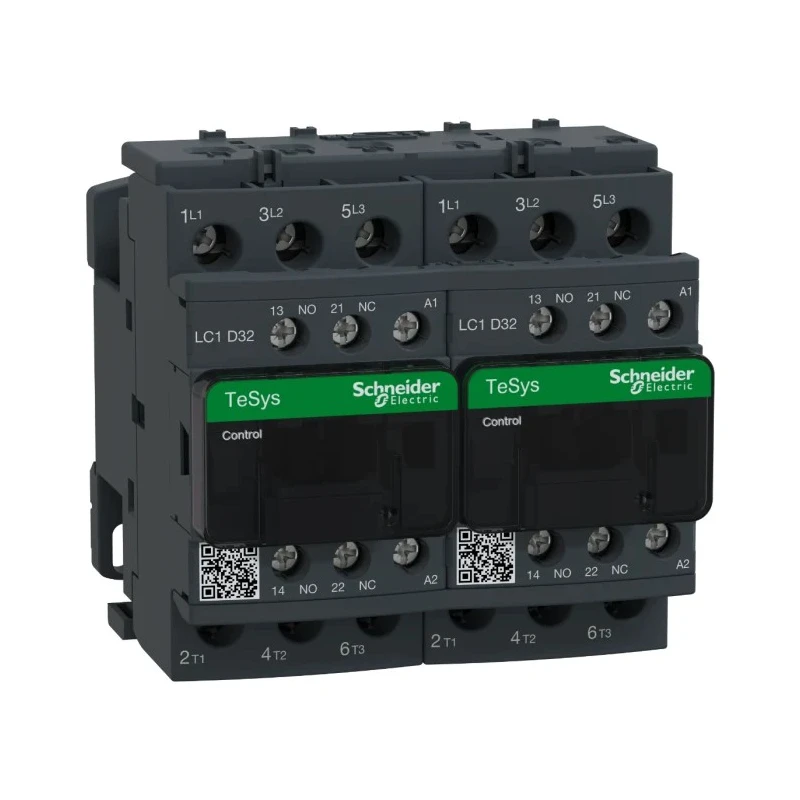

Schneider Electric LC2D Contactor 230V ac Coil 3-Pole 32A 15kW 3 NO 690V ac LC2D32P7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 85mm |
| Model | LC2D32P7 |
| Depth | 92mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 230V AC coil suitable for control circuits.
- Designed for motor control, resistive load, and reversing applications.
- Features 3 poles with 3 normally open contacts for reliable switching.
- Mounts easily on DIN rail with IP20 finger-safe screw terminals.
- Includes two auxiliary contacts with 2 NO and 2 NC configuration for added switching.
- Operates reliably within temperature range −25°C to 50°C.
- Compact dimensions (85mm length, 90mm width, 92mm depth) for panel installation.
- Complies with international standards CCC, CSA, EAC, IEC, RoHS, and UL.
Product Description
Schneider Electric LC2D32P7 Contactor with a 230V ac coil is a high-performance, 3-pole unit rated for 32 amps and 15 kilowatts at 690V ac. This contactor from the TeSys D series is engineered for motor control, resistive loads, and reversing operations, making it suitable for a broad range of industrial and commercial electrical automation applications.
The LC2D32P7 contactor features 3 normally open (NO) contacts plus two auxiliary contacts configured as 2 NO and 2 NC, providing enhanced switching capabilities for complex control circuits. It is mounted on DIN rails and equipped with screw connections rated IP20 finger-safe terminals with markings compliant for both North American and international standards.
Its robust design supports operation in harsh environments with temperatures ranging from -25°C to +50°C. The contactor's compact dimensions (85 x 90 x 92 mm) allow streamlined integration into control panels while maintaining ease of installation and maintenance.
This product is certified to multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL, confirming its reliability and safety in electrical distribution systems and industrial automation.
The LC2D series utilizes linear translation movement for double break pole action, ensuring efficient and durable switching. Built-in auxiliary contacts and pre-installed interlock add convenience and safety. This contactor is a Better World product emphasizing sustainable design through ease of disassembly.
Ideal for applications such as conveyor systems, pumps, compressors, air conditioning units, lifts, escalators, and general motor control in manufacturing, HVAC, and industrial automation sectors.
Package details: contains the Schneider Electric LC2D32P7 contactor with 230V coil and accessories for straightforward installation. Explore our extensive catalog in Contactors and Automation & Control Gear to find compatible accessories and related control products for your industrial automation needs.
Equipped with a 230V AC coil for reliable control operation. Supports motor control, resistive load, and reversing functions. Compact 3-pole construction with 32A contact current rating. Auxiliary contacts configured as 2 NO and 2 NC for additional switching options.
Durable screw terminal connections with IP20 safety rating. Wide operational temperature range from -25°C to 50°C. Compact dimensions suitable for DIN rail mounting. Internationally certified for safety and performance. Sustainable design focused on disassembly and recycling.
Manufactured in France ensuring quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D32P7 contactor has a power rating of 15 kW at a maximum operating voltage of 690V AC.
This model operates with a coil voltage of 230V AC, suitable for control circuits.
The contactor features a 3-pole configuration with 3 normally open contacts.
The contactor has compact dimensions of 85 mm in length, 90 mm in width, and 92 mm in depth.
It operates reliably within a temperature range of -25°C to 50°C.
This contactor is designed for DIN rail mounting, facilitating easy installation.
The LC2D32P7 includes two auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC).
It is suitable for motor control, resistive loads, and reversing applications, commonly used in systems like conveyors, pumps, and compressors.
This contactor complies with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
It features screw connections rated as IP20 finger-safe terminals with markings compliant for both North American and international standards.
The contactor has a contact current rating of 32A, suitable for various applications.
This contactor is manufactured in France, ensuring quality and reliability.
