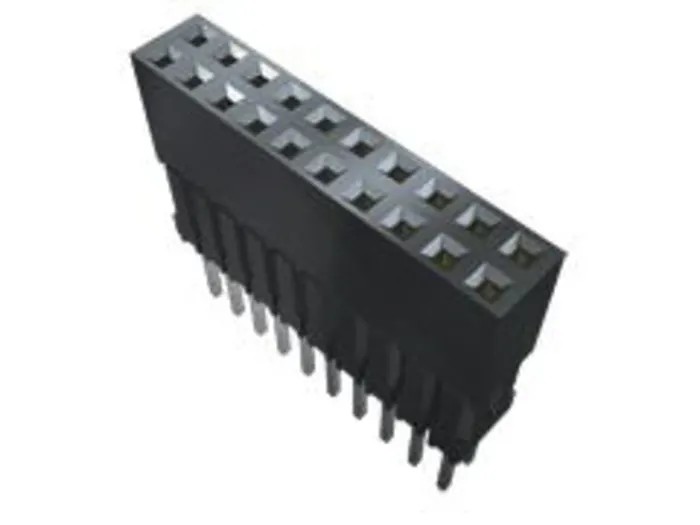

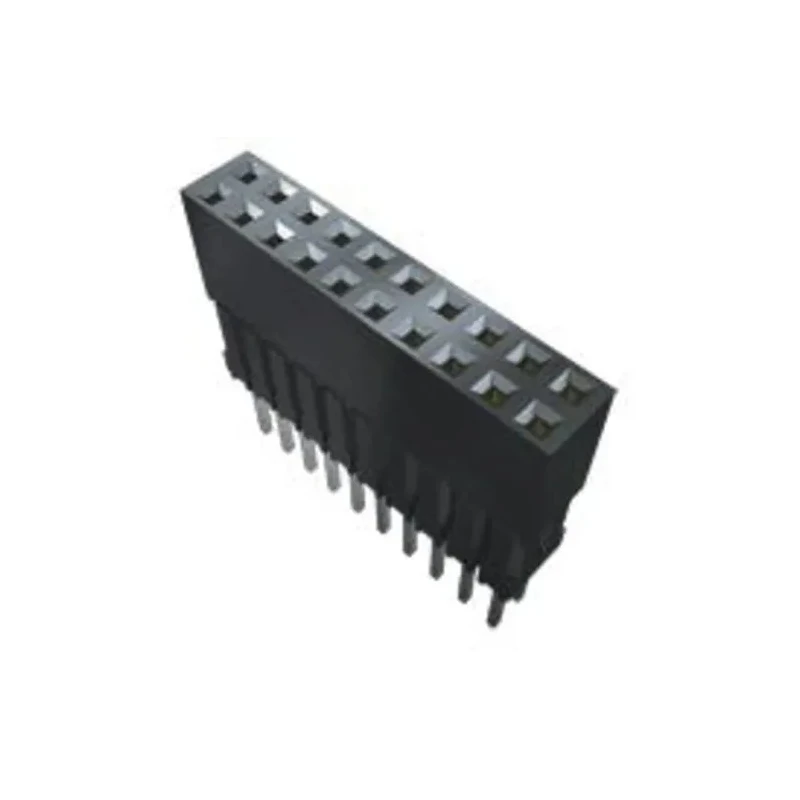

Samtec ESQ Series Elevated PCB Socket 52-Contact 2 Row 2.54 mm Pitch Through Hole Solder Termination ESQ-126-14-G-D

Samtec ESQ-126-14-G-D is an elevated socket strip PCB socket designed for reliable and efficient board-to-board connectivity in electronics applications. This elevated socket features a 52-contact configuration arranged in 2 rows with a pitch of 2.54 mm (0.100 inch), suitable for high-density PCB layouts.

The socket employs through-hole solder termination, providing a secure mechanical and electrical connection to printed circuit boards. The black glass filled polyester housing offers excellent mechanical stability and resistance to environmental stresses.

Contacts made of bronze with gold plating ensure high conductivity and corrosion resistance to maintain signal integrity. The contact system uses Tiger Buy™ technology and accommodates both standard and low insertion force contacts, facilitating easier assembly and maintenance.

Rated for a current of 23 amperes and operating voltage up to 225 volts, this socket supports demanding electrical loads. It is designed to operate in temperatures ranging from -55°C to 125°C, making it suitable for a wide range of industrial, commercial, and laboratory electronics environments.

The straight vertical orientation fits board-to-board connector systems, including PC/104™ applications with square tails of 0.025 inch (0.635 mm). The socket is adaptable for single, double, and triple row usage with up to 108 pins, enhancing flexibility in PCB design.

The socket is crafted from durable black glass filled polyester housing material. Contacts are bronze with gold plating to ensure long-lasting performance. Designed for through-hole solder mount types with vertical straight orientation.

Supports 23A current with voltage rating of 225V for robust electrical applications. Operates reliably across a wide temperature range from -55°C to 125°C. Includes standard and low insertion force contact options with square tails for PC/104™ compatibility.

Ideal for industrial electronics, manufacturing, laboratory equipment, and power connector applications.

Select the Samtec ESQ-126-14-G-D PCB socket for dependable elevated socket strip solutions in your electronic designs. Explore related high-quality PCB Sockets and connectors at EnvMart.
