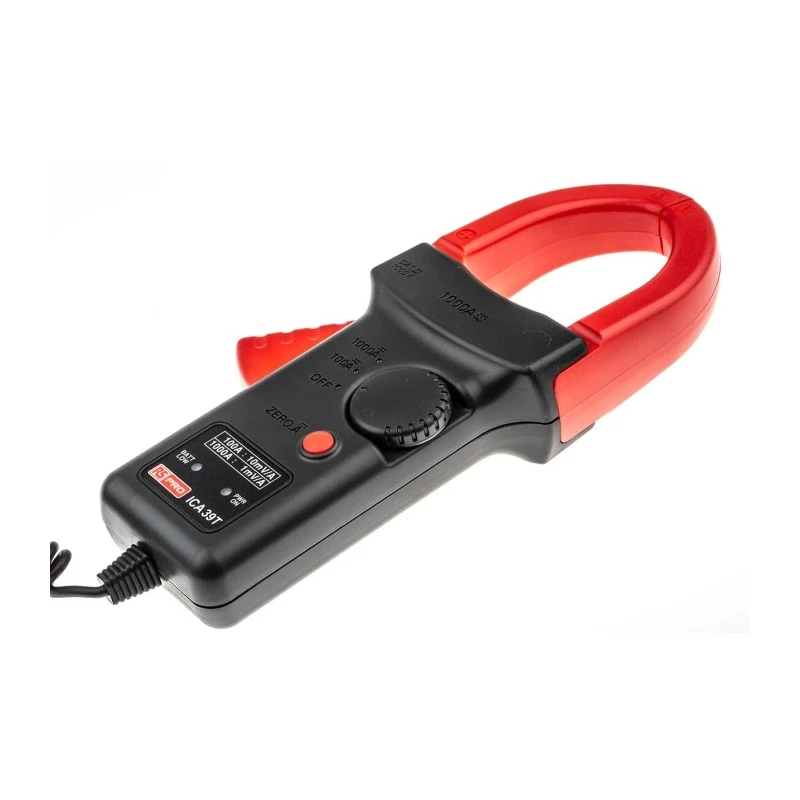

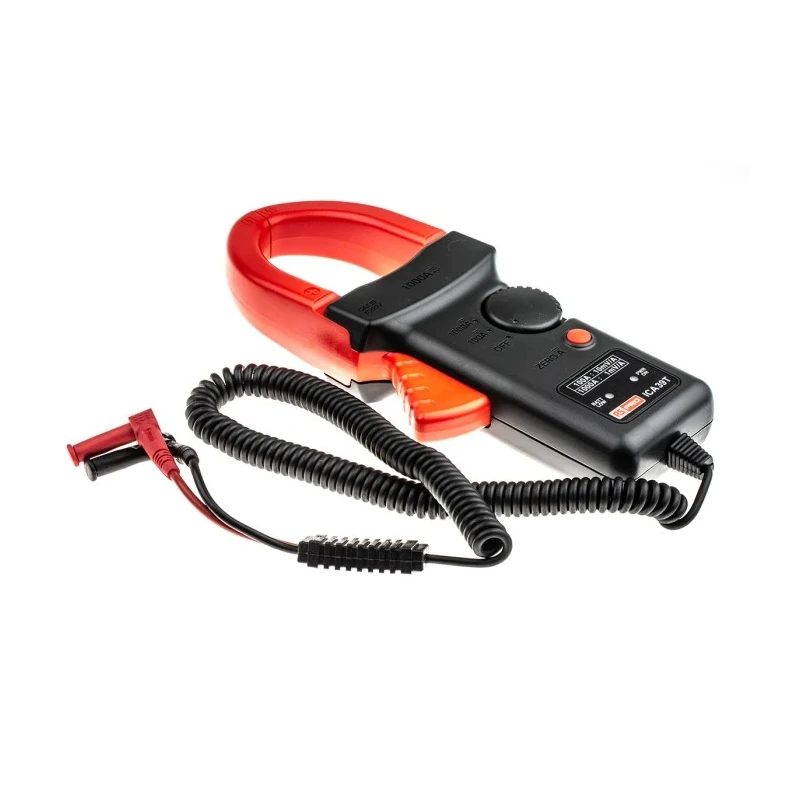

RS PRO Clamp Meter AC/DC 1 kA Max Current 1000 V AC/DC Voltage CAT III Safety Level 123-3224
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Battery Life | 66h |
| Battery type | 9V Alkaline |
| Height | 32mm |
| Length | 232mm |
| Model | 123-3224 |
| Gross Weight | 420g |
| Width | 9mm |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| AC Current Accuracy | ±1.9 % rdg + 7 A |
| Maximum Jaw Opening | 51mm |
| Standards/Approvals | standard, IEC 1010 |
| Functions Measured | AC Current, DC Current |
| Maximum DC Voltage Measurement | 1000V dc |
| Maximum DC Current Measurement | 1kA |
| Maximum AC Voltage Measurement | 1000V ac |
| Safety Category Level | CAT III |
| Safety Category Voltage | 1kV |
| Maximum Conductor Size | 51mm |
| Clamp Meter Type | AC/DC Clamp Meter |
Key Features
- Measures AC and DC currents up to 1000 A safely and accurately.
- Supports measurement of AC and DC voltages up to 1000 V.
- Equipped with a 51 mm jaw opening to accommodate large conductors.
- Features non-contact voltage detection for enhanced electrical safety.
- Offers AC current accuracy of ±1.9% reading plus 7 A for precision diagnostics.
- Operates reliably between 0°C and 50°C operating temperature range.
- Powered by a 9V alkaline battery with up to 66 hours of battery life.
- Ergonomically designed housing provides robust resistance to physical impact.
Product Description
RS PRO 123-3224 Clamp Meter AC/DC is a precision current clamp device designed to measure both AC and DC currents safely and accurately up to 1000 A. It supports voltage measurements up to 1000 V AC and DC with a CAT III safety rating, making it suitable for demanding industrial, electrical, HVAC, manufacturing, and laboratory applications where reliable current monitoring is critical.

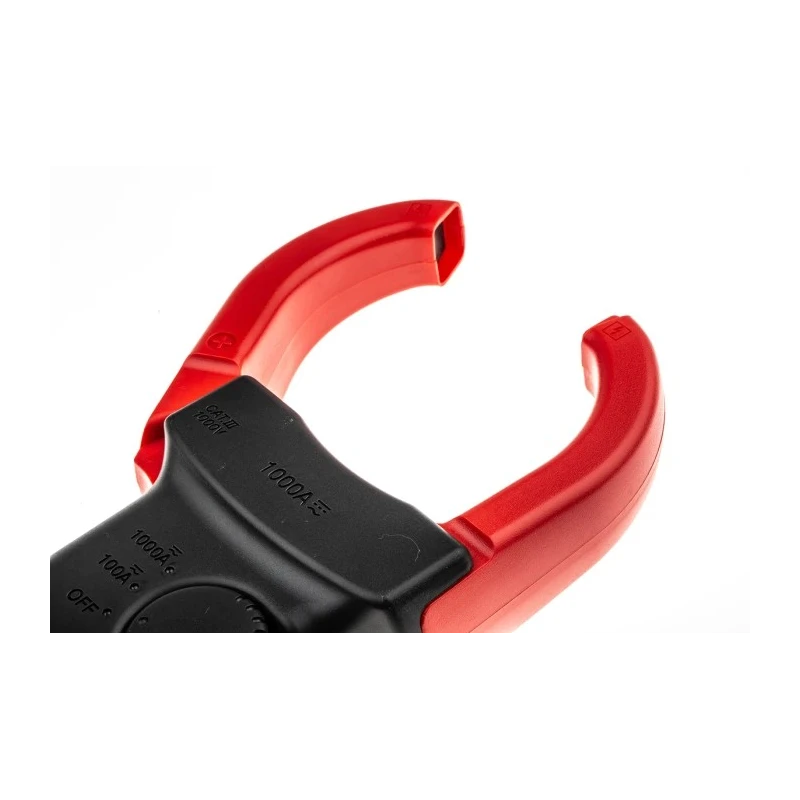

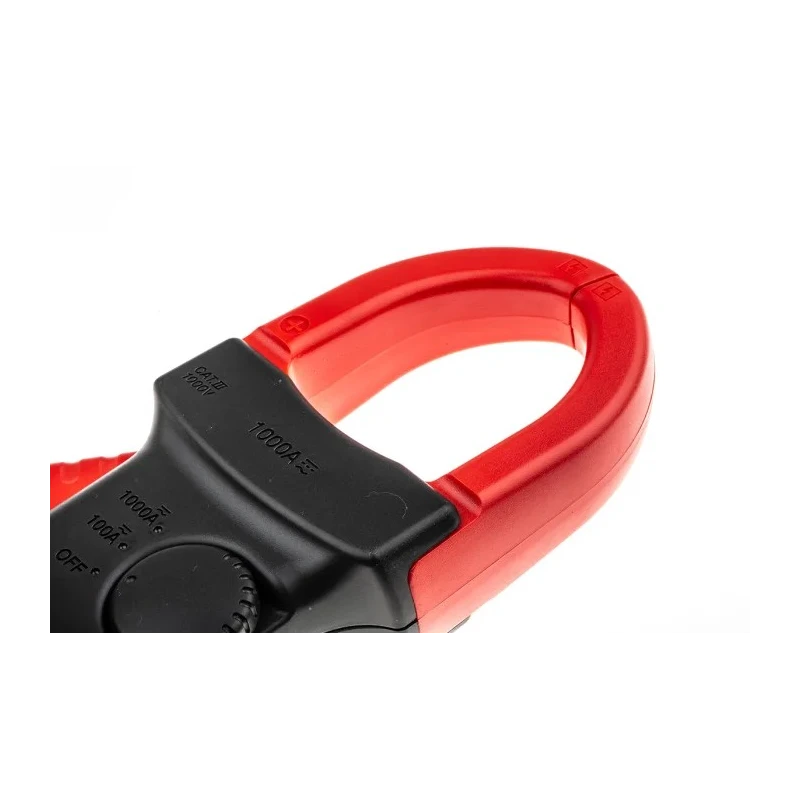

The clamp meter features a jaw opening of 51 mm that allows you to clamp around large conductors without interrupting the electrical circuit. This non-intrusive measurement capability provides safety and convenience during electrical diagnostics and maintenance tasks.
Equipped with a non-contact voltage detector, this device enhances user safety by allowing quick detection of live voltages before making contact. The clamp meter maintains a high AC current measurement accuracy of ±1.9 % reading plus 7 A, enabling precise troubleshooting and performance verification.
The robust, ergonomic housing is designed to withstand physical impacts and frequent use in challenging environments. The unit is powered by a 9 V alkaline battery which supports up to 66 hours of operation, ensuring long-lasting and continuous measurements on site.
This RS PRO clamp meter complies with IEC 1010 safety standards, providing assurance for safe and reliable use in high-voltage measurement environments up to 1000 V CAT III. Its compact size (232 mm length, 32 mm height, 9 mm width) and lightweight design (420 g) make it portable and user-friendly for technicians and engineers.
Measures AC and DC current and voltage safely up to 1000 A and 1000 V. Non-contact voltage detection enhances electrical safety. Durable and ergonomic design for industrial environments. Long battery life and reliable performance.
Compliant with IEC 1010 safety standards ensuring high reliability.
This clamp meter is ideal for electrical testing, industrial maintenance, HVAC system diagnostics, manufacturing quality control, and laboratory measurements. It helps professionals achieve accurate current and voltage measurements while maintaining safety standards.
Explore our wide range of measurement and testing instruments at EnvMart for comprehensive solutions.
Explore more products in our Clamp Meters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This clamp meter can measure AC and DC currents up to 1000 A.
It supports voltage measurements up to 1000 V for both AC and DC.
The AC current accuracy is ±1.9% of the reading plus 7 A.
The clamp meter features a maximum jaw opening of 51 mm, allowing it to accommodate large conductors.
It operates reliably between 0°C and 50°C.
It is powered by a 9V alkaline battery, which provides up to 66 hours of battery life.
It complies with CAT III safety standards, suitable for high-voltage environments up to 1000 V.
The dimensions are 232 mm in length, 32 mm in height, and 9 mm in width, with a gross weight of 420 g.
Yes, it is equipped with a non-contact voltage detector for enhanced electrical safety.
It can measure both AC and DC currents, as well as AC and DC voltages.
It is suitable for industrial, electrical, HVAC, manufacturing, and laboratory applications where reliable current monitoring is critical.
It complies with IEC 1010 safety standards, ensuring safe use in high-voltage environments.
